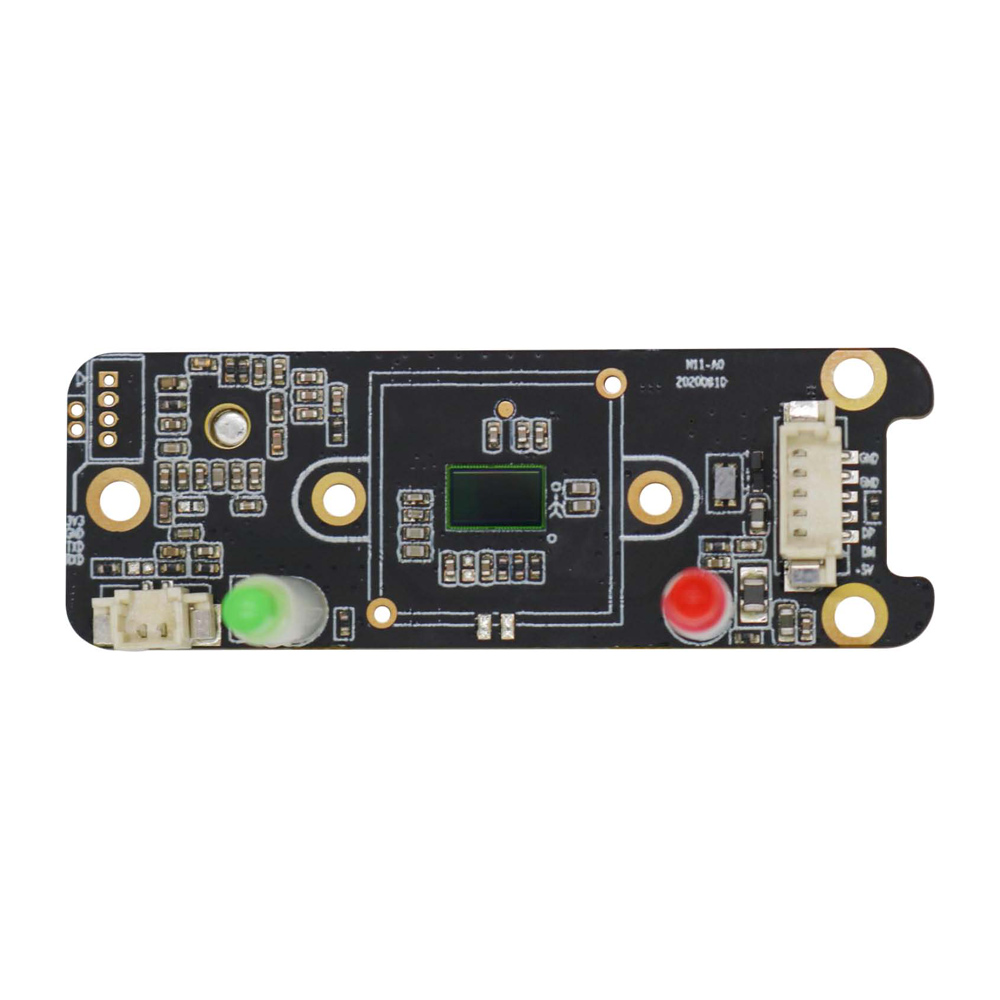

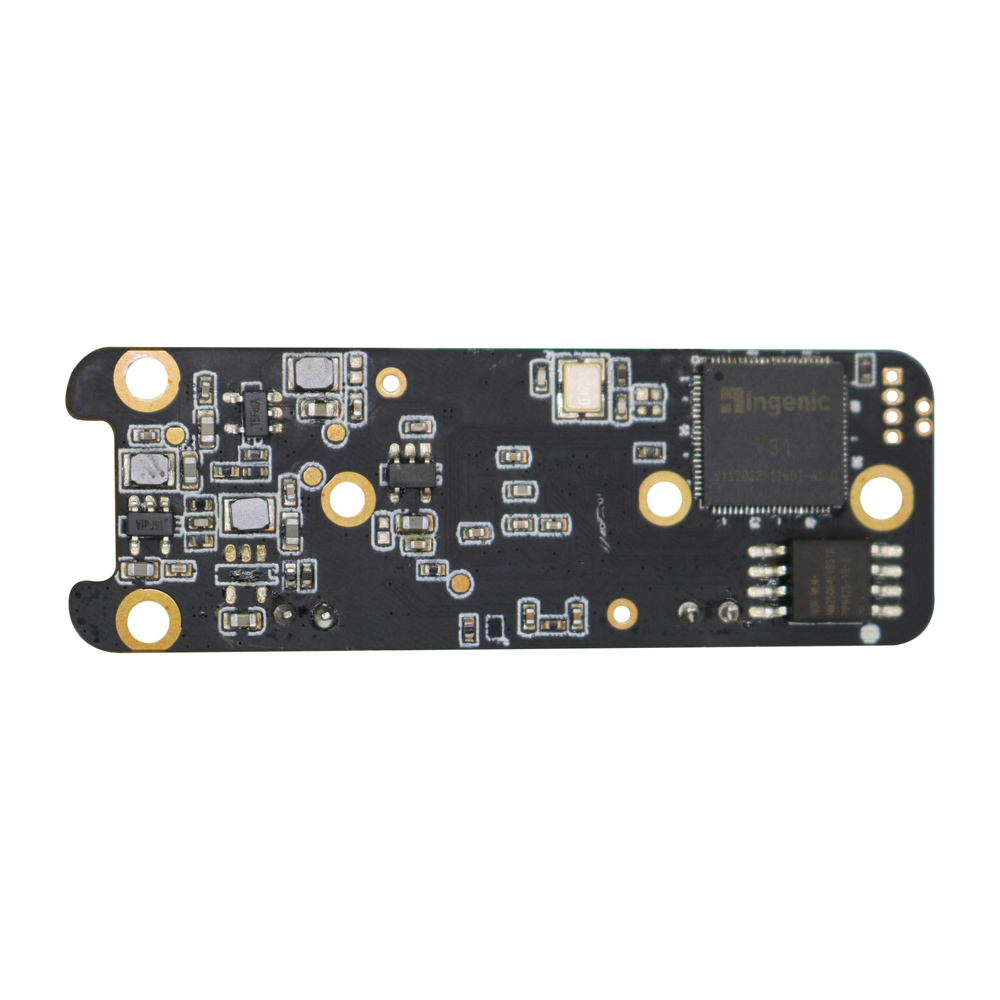

Cost Effective 2MP 1080P T31 1/2.9" F23 USB UVC Camera Module Board
$6.90
Availability:
In stock
Out of stock
Variations
Product Description
1/2.9" 2MP 1080P F23 image sensor;
Standard UVC UAC protocol, free driver, plug and play;
Compitable with Windows / Android / Linux OS;
Supports MJPG, YUY2, H.264 compress format, Max 2MP 30fps resolution;
Can be used for online teaching, live broadcast, video conference, video chat, smart TV external equipment
| Imaging Sensor | 1/2.9" F23 |
| Effective pixels | 1920 (H) ×1080 (V) |
| Resolution | 2MP |
| SNR | >50dB |
| video stream | MJPG: 1920*1080 / 1280*960 / 1280*720 / 800*600 / 640*480 / 640*360 YUY2: 1920*1080 / 1280*960 / 1280*720 / 800*600 / 640*480 / 640*360 H.264: 1920*1080 / 1280*960 / 1280*720 / 800*600 / 640*480 / 640*360 |
| Frame rate | 25fps / 30fps |
| Electronic shutter | auto |
| Protocol | UVC/UAC |
| Video output | USB video stream |
| Working voltage | DC5V / 130 mA ±6 mA |
| Working environment | - 20°C ~ 60°C |
