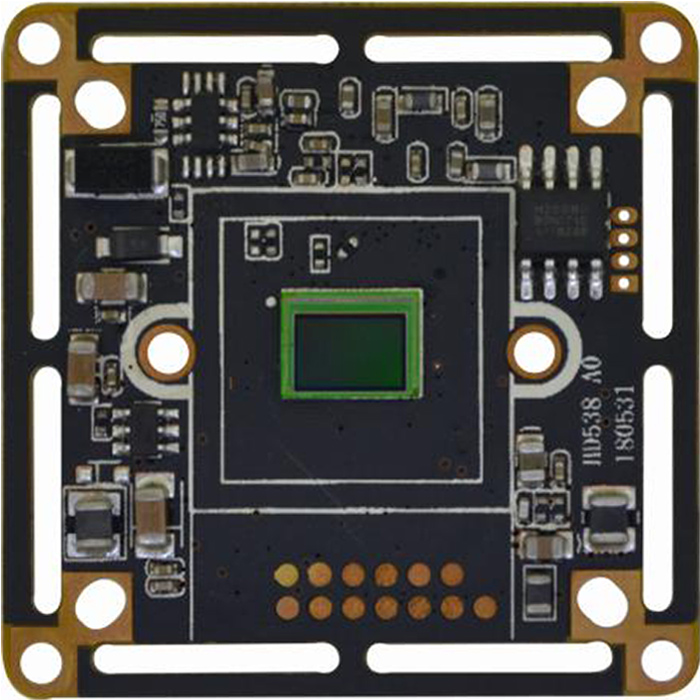

1/2.9" Sony IMX323 1080P 2MP Fullhan FH8536H AHD TVI CVI Analog 4 in 1 CCTV security Camera board

Technical Characteristics:

1. IMX323 mega HD image sensor, AHD/TVI/CVI/CVBS output, effective resolution is up to 1920*1080;

2. OSD support 9 different languages, Saturation/White balance, 3D-NR/image enhancement/privacy masking/motion detection etc.
3. Adopt FH8536H DSP, with OSD function (color/white&black, PAL/NTSC switch);
4. AGC type, day-night effect is distinct, various day-night modes can be switched by OSD menu; Support no CDS-in
5. Can support UTC function, 4-in-1 output, OSD adjust freely.
6. Power (600W) video (2KV) dual lightning protection design, OSP antioxidant PCB, small size 32*38 double board design.

Product parameters
Image Sensor	1/2.9" Sony IMX323
Effective Pixels	1920(H) * 1080(V)
Effective resolution	2MP
Signal system	PAL/NTSC (Switched by OSD)
Day-night mode	External (default) / Auto / Color / White&amp black (OSD switch)
S/N ratio	≥50dB
Minimum illuminaiton	0.1LUX
BLC	AUTO
(AES) Auto electronic shutter	AUTO / 1/50(1/60)-1/50,000sec
(AWB)Auto white balance	AUTO
IR control voltage input	OFF(DC 0V) / ON(DC 3-8V)
OSD language	English/ Simplified Chinese/Traditional Chinese /French  / Spanish/ Russian/ Portuguese/ Japanese
Video output	AHD / TVI / CVI / Analog (CVBS)
Video record occupation	1minute about 38MB (4mm lens)
Power consumption	DC12V / 59mA ± 6mA (wide voltage 9V-18V)
Working temperature	-20°C to 50°C

OSD Function description ：

• PAL / NTSC: Press Enter button to Main Menu, press (Video setting) to choose (Video first time press right button is NTSC, second time is PAL, press left button to return, press Enter button to save. (The default output is PAL)

•


  4-in-1 Switch: Press Enter button to main menu, press (Video setting) to choose (Video syst). First time press right button (shortly press) is CVBS, second time is CVI, third time is CVI, fourth time is AHD. Press (Return) to save &amp  exit. (The default output is AHD)

•


  4-in-1 Switch (shortcut switch): Power on (without enter into main menu), long press the up button for 5 seconds comes to CVBS  down button is CVI  left button is AHD mode  right button is TVI. (The above standard is defaulted mode). (The default output is AHD)

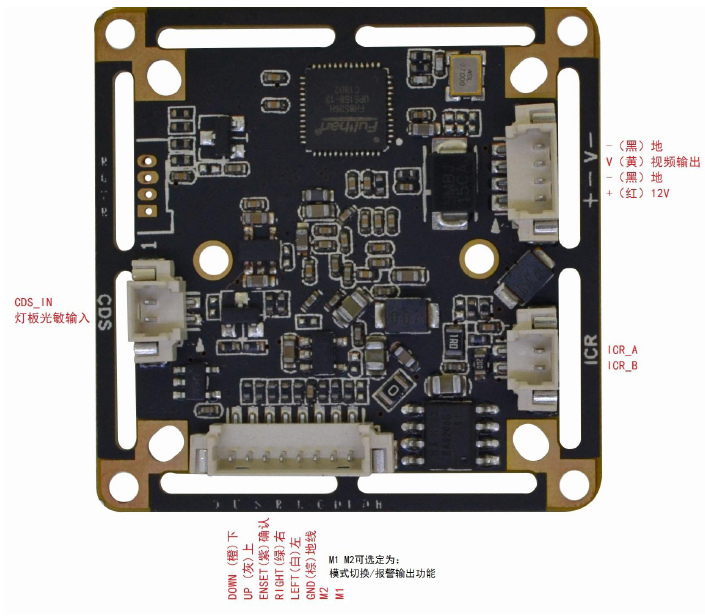

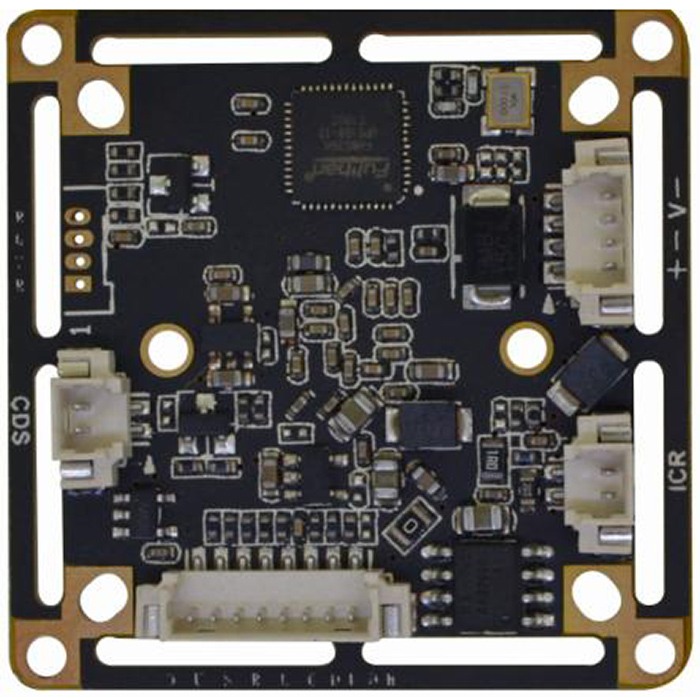

Pin definition:

OSD Menu Port

    D Down (Orange)

    U Up (Gray)

    E Enter (Purple)

    R Right (Green)

    L Left (White)

    G GND (Brown)

    M1 M2 Can set to Mode switch or Alarm Output

Power video port (1.25mm pitch 4 pin)

    V    Yellow

    -/G    Ground

    +    Power+

CDS     LED board photoresist

ICR    IR-CUT dual filter switch

Video output switch:

After power on, not enter OSD menu.

Long press UP button for 5 seconds to switch to CVBS mode;

Long press DOWN button for 5 seconds to switch to CVI mode;

Long press LEFT button for 5 seconds to switch to AHD mode;

Long press RIGHT button for 5 seconds to switch to TVI mode;
