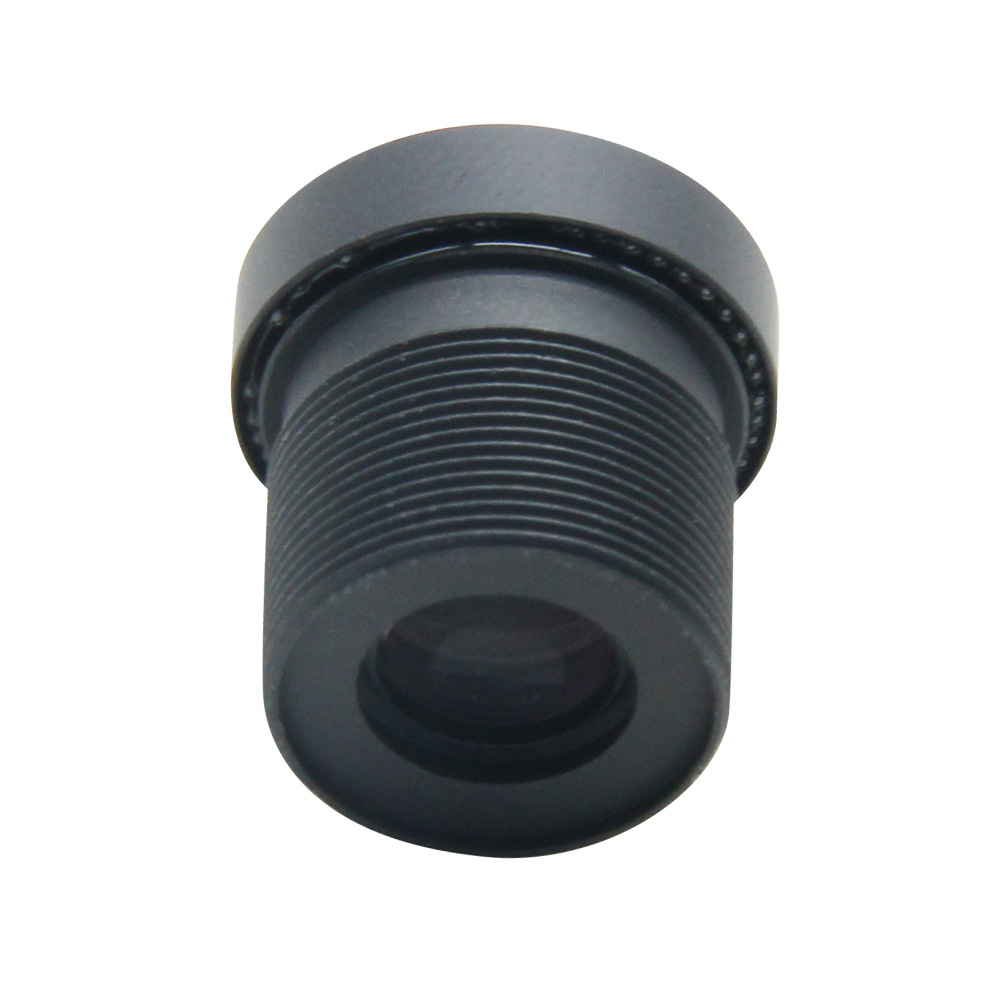

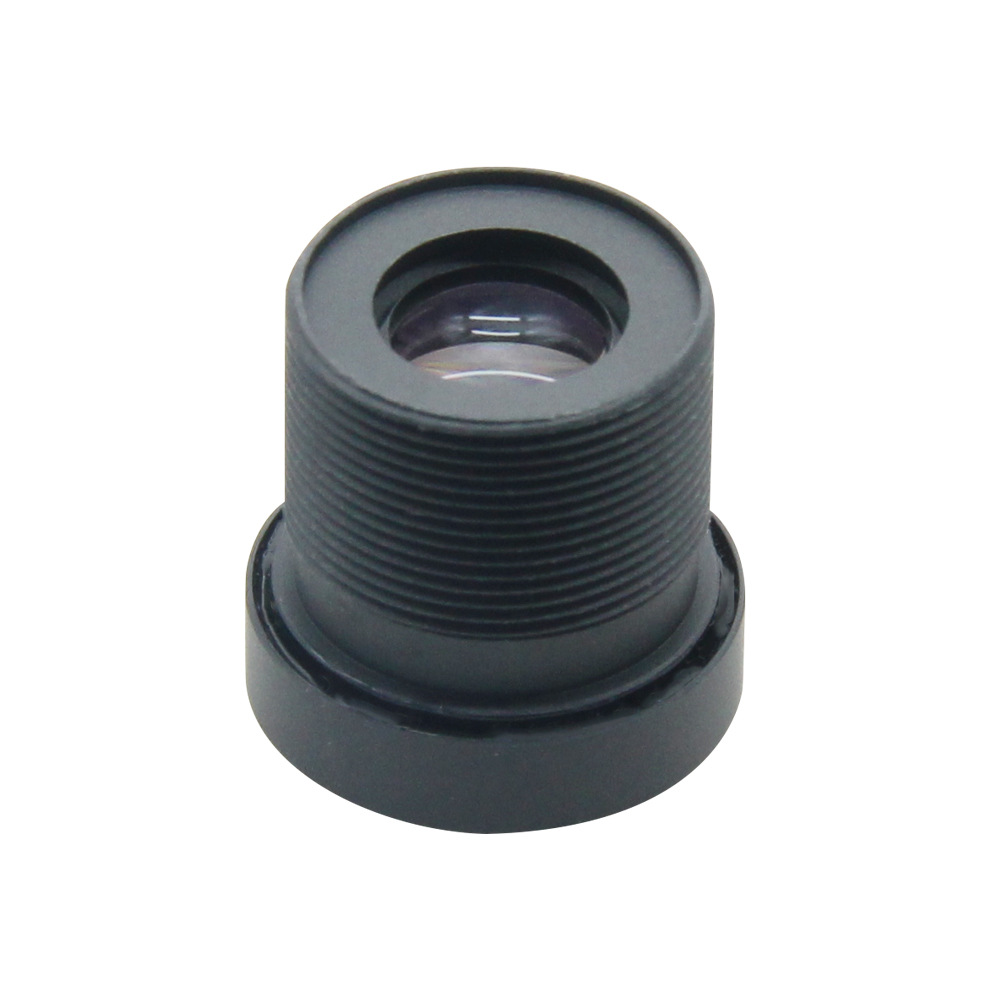

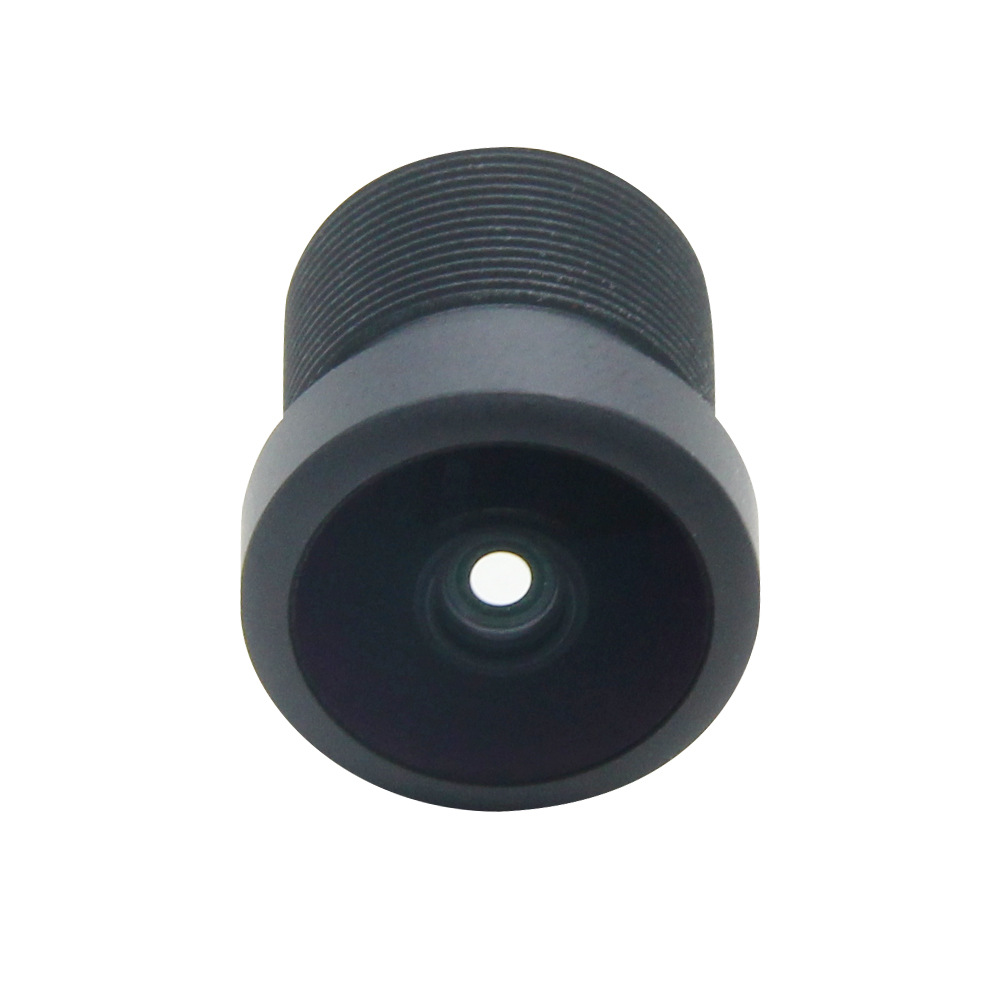

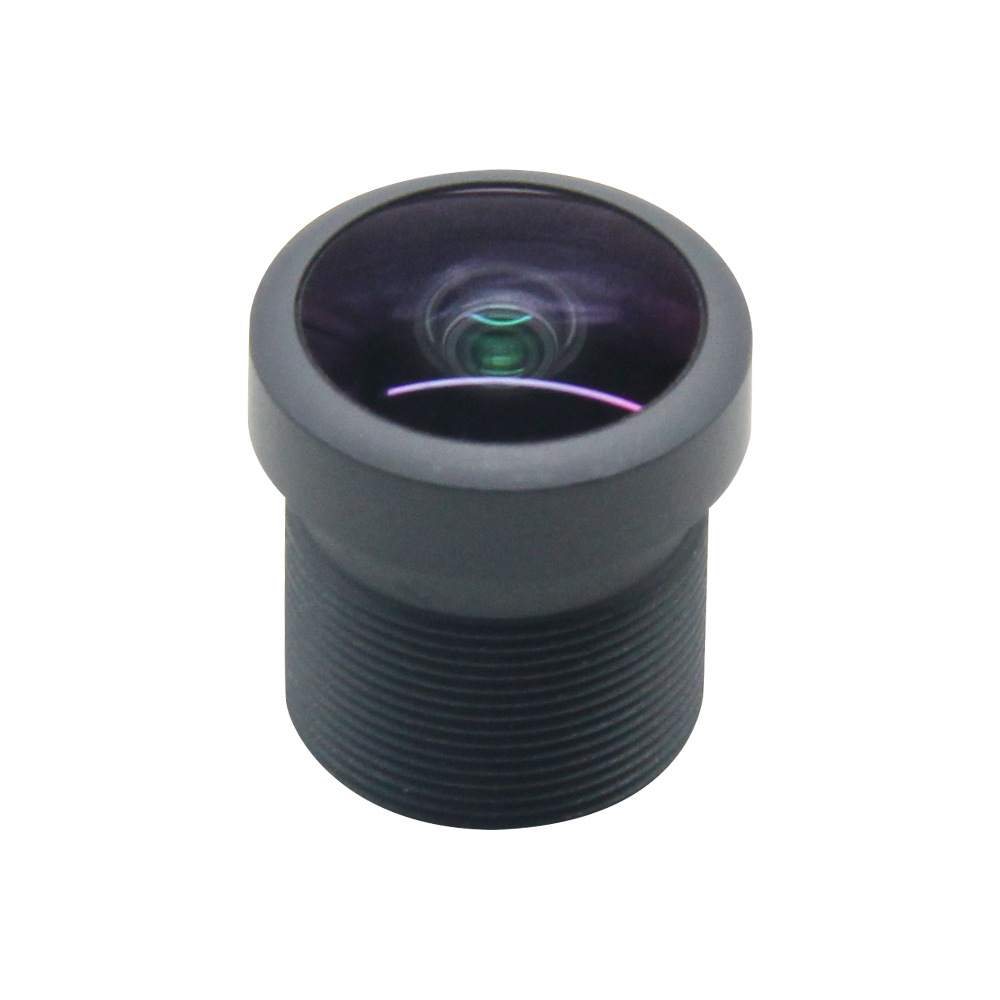

LF3.47-M12-13MP 13MP 4K 3.47mm Lens 168degree M12 Wide angle Camera lens 1/1.7" IMX226
$13.50
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
| Resolution | 13 Megapixel | ||
| Sensor Type | 1/1.7" IMX226 | ||
| Focal length | 3.47mm | ||
| Aperture | F2.2 | ||
| Mount | M12 | ||
| Field Angle D×H×V(°) | 1/1.7" (IMX226) | 1/2" (IMX385) | |
| D | 168° | 145° | |
| H | 127.8° | 124° | |
| V | 93.6° | 68° | |
| TV Distortion | <20% | <17% | |
| Relative Illumination | >42(±5)% | >50(±5)% | |

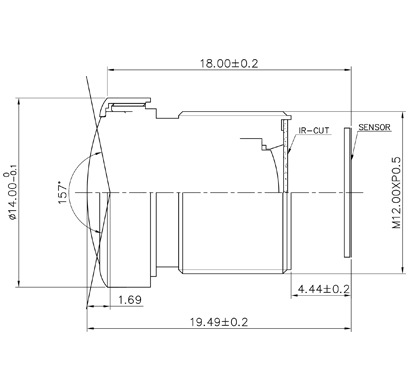

| Dimension | Φ14×19.49mm | ||
| Chief Ray Angle | <19±3° | <18±3° | |
| Flange BFL | / | ||
| MBF | 4.44±0.2mm | ||
| Structure | 4G2P+1 IR | ||
| Operation | Iris | Fixed | |
| Focus | / | ||
| Zoom | / | ||
| Operating temperature | -30℃～+75℃ | ||
