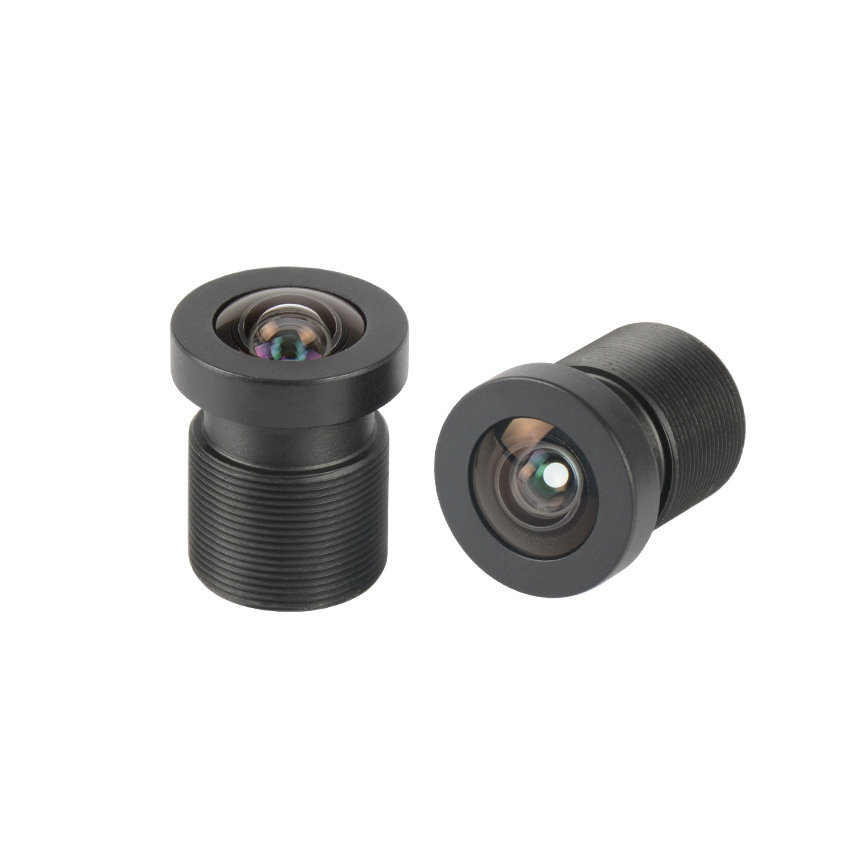

LF3.56-M12-16MP 1/2.3" 3.56mm folcal length 16MP M12 lens with 650nm IR-CUT filter Φ7.86mm F2.5
$10.23
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
16MP high resolution design, central-edge consistent imaging, suitable for 1/2.3" sensor IMX117
Excellent coating process and multi-coated lenses restore the true colors.
| Model: | LF3.56-M12-16MP | |||||
| Parameter of Lens | ||||||
| Pixel | 16MP | |||||
| Image Format | 1/2.3″ | |||||
| Focal Length | 3.56mm | |||||
| Aperture | F2.5 | |||||
| Mount | M12×0.5 | |||||
| Field Angle D×H×V(°) | " ° | 1/2.3 | ||||
| D | 105 | |||||
| H | 88 | |||||
| V | 69 | |||||
| Optical Distortion | -16.5% | |||||

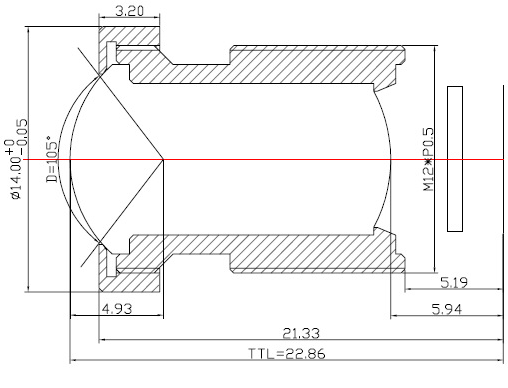

| Dimension | Φ14×22.65mm | |||||
| Flange Back Focal Length | 5.19mm | |||||
| Back Focal Length | 5.94mm | |||||
| CRA | <9.0 | |||||
| Element | 7E+IRCUT | |||||
| Operation | Iris | FIX | ||||
| Focus | / | |||||
| Zoom | / | |||||
| Operating temperature | -20°C~+60°C | |||||
| Size | ||||||
| ||||||
| Size tolerance(mm) | 0-10±0.05 | 10-30±0.10 | ||||
| Angle tolerance | ±2° | |||||
