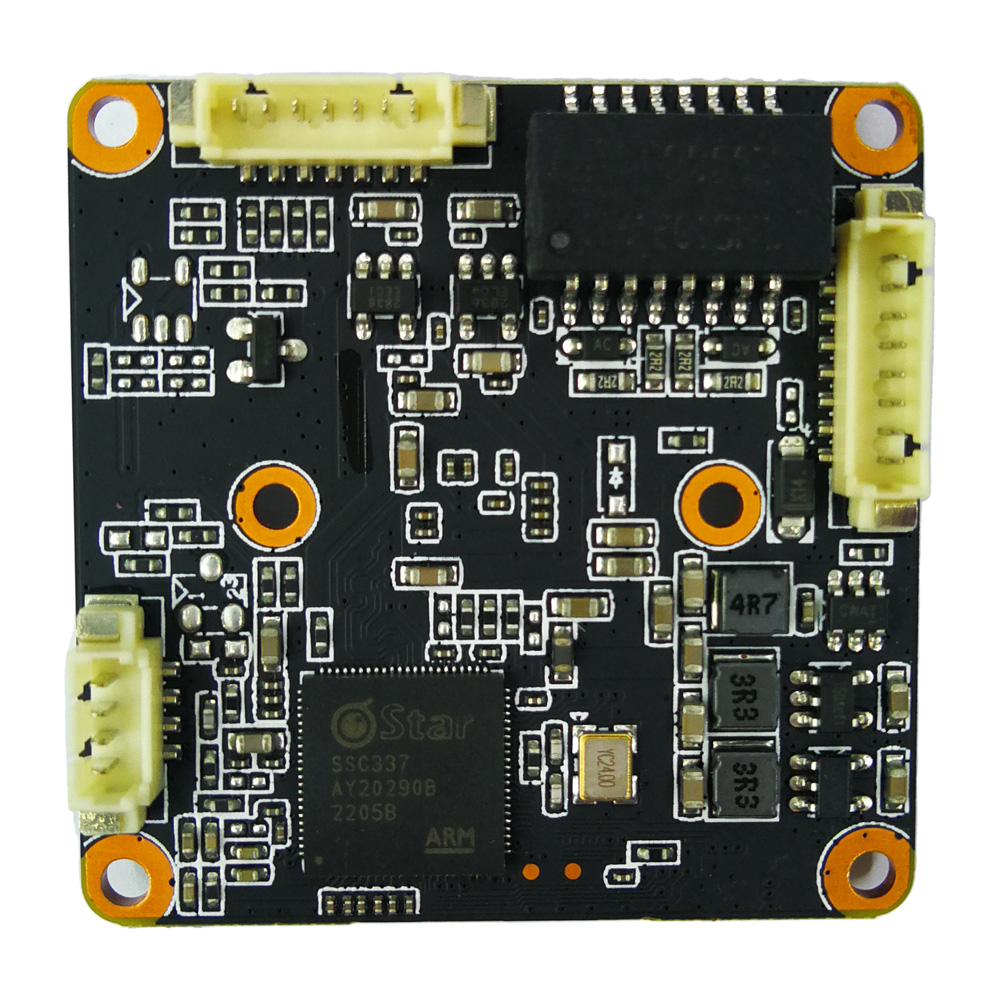

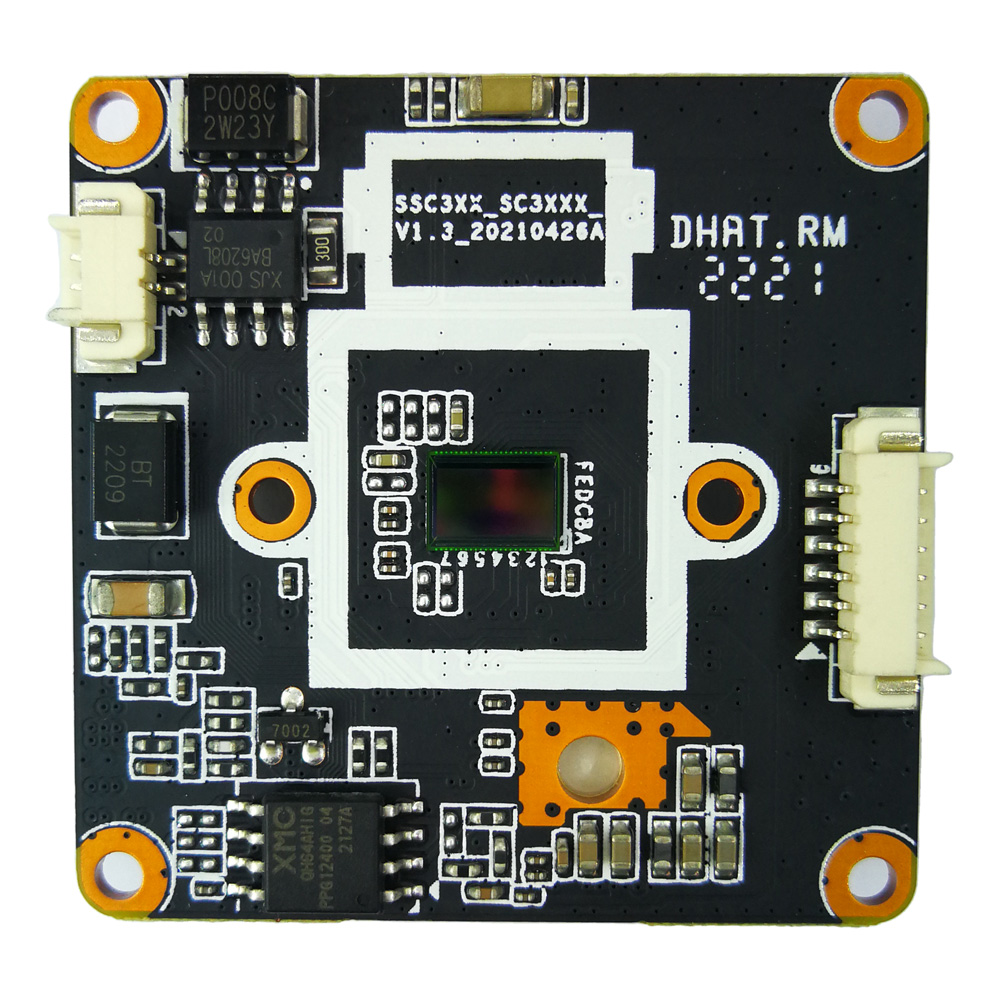

1/2.9" GC4653 4MP H.264 H.265 security CCTV IP Camera Module board
$9.20
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Technical Characteristics:
Support 2 channels of video and 1 channel of audio, two channels independent, 20 frames per second active video (4MP)
H.264/H.265/H.265+ video compression standard, G.711/G711A audio compression standard
Embedded Web Server, fully supports Internet Explore monitoring, configuration, and upgrade
Two-way audio real-time transmission on the Internet, video frame rate is automatically adjusted according to bandwidth
Support variable bit rate, while setting the video image quality, you can also limit the video image compression code stream
Support DHCP, easy to realize dynamic IP address
Video bit rate 50Kbps-6Mbps continuously adjustable, frame rate (5-20) continuously adjustable
Support JPEG capture
Support mobile detection (settable area and sensitivity)
10/100M Ethernet interface support
Support sound linkage alarm and voice customization
Support regular maintenance function
Support IP filtering
Support OSD customization
Support client remote monitoring software
Support mobile phone monitoring (P2P)
Support Safari, Chrome, FireFox, Opera, Edge browser
Support soft photosensitive infrared, soft photosensitive white light (warm light), ordinary infrared
| model | E317S |
| SOC | SigmaStar SSC337 |
| Image sensor | 1/2.9" low illumination GC4653 |
| Minimum illumination | Color 1.0 Lux@F2.0; Black & White 0.01Lux@F2.0 |
| Day & Night | Integrated UR-CUT driver, support day/night conversion, support soft photosensitive |
| Video processing | PAL/NTSC video standard chooseable, support AWB, support 3D DNR, support WDR, support anti-face overexposing, support defog function, H.264/H.265/H.265+ coding format, achieve ultra-low storage, code rate/frame rate adjustable |
| Image resolution | Main stream: 2560*1440@20 FPS, 2304*1296@25fps; 1080P / 720P @30fps sub stream: D1 / VGA / 640*360 @30fps support CBR/VBR |
| Audio processing | Audio linear input/output, G711U/G711A encoding, support two-way voice intercom |
| Network interface | RJ45, 10/100m adaptive Ethernet interface, 2KV lightning protection design |
| Protocol support | Support HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional |
| storage | Not available |
| IO interface | Supports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program |
| LED Board interface | Support active mode and passive mode, need compatible light board to work together |
| IRCUT interface | Integrated IRCUT switching circuit, Auto / external / manual / timer to control IRCUT day/night mode |
| Business functions | IE6.0 and above (device embedded Web Server) browser Motion detection and OSD adjustable Support safari, Chrome, FireFox, Opera, Edge browsers Support access web page from mobile phone P2P cloud services (danale) IP filters Active infrared function automatic zoom (optional) PTZ linkage support voice alarm linkage and customizable alarm sound |
| Conventional parameters | DC12V/POE(Optional), 1.4W Max, 38 (L) *38 (W) *24 (H) mm (without lens), 0.06kg |
| Working temperature | -30~65 ℃ |
Please contact us for detailed datasheet, softwares.
