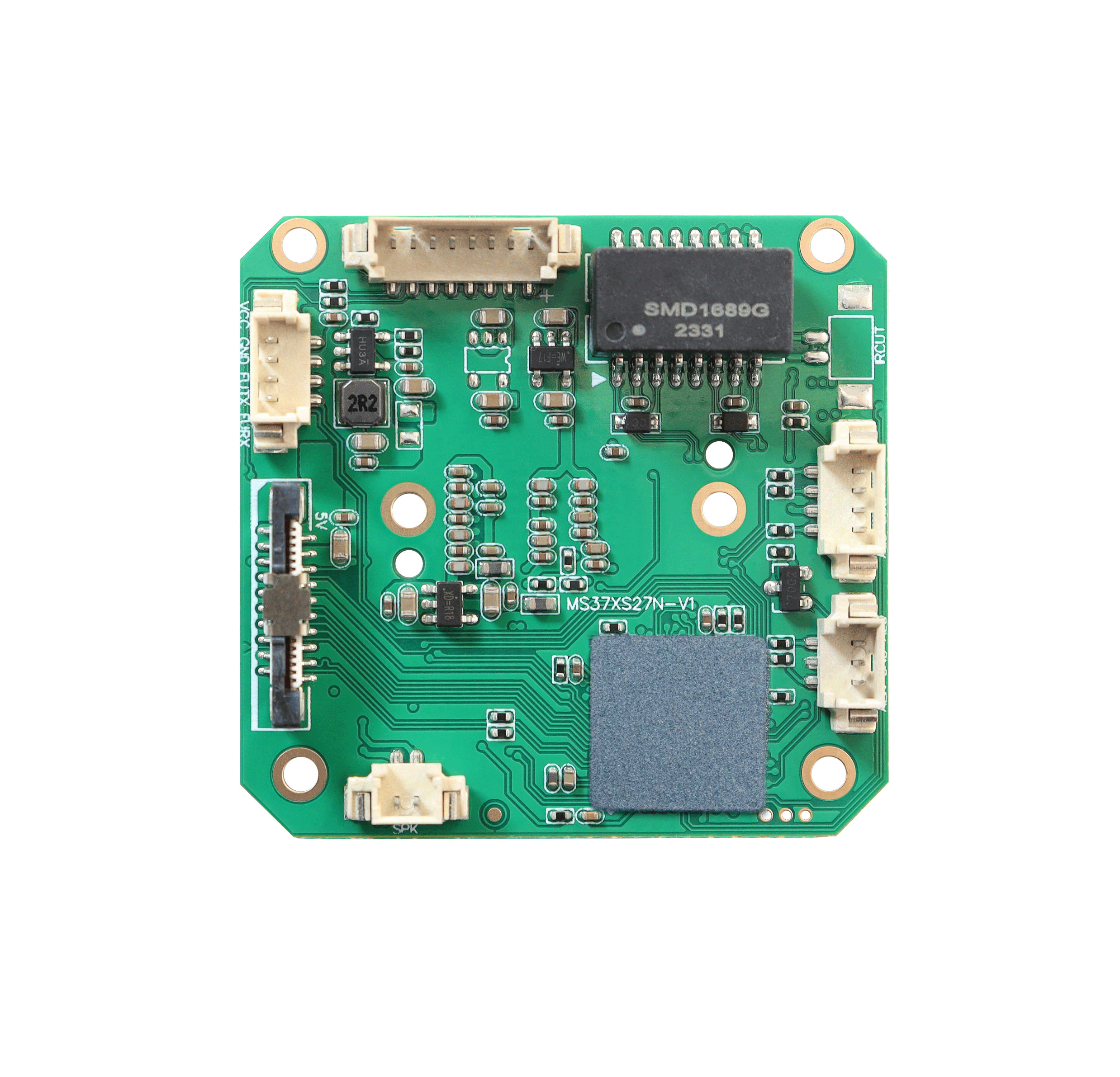

2MP IP Camera Module 60FPS IMX307 with WDR HDR Great Performance Mstar DSP
$11.70
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
1/2.8" Sony 2MP super low lux CMOS with new ISP, single dimension with 42mm*42mm. Support IR Light, Warm/White Light, Dual Light. H.265+H.264 video coding. Suppor t 0.5T Algorithms, and customized multiple algorithms. Support dual stream. Mainstream is 1920*1080, Sub-stream is D1, enabled with ONVIF protocol and full NETCOM. Frame rate can reach 60fps. | ||
Model No. | H2D | |
Chip | New ISP + 1/2.8" 2MP SONY CMOS | |
Low Lux | Color 0.05Lux@F1.2; B&W0.005Lux@F1.2; | |
S/N | ≥50db(AGC OFF) | |
DWDR | DWDR＞80db | |
Audio Input | 1CH MIC Input | |
Audio Output | SPK output(Max support speaker spec 3W 4Ω) | |
LED Type | CDS IR LED, White Led, Warm Led(Support PWM) | |
IO Function | t IRCUT,1CH RESET, Alarm In, Alarm Out, Reserved Port | |
Others | Extra motorized zoom auto focus lens optional | |
Coding Format | H.265, H.264 | |
Mainstream | 1920*1080, 1-60fps; 1280*720, 1-60 fps | |
Sub-stream | 704*576, 800*448, 640*480, 640*360, 352*288, 1-60 fps | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | Support channel name, data&time, resolution&characters adding | |
Data Record | Video, picture | |
Storage Method | Cycling recording, Alarm recording | |
Alarm Transfer | Browser, management software, IO output | |
Protocol | ONVIF | |
Browser | Support IE6.0 and above(Internet web server) | |
Mobile | Support IOS, Android | |
Temperature | -20℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC12V / 120mA | |
DC12V / 120mA | 1.5W | |
Dimension | 42* 40*10mm(38*38mm hole) | |
Weight | 17g | |
