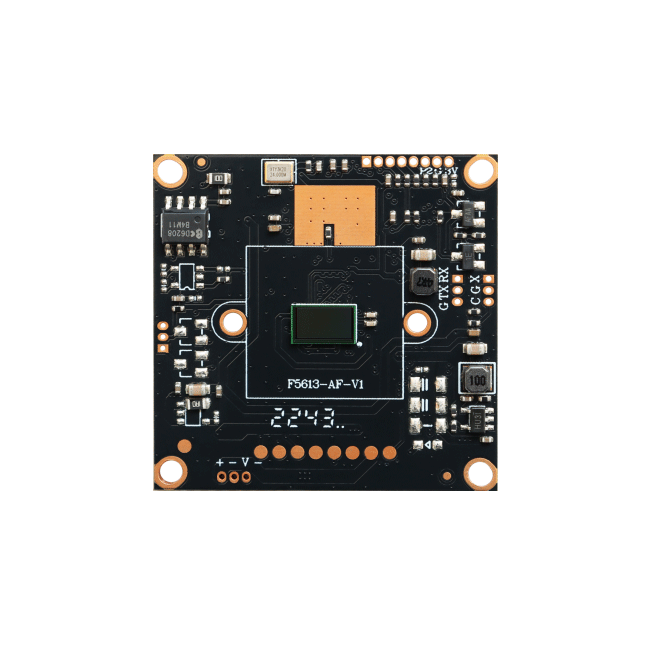

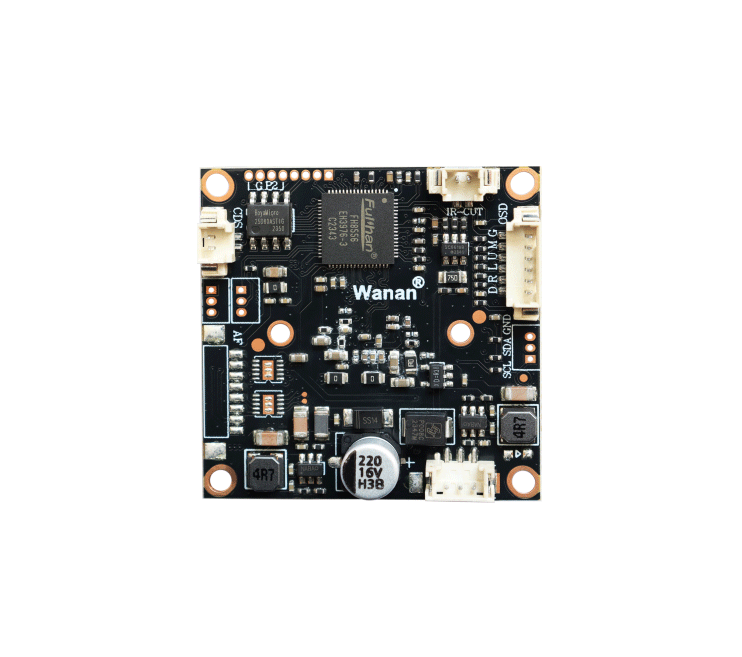

8MP Camera Module 4K High Quality Board PCB Coaxial Audio in TVI CVI GC8613+FH8556
$8.40
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model | V80 |
8MP 4 in 1 Coaxial HD Camera Module | |
Sensor | 1/2.7'' GC8613 |
System | PAL/NTSC |
Effective pixels | 3480(H)*2160(V) |
Illumination | 0.01Lux@(F1.2,AGC ON),0Lux with IR |
Shutter | AUTO |
D/N | EXT(Default)/Color/B/W |
Synchronously | Internal |
FPS | 800M PAL:12.5FPS/NTSC:15FPS |
Exposure | Exposure mode/BLC |
BLC | 0-7 can be controlled |
White balance | PRO/Grey |
D/N Mode | Contrast/Sharpness/Saturation/2D-DNR/3D-DNR |
Video setting | AHD/TVI/CVI/CVBS |
WDR | ON/OFF |
Exit | Save/Reset/Not save |
Language | CHN1/CHN2/FRA/ITA/SPA/POL/RUS/POT/JAP/KOR/ENG |
Operation temperature | -20℃ to 60℃ |
Operation humidity | Relative humidity less than 90% |
Power | DC12V(±20%)-150mA |
Dimension | 38*38*10.2(mm) |
OEM Service
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
