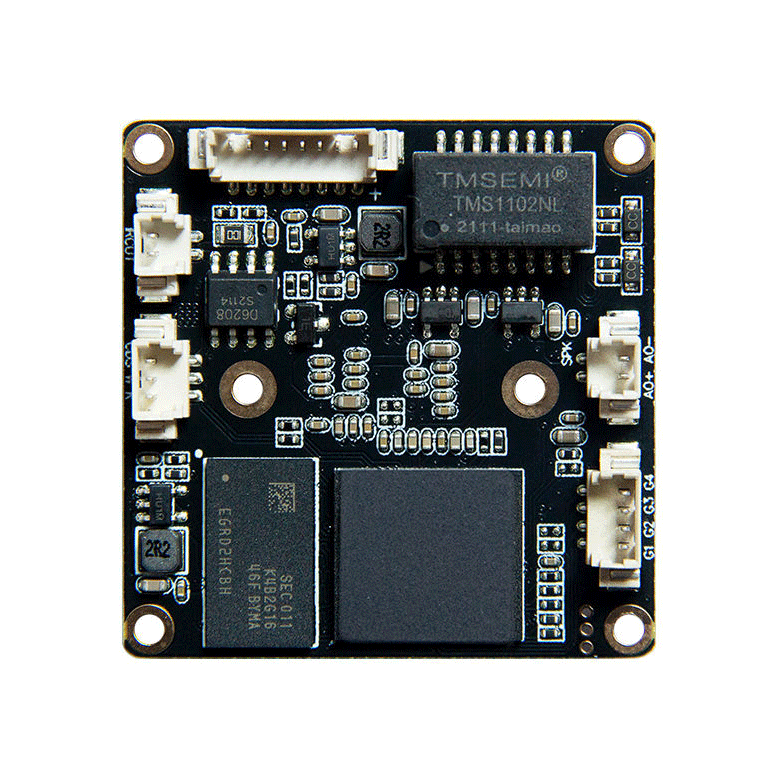

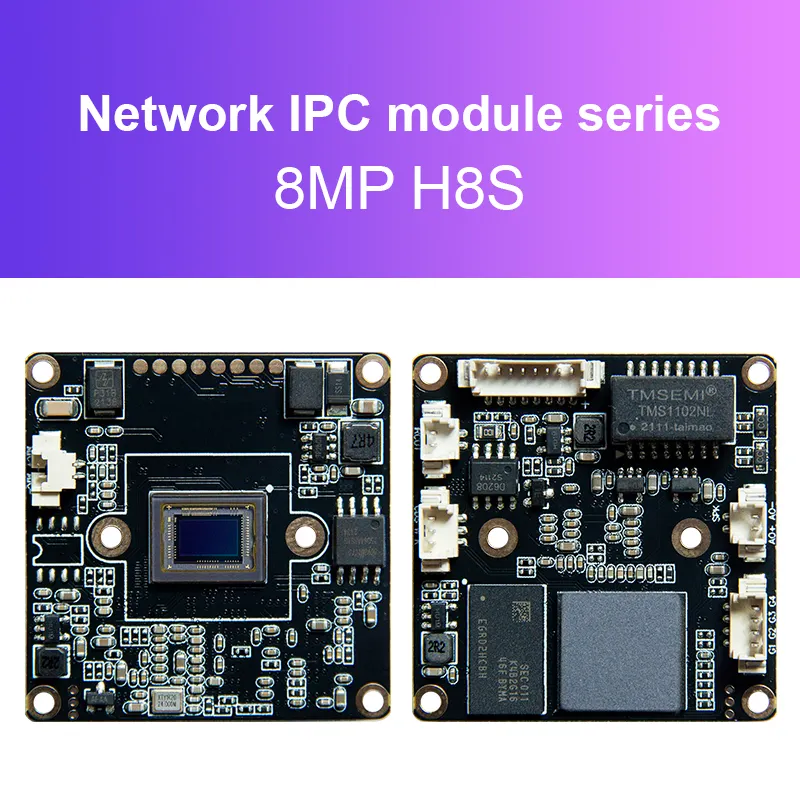

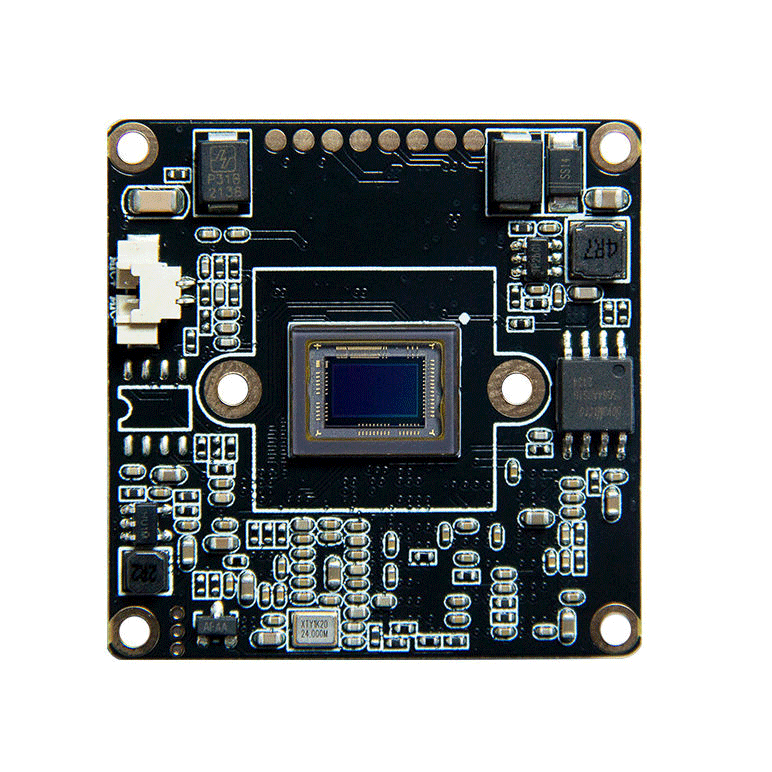

8MP IP Camera Module IMX415 Customized PCB Board Camera Board 4K CCTV Security IPC Board Camera PCB
$16.30
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | H8S | |
Module | FH8858V200+1/2.8"SONY 8MP CMOS IMX415 | |
LUX | COLOR 0.05Lux@F1.2;B/W 0.005Lux@F1.2 | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR；＞80db | |
Audio Input | 1CHC MIC Input | |
Audio Output | Audio cable output ,with expandable built-in power amplifier circuit | |
LED Board Function | LED Board Driving Circuit, Dual Light PWM | |
IO port | RESET, IR CUT, Alarm Input/Output | |
Others | Support AF Motorized Lens | |
Coding Format | H.265&H.264 | |
Mainstream | 3840*2160,1-15FPS/S | |
2880*1664、2560*1440、2304*1296、1920*1080、1280*720，1-15FPS/S | ||
Substream | 704*576,800*448、640*480、640*360、352*288，1-15FPS/S | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | Support channel name、Date、1 group of characters superposition adjustable | |
Data Record | Video,picture | |
Storage Method | Recycle and alarm video record | |
Alarm Transfer | Browser、management software、IO output | |
Protocol | ONVIF2.6、All Net Connect | |
Client Browser | Support IE6.0 and above browser、Client Browser | |
Mobile Client | Support IOS、Android | |
Temperature | -30℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC12V /150mA | |
Power | 1.8W | |
Size | 38* 38*10mm | |
Weight | 12g |
OEM Service
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
