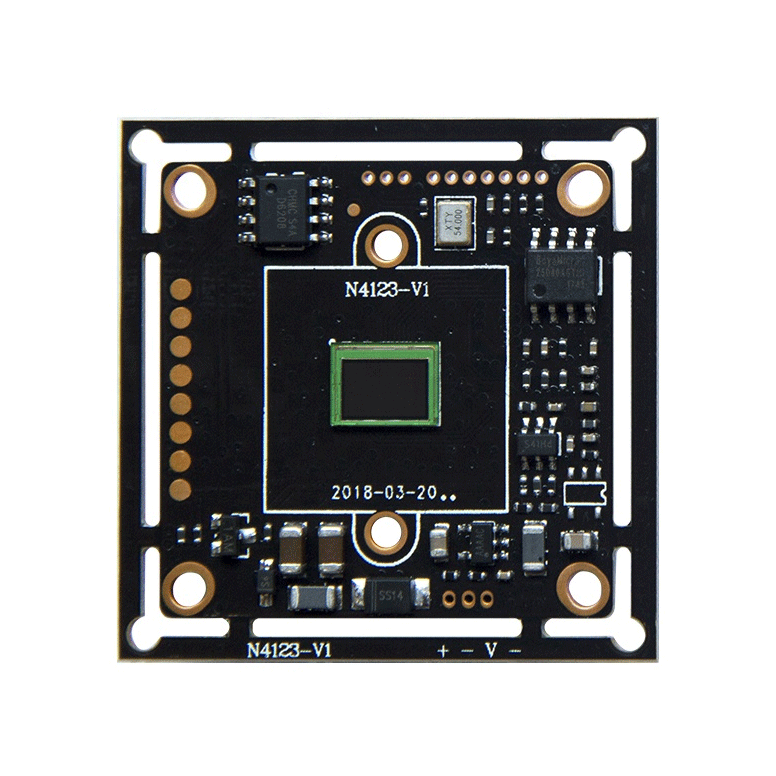

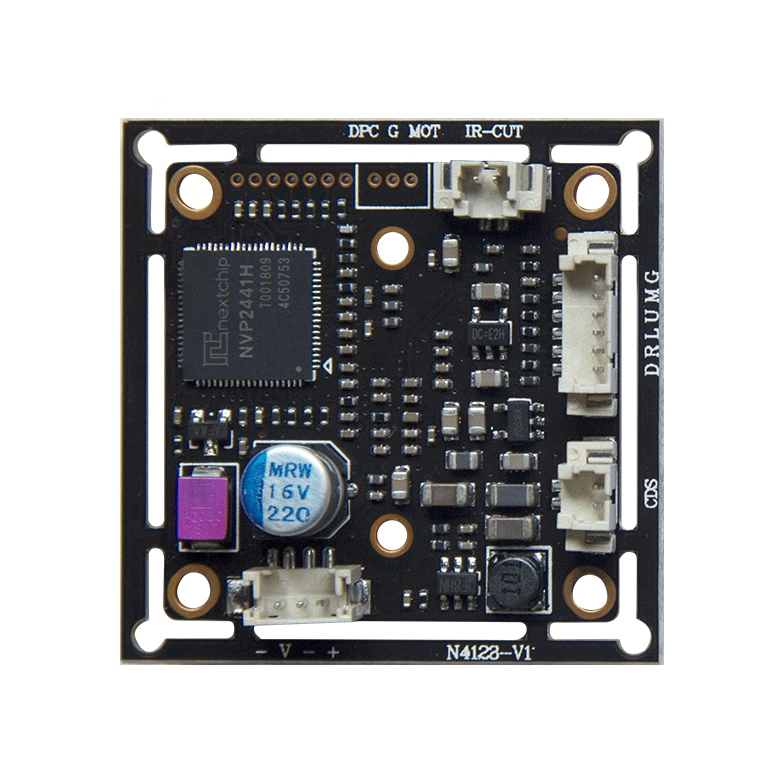

2MP AHD Camera Module IMX323 Sensor CCTV Chipsets 1080P Starlight Camera PCB Board AHD/TVI/CVI/CVBS
$7.50
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model | N4123-V1 |
Model No. | 1/2.9＂IMX323+NVP2441H |
Video Format | PAL/NTSC |
Effective Resolution | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N Mode | Color（Default）/External Control/Auto/B&W |
Synchronization | inter-sync |
Frame Rate | 1080P@25fps / 1080P@30fps |
Video Output | AHD/TVI/CVI/CVBS (Optional) |
Exposure | Electronic Shutter/AGC/Frame /Brightness/DWDR/Fogging |
D/N Mode | External Control/Auto/Color/B&W |
DNR Type | 2DNR/3DNR |
Video Setting | Contrast/Sharpness/Saturation/DNR/Video Format/DWDR |
Function | Equipment Name/Digital/Motion Detection /Privacy Block/Language/Bad Point Compensation/RS485 |
Exit | Save and Exit/Reset/Non-save |
Language | Chinese1/Chinese2/German/French/ Italian/Spanish/Polish/Russian/Portuguese/ Dutch/Turkish/English |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 70mA |
Size | 32*32/38*38(mm)（±0.3mm） |
OEM Service
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
