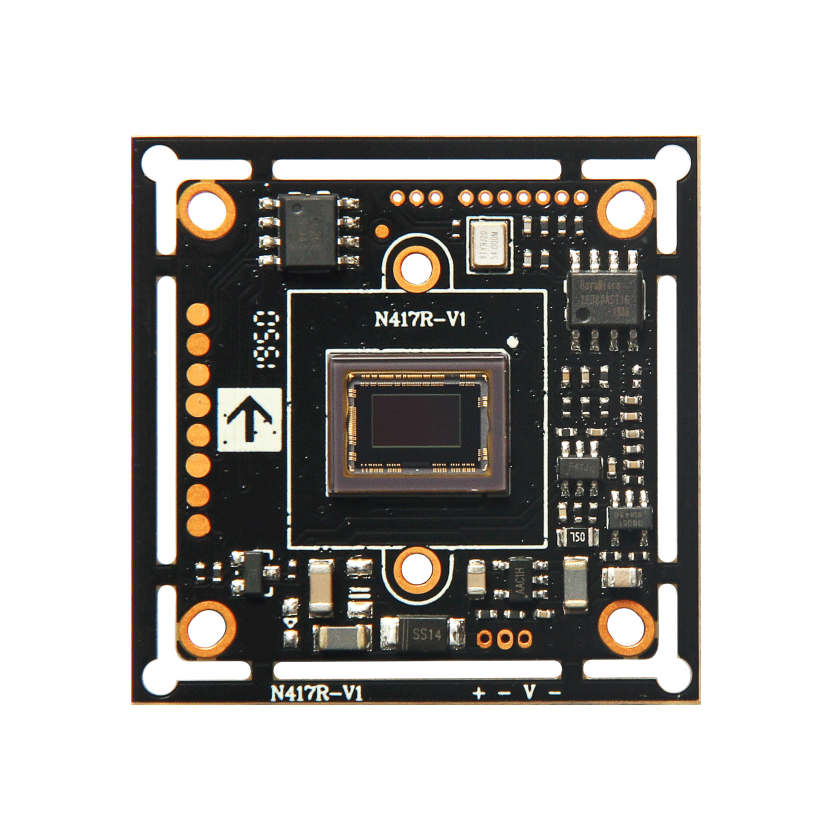

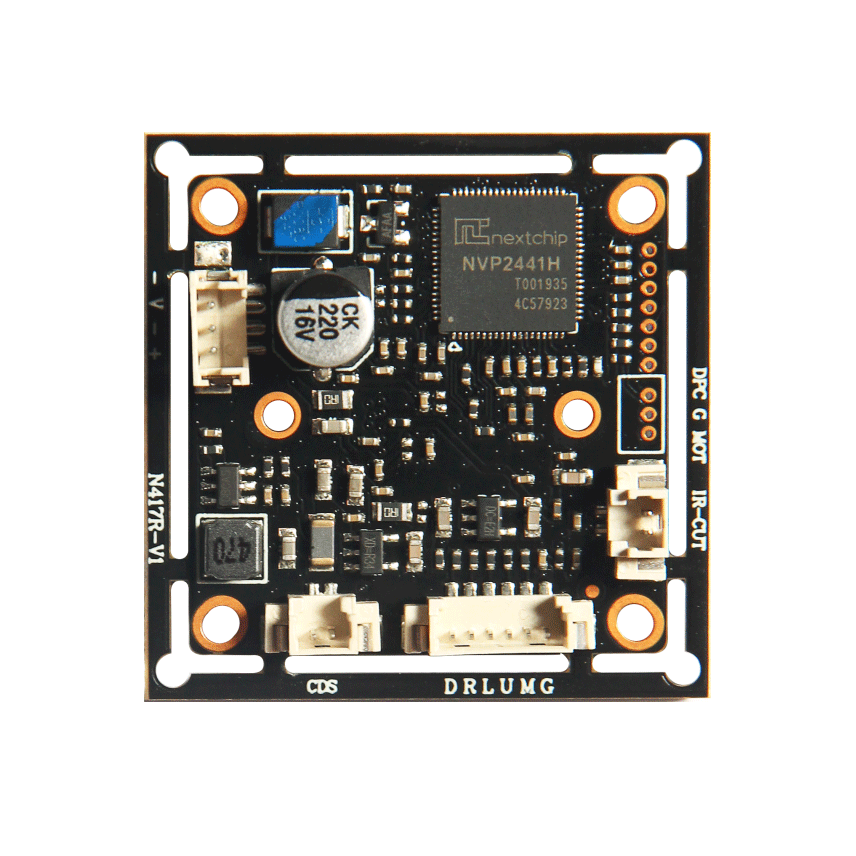

IMX307+NVP2441H 2MP AHD Camera Board Starlight Low Lux 3DNR Analog Camera PCB Board Support Customization
$7.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model | N417R-V1 |
Model No. | 1/2.8＂IMX307LQR+NVP2441H |
System | PAL/NTSC |
Effective Resolution | 1920(H)x1080(V) 2MP 16:9 |
Illumination | 0.1Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N Mode | External Control（Default）/Auto/Color/B&W |
Synchronization | Internal |
Frame rate | 1080P@25fps / 1080P@30fps |
Signal | AHD/TVI/CVI/CVBS (Optional) |
Exposure | Electronic Shutter/AGC/Frame /Brightness/DWDR/Fogging |
Back-light Mode | Close/Back-light Compensation/Strong Inhibition |
W/B Mode | Auto/AWE/Indoor/Outdoor/Manual /AWB |
DNR Type | 2DNR/3DNR |
Video Setting | Contrast/Sharpness/Saturation/DNR/Video Format/DWDR |
Function | Equipment Name/Digital/Motion Detection /Privacy Block/Language/Bad Point Compensation/RS485 |
Exit | Save and Exit/Reset/Non-save |
Language | Chinese1/Chinese2/German/French/Italian/Spanish/Polish/Russian/ Portuguese/Dutch/Turkish/English |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 80MA |
Size | 32*32/38*38（mm） |
OEM Service
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
