5MP IP Camera Board 30fps 1/3" Starlight CMOS Support IR/Warm/Dual Light 0.5T algorithm H.265+H.264
$7.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description

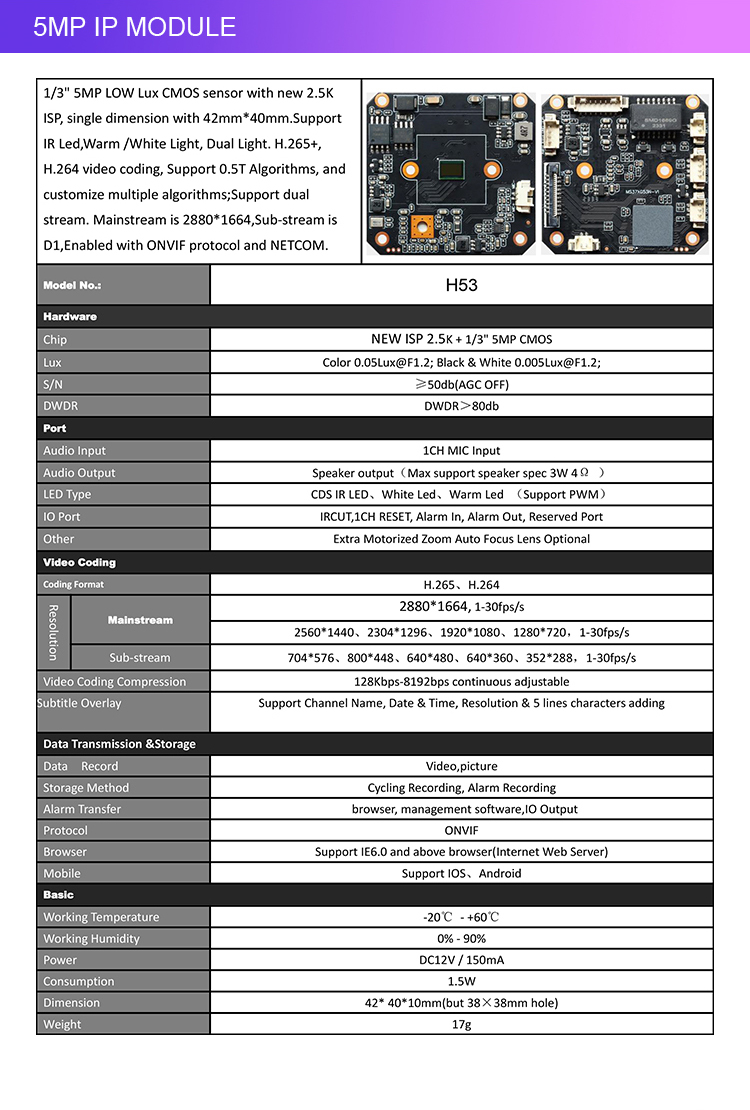

Specification
H53 *1/3" 5MP LOW Lux CMOS sensor with new 2.5K ISP, single dimension with 42mm*40mm*Support IR Led,Warm /White Light, Dual Light.H.265+, H.264 video coding *Support 0.5T Algorithms, and customize multiple algorithms;Support dual stream *Mainstream is 2880*1664 *Sub-stream is D1 *Enabled with ONVIF protocol and NETCOM | ||
Model | H53 | |
Chip | New ISP 2.5K+1/3'' 5mp CMOS | |
Illumination | Color 0.05LUX@F1.2, Black&White 0.005LUX@F1.2 | |
S/N | ≥50db(AGC OFF) | |
DWDR | DWDR>80db | |
Audio Input | 1CH MIC Input | |
Audio Output | Speaker output(Max support speaker spec 3W 4Ω) | |
LED Type | CDS IR LED/White LED/Warm LED(Support PWM) | |

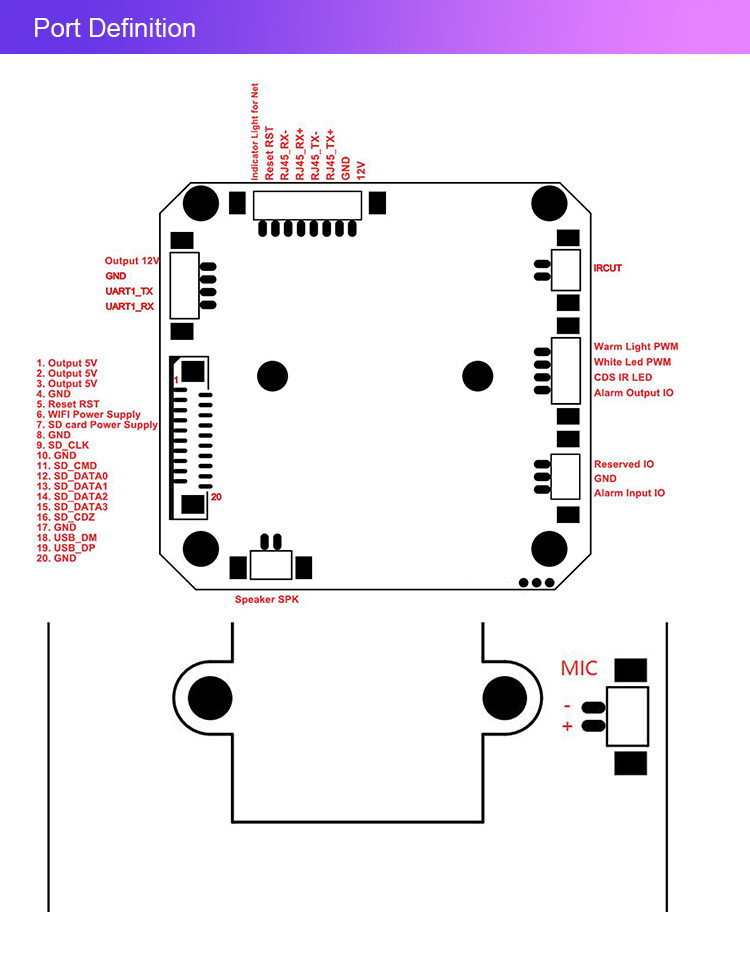

IO Port | IR-cut,1CH Reset,Alarm Out, Reserved Port | |
Other | Extra Motorized Zoom Auto Focus Lenses Optional | |
Coding Format | H.265,H.264 | |
Mainstream | 2880*1664,1-30fps 2560*1440,2304*1296,1920*1080,1280*720 1-30fps | |
Sub-stream | 704*576,800*448,640*480,640*360,352*288 1-30fps | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | Support channel name,date&time,resolution&5 lins characters adding | |
Data Record | Video,picture | |
Storage Method | Cycling Recording, Alarm Recording | |
Alarm Transfer | Browser,management software,IO output | |
Protocol | ONVIF | |
Client Browser | Support IE6.0 and above browser(Internet Web Server) | |
Mobile Client | Support IOS、Android | |
Operation Temperature | -20℃ to 60℃ | |
Working Humidity | 0%-90% | |
Power | DC12V/150mA | |
Dimension | 42*40*10mm(but 38*38mm hole) | |
Weight | 17g | |
