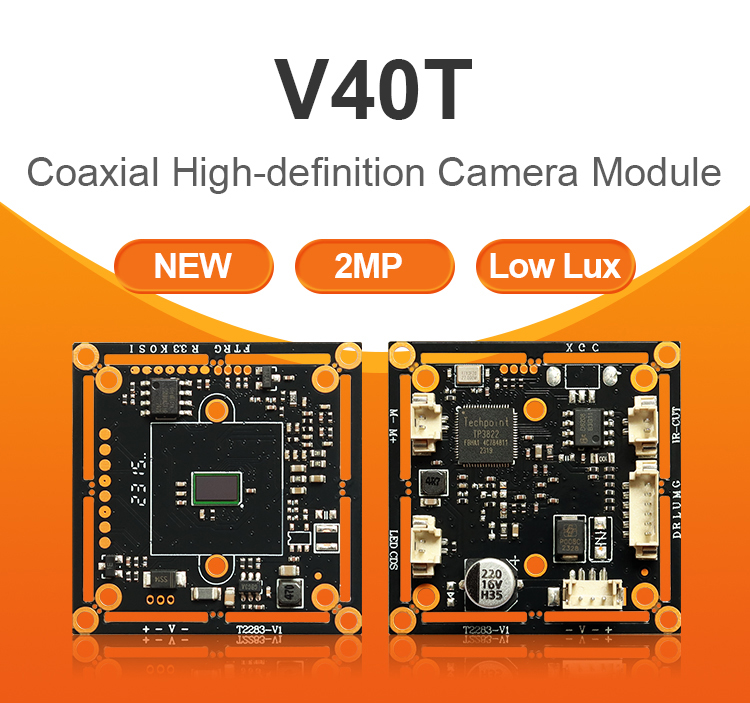

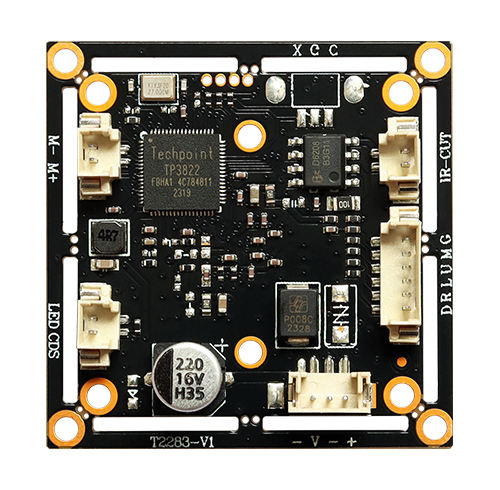

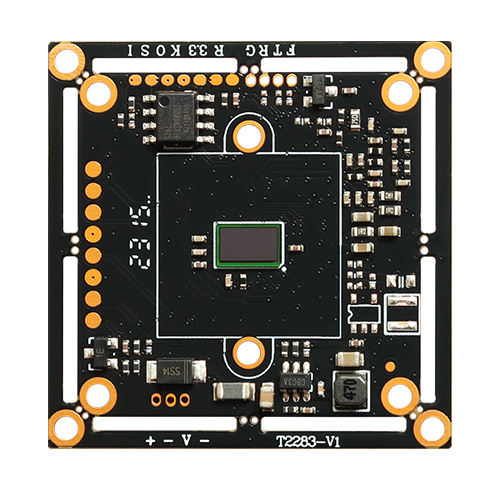

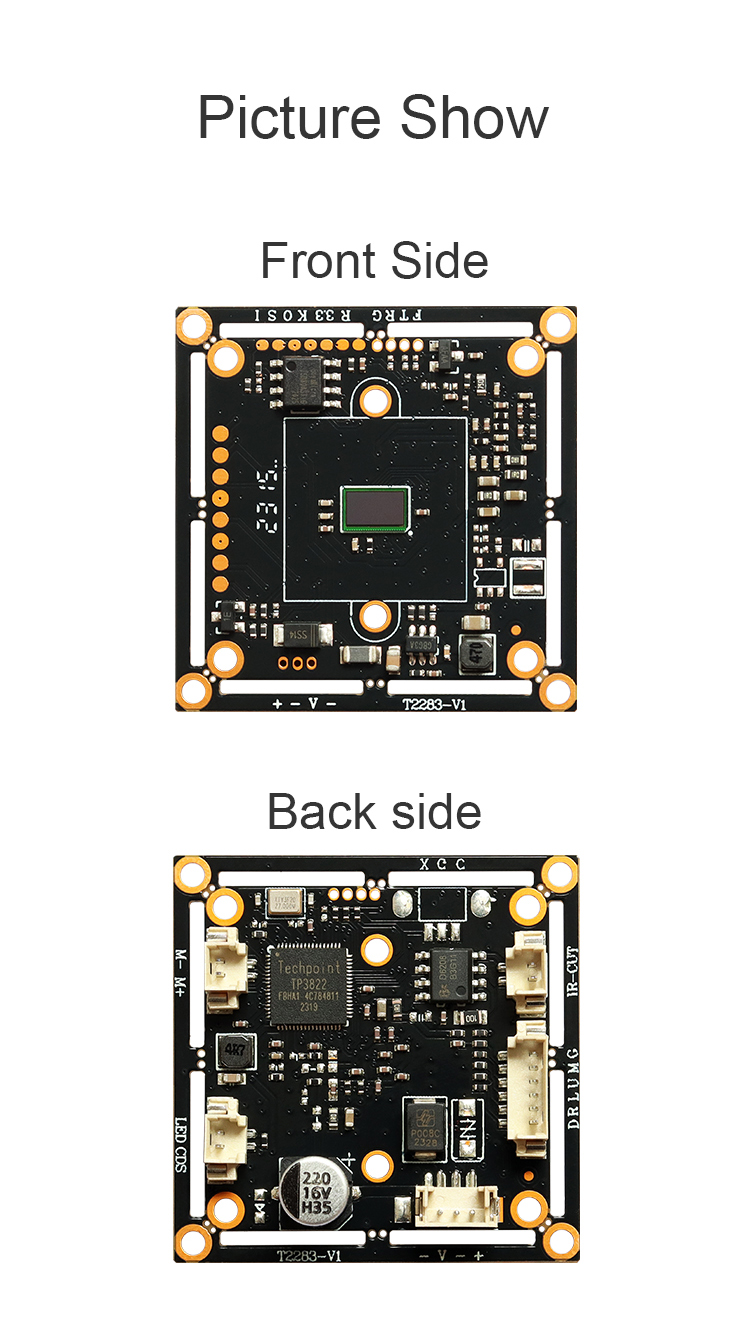

2MP Camera Analog CCTV Board GC2083 Security System 1080P HD Support Night Vision with Dual Light Infrared Light and Warm Light
$3.70
Availability:
In stock
Out of stock
Variations
Product Description
Product Description

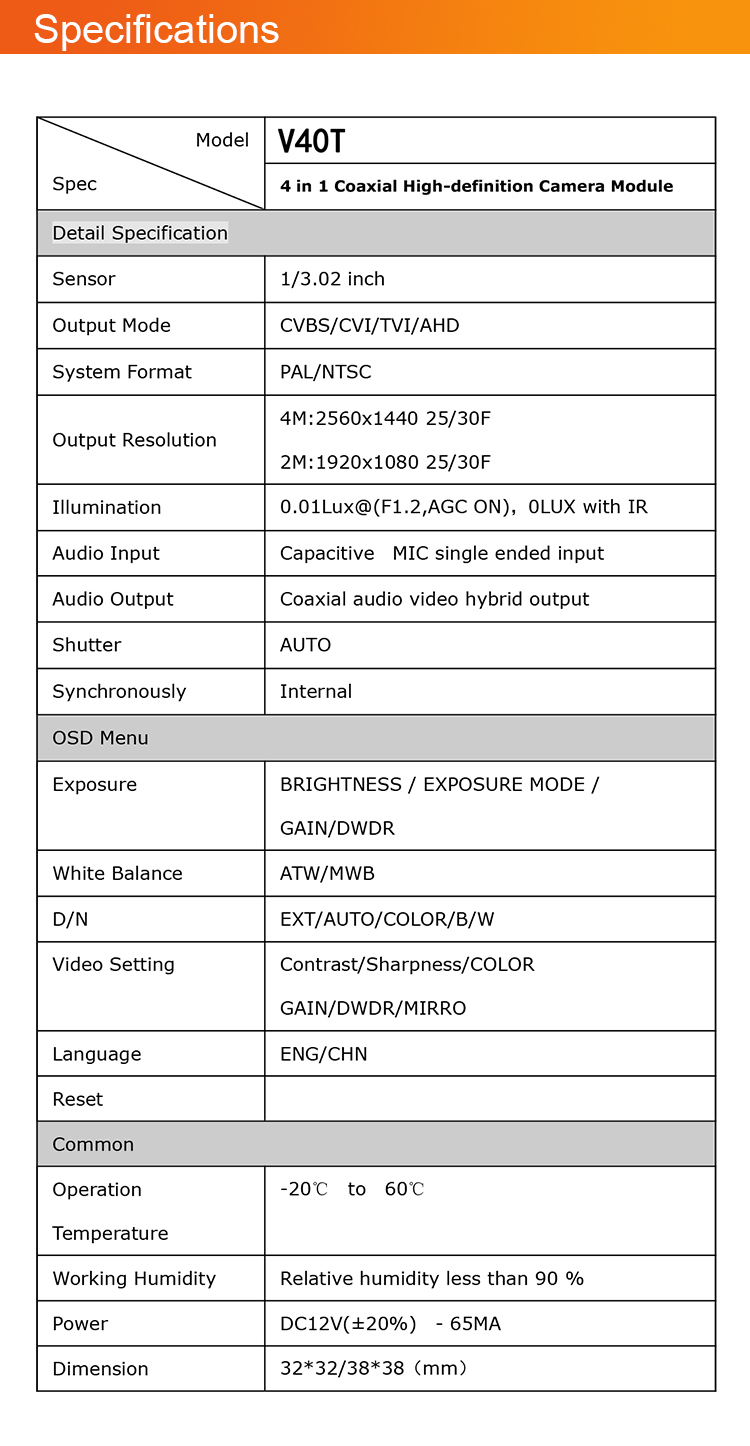

Specification

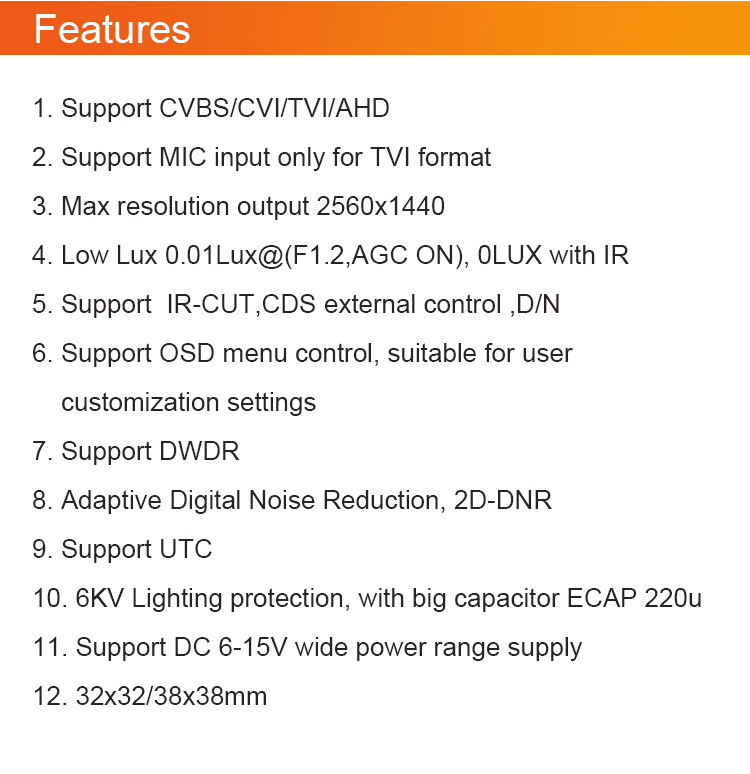

Features: * Support CVBS/CVI/TVI/AHD* Support MIC input only for TVI format * Max resolution output 2560x1440 * Low Lux 0.01Lux@(F1.2,AGC ON)，0LUX with IR * Support IR-CUT,CDS external control ,D/N * Support OSD menu control, suitable for user customization settings * Support DWDR * Adaptive Digital Noise Reduction,2D-DNR * Support UTC * 6KV Lighting protection，with big capacitor ECAP 220u * Support DC 6-15V wide power range supply * 32x32/38x38mm | |
Model | V40T |
Sensor | 1/3.02'' |
Output Mode | AHD/TVI/CVI/CVBS |
System Format | PAL/NTSC |
Output Resolution | 4M: 2560*1440 25/30fps 2M: 1920*1080 25/30fps |
Illumination | 0.01LUX@(F1.2,AGC ON), 0LUX with IR |
Audio Input | Capacitive MIC single ended input |
Audio Output | Coaxial audio video hybrid output |
Shutter | Auto |
Synchronously | Internal |
Exposure | Brightness/Exposure Mode/Gain/DWDR |
White Balance | ATW/MWB |
D/N | EXT/AUTO/COLOR/B&W |
Video Setting | Contrast/Sharpness/DWDR/Mirro |
Language | English/Chinese |
Reset | Support |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90% |
Power | DC12V(±20%) - 65mA |

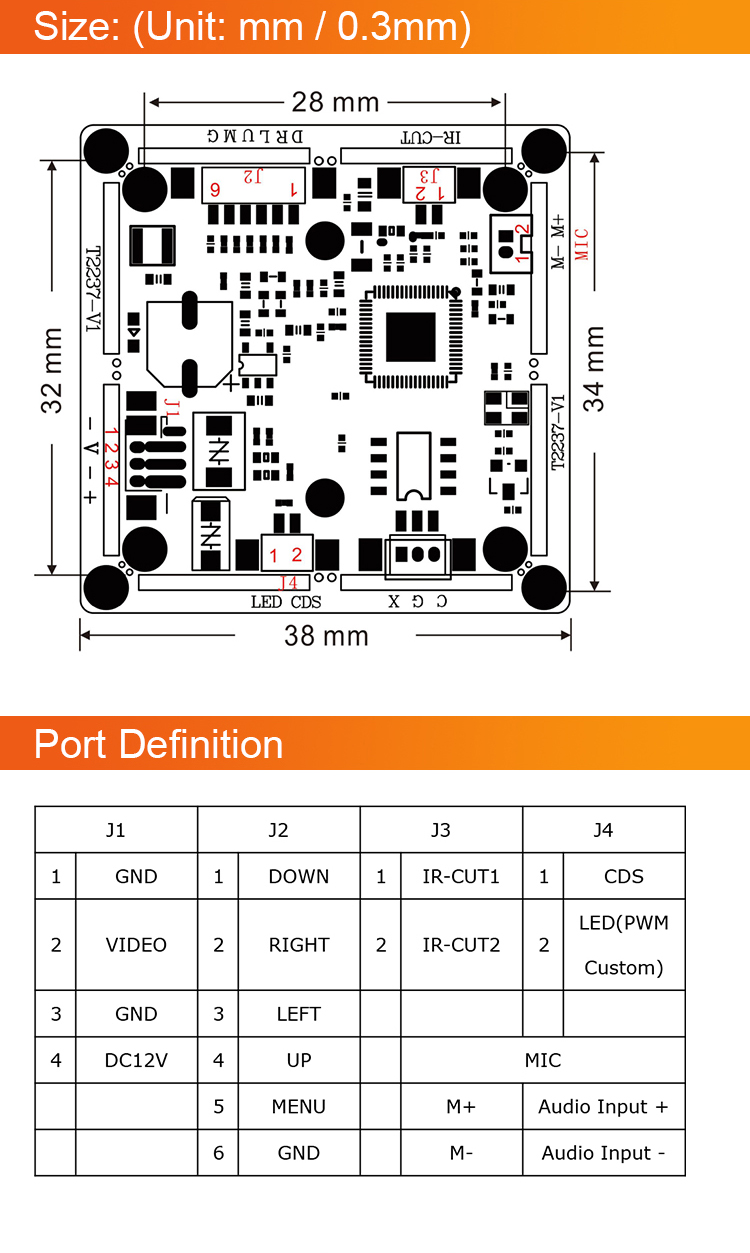

Dimension | 32*32/38*38(mm) |
OEM Service
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
