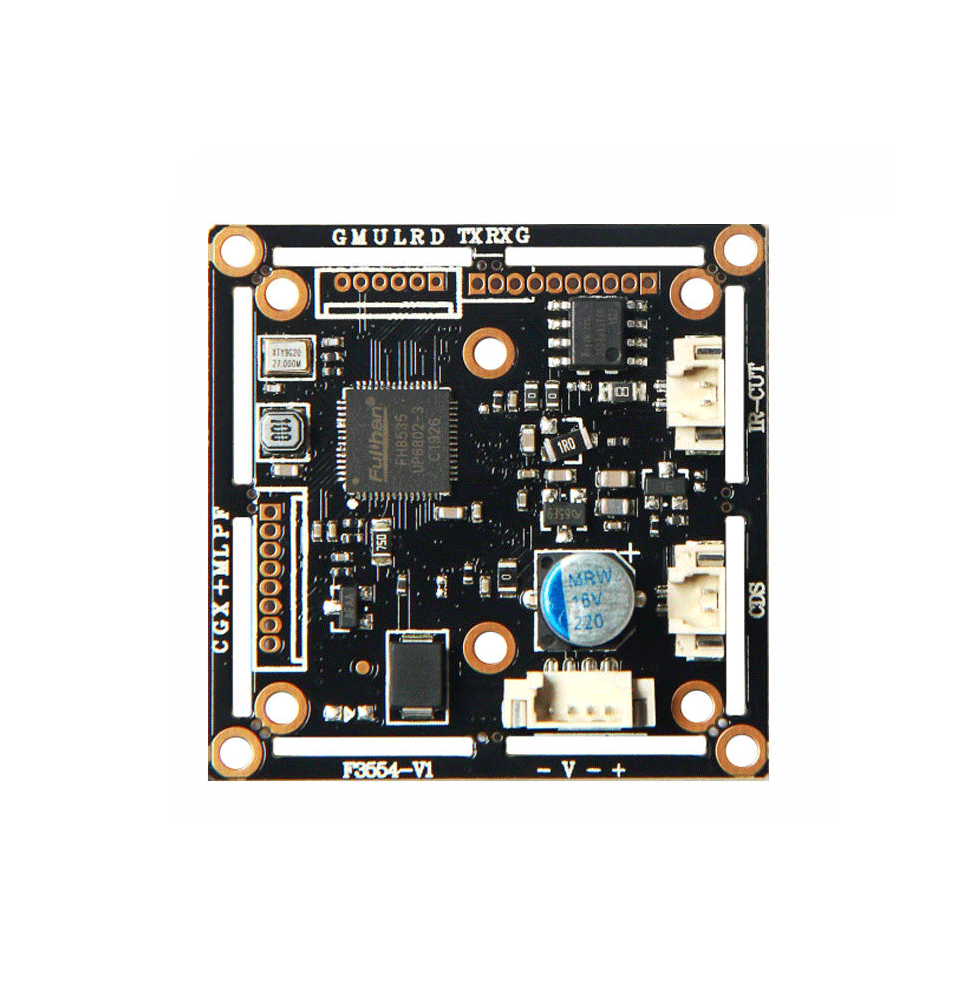

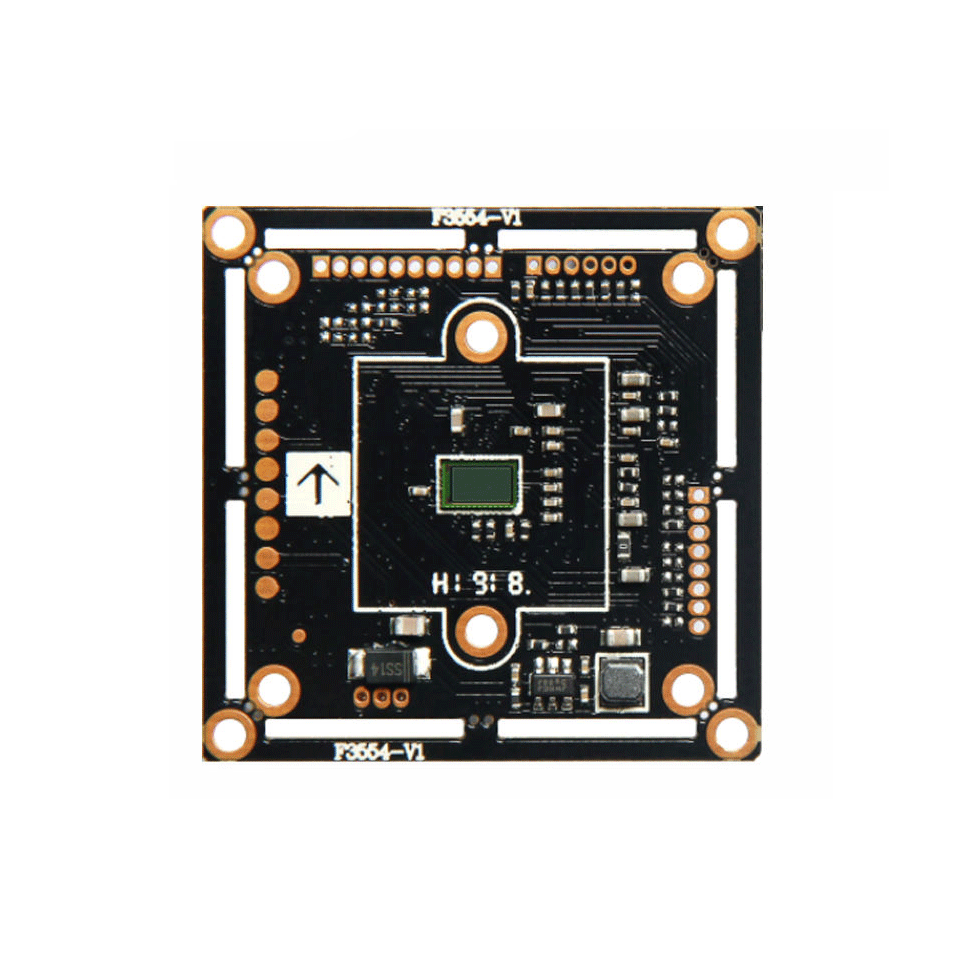

1MP HD Analog camera board CMOS Sensor 720P CCTV AHD module camera module
$10.00
Availability:
In stock
Out of stock
Variations
Product Description
Features:
l Use 1 million progressive scan CMOS, capture moving images
l Support AHD/TVI/CVI ,Excellent performance, clear and bright picture
l 0.1Lux@(F1.2,AGC ON),0LUX with IR
l Support IR CUT (3.3V), CDS external control
l Support DWDR
l Adaptive Digital Noise Reduction,2D-DNR
l Support UTC function
l Support DC6-15V wide range power supply
l Support 6KV lightning protection, with big capacitor
l 32x32mm
Specifications:
Model | F3534-V1 | ||
Spec. | 1MP coaxial high-definition camera module | ||
Detail Specifications | |||
Sensor/DSP | 1/4" GC1034+FH8535 | ||
System | PAL/NTSC | ||
Effective Pixel | 1280(H)x720(V) | ||
Illumination | 0.1Lux@(F1.2,AGC ON),0LUX with IR | ||
Shutter | AUTO | ||
D/N | COLOR | ||
Synchronously | Internal | ||
FPS | 720P@25fps / 720P@30fps | ||
Video output | AHD(TVI/CVI customize) | ||
OSD Menu | |||
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN | ||
BW | ATW/MWB | ||
D/N MODE | Internal AUTO/COLOR/B&W | ||
Video Setting | Contrast/Sharpness/Saturation DNR/Format/DWDR | ||
Language | CHN1/ESPANOL/CHN2/ITALIANO/ENGLISH | ||
Reset |
| ||
Common | |||
Operation Temperature | -20℃ to 60℃ | ||
Working Humidity | Relative humidity less than 90 % | ||
Power | DC12V(±20%) - 50MA | ||
Size | 38*38/32*32(mm) | ||
