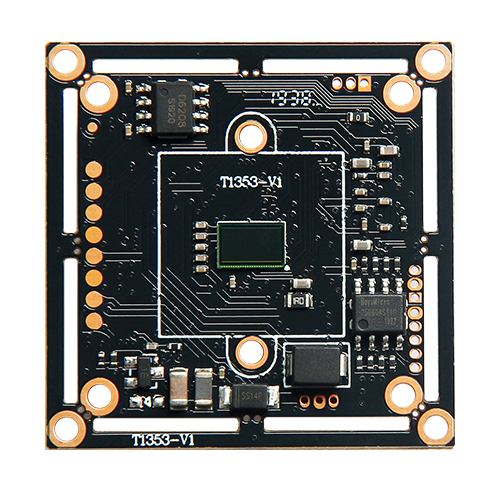

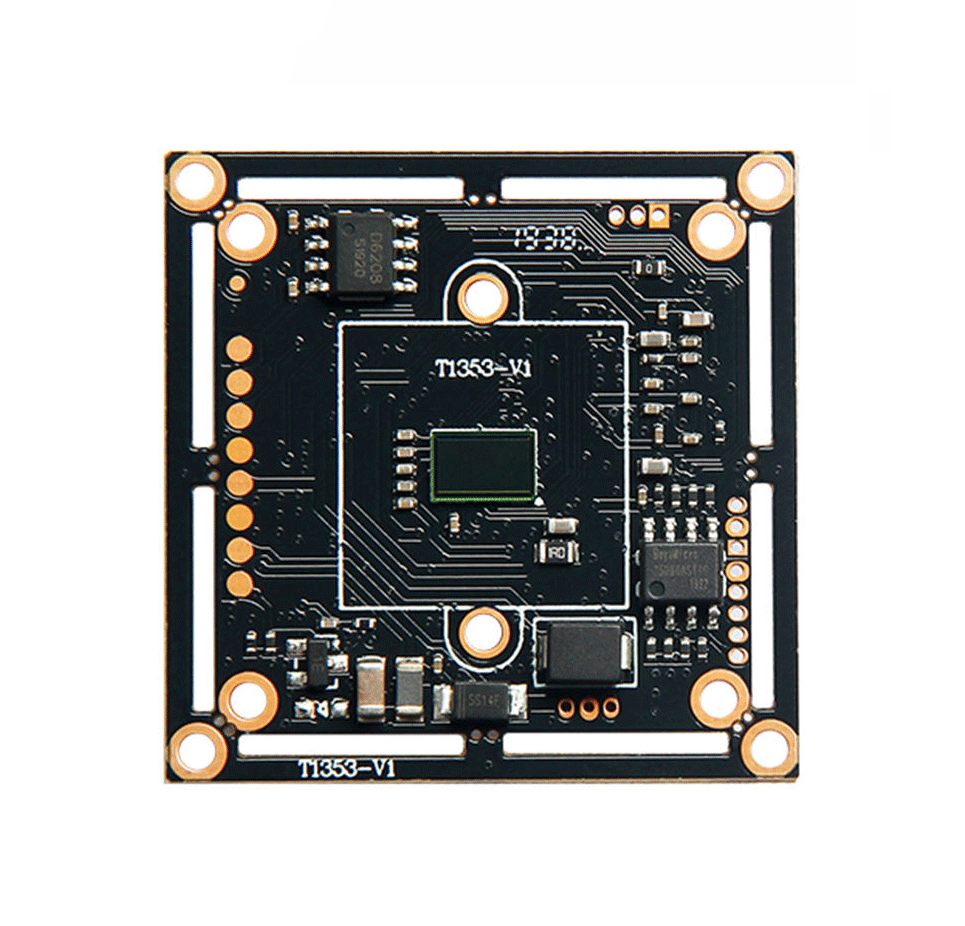

CCTV AHD camera 2MP CCTV camera pcb board module GC2053 TVI Audio
$10.00
Availability:
In stock
Out of stock
Variations
Product Description
Features:
l With 2MP CMOS,Capture moving images
l Support AHD/TVI/CVI ,excellent performance clear picture
l Support MIC input only for TVI format
l 0.01Lux@(F1.2,AGC ON),0LUX with IR
l Support IR-CUT,CDS external control ,D/N
l Support OSD/UTC
l Support DWDR
l Adaptive Digital Noise Reduction, 2D-DNR
l 6KV Lighting protection,with ECAP 220u
l Support DC 6-15V power
l 32x32/38x38(mm)
Specifications:
Model | T1353-V3 |
Spec. | 2MP Audio Coaxial HD Camera Module |
Detail Specifications | |
Sensor | 1/2.9"GC2053 |
ISP | TP3813 |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON),0LUX with IR |
Shutter | AUTO |
D/N | EXT(Default)/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI |
OSD Menu | |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN/DWDR |
BW | ATW/MWB |
D/N | EXT(Default)/AUTO/COLOR/B/W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DWDR/MIRRO |
Language | ENG/CHN |
Reset |
|
Common | |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 65mA |

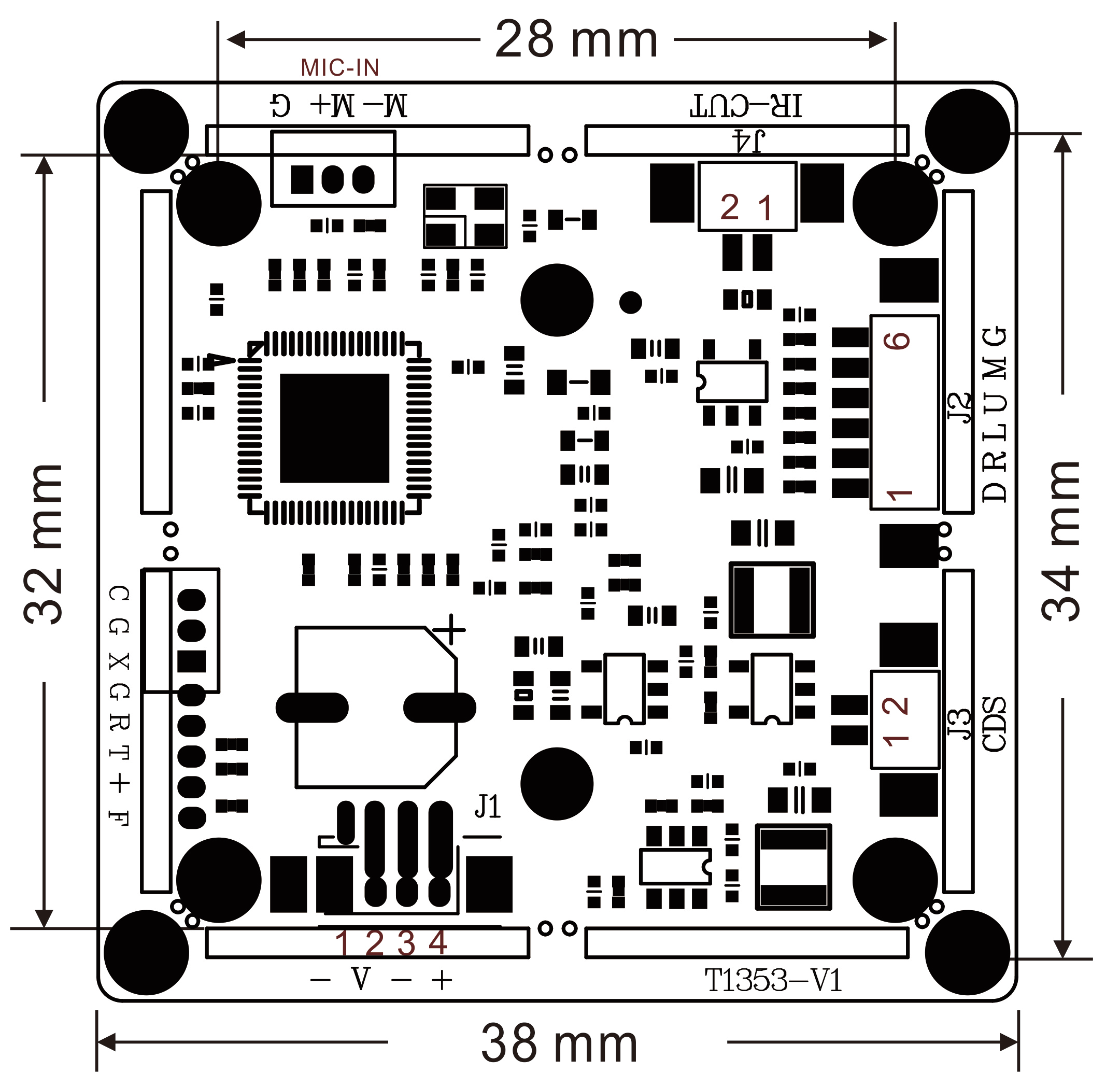

Size | 32*32/38*38(mm) |

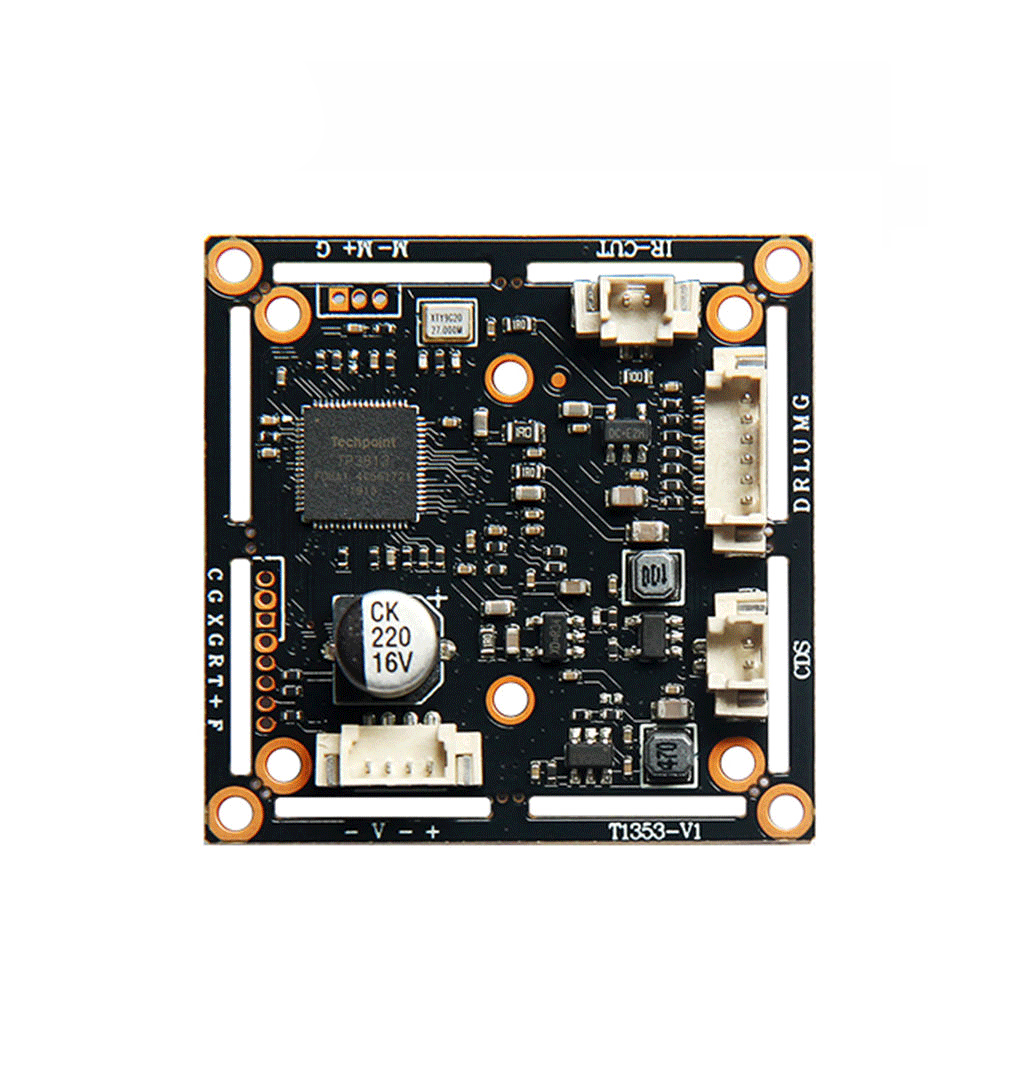

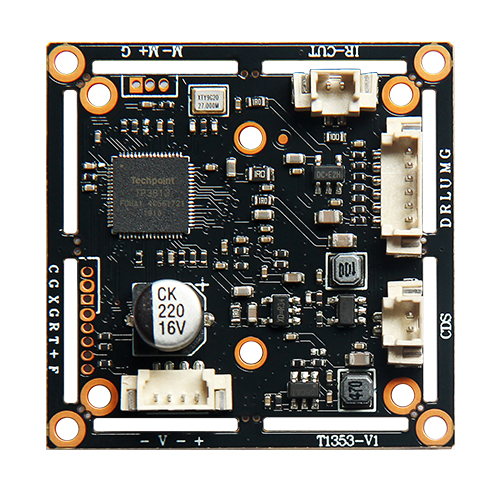

Picture Show:
J1 | J2 | J3 | J4 | ||||
1 | GND | 1 | DOWN | 1 | IR-CUT1 | 1 | CDS |
2 | VIDEO | 2 | RIGHT | 2 | IR-CUT2 | 2 | CDS |
3 | GND | 3 | LEFT |
|
|
|
|
4 | DC12V | 4 | UP |
| MIC-IN |
|
|
|
| 5 | MENU |
| M+ |
| Audio IN |
|
| 6 | GND |
| M- |
| Audio Out |
