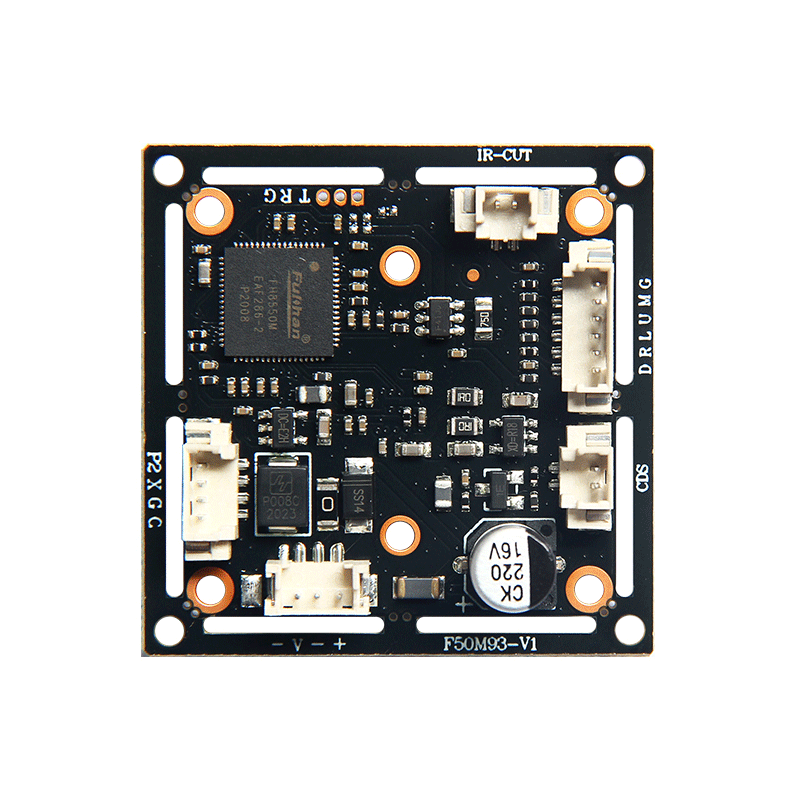

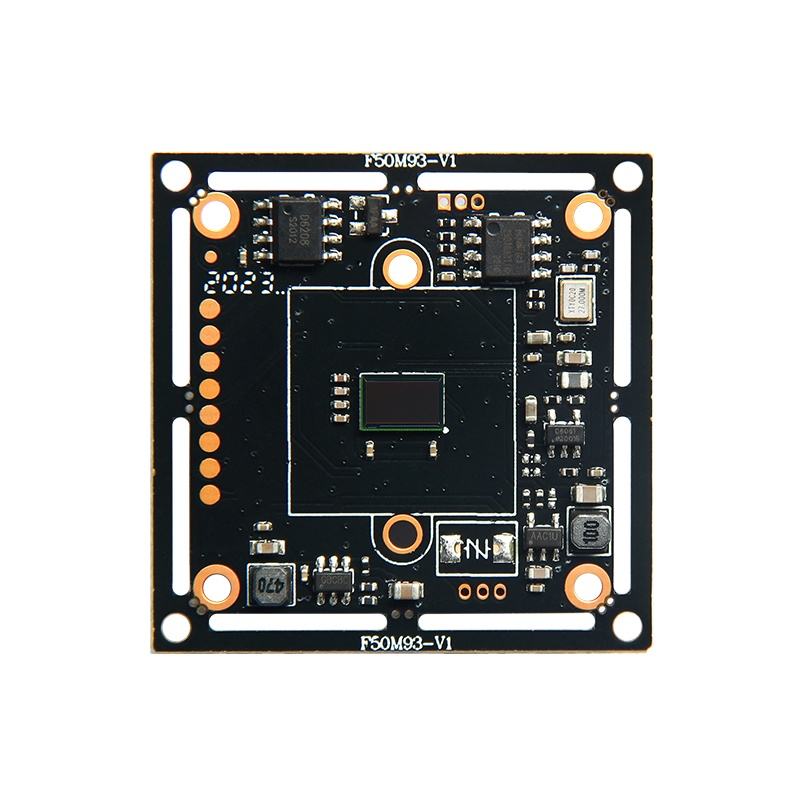

2MP AHD CCTV Camera Module WDR AHD/TVI/CVI/CVBS 4 IN 1 Camera PCB Board Camera LED Customization
$5.30
Availability:
In stock
Out of stock
Variations
Product Description
Product Description

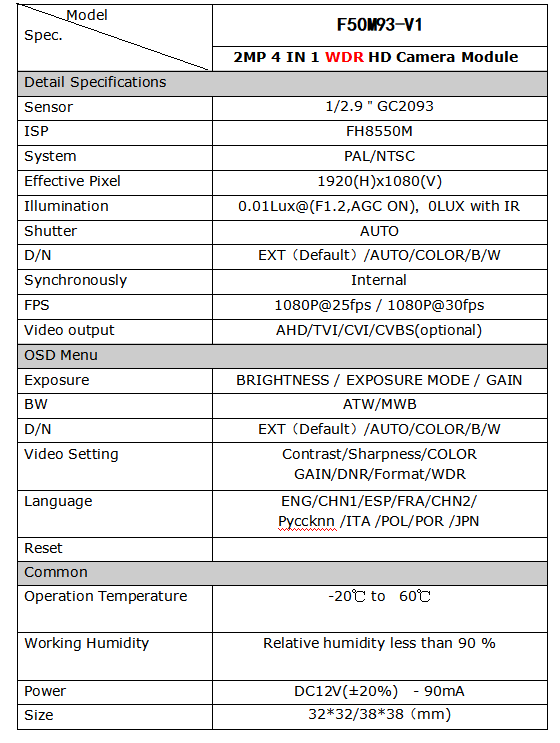

Specification
Model No. | F50M93-V1 |
Sensor | 1/2.9＂GC2093 |
ISP | FH8550M |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI/CVBS(optional) |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/WDR |
Language | ENG/CHN1/ESP/FRA/CHN2/Pyccknn /ITA /POL/POR /JPN |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 90mA |
Size | 32*32/38*38（mm) |
