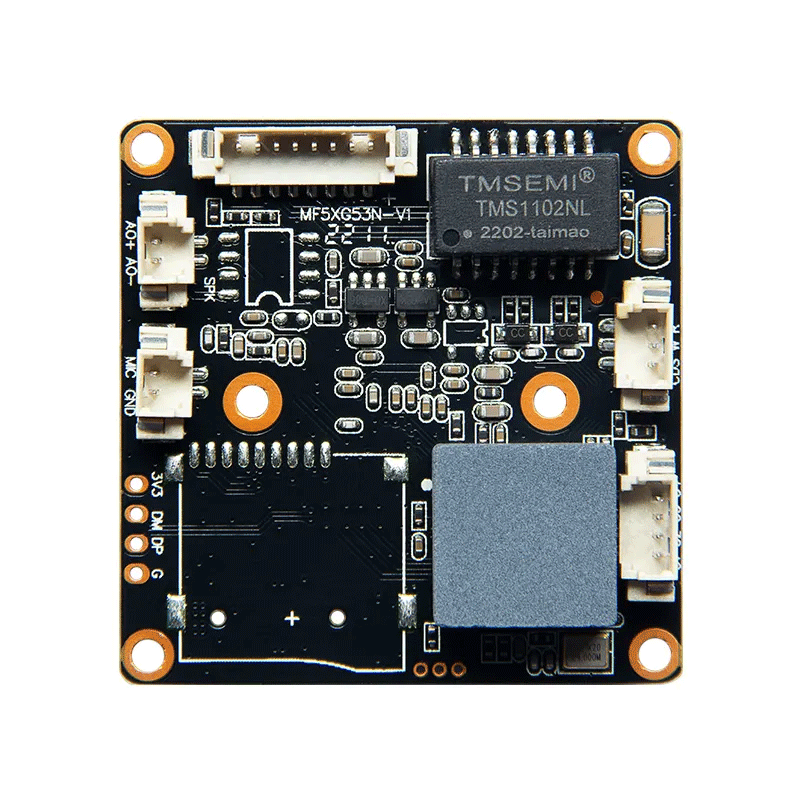

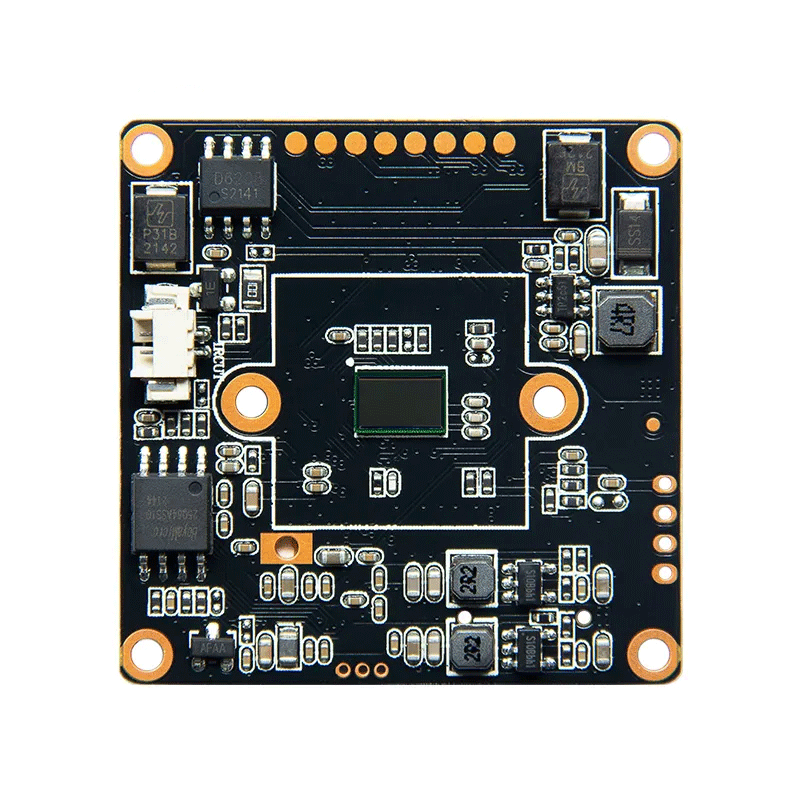

4MP PA2 IP Camera Board PCB Camera Module Video Recorder CCTV Camera PCB Board Shenzhen
$6.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | PA2 | |
Module | Fullhan 2K DSP+1/3'' 4MP CMOS Sensor | |
LUX | Color 0.05Lux@F1.2;B/W 0.005Lux@F1.2 | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR; >80db | |

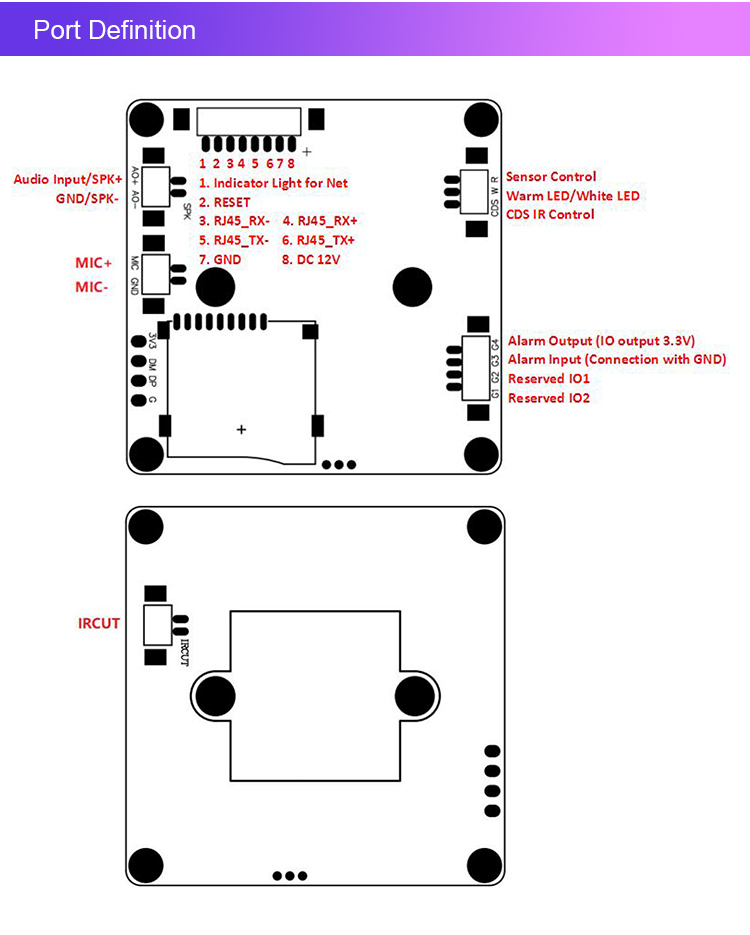

Audio/Intercom Input | MIC Input | |
Audio Output | MIC linear output & speaker optional | |
LED TYPE | CDS IR & Sensor Control & Warm LED | |
IO port | IR CUT & Reset & Alarm Input & Output | |
Others | AF Motorized Lens Optional | |
Coding Format | H.265/H.264 | |
Main Steam | 2560*1440,1-30FPS/S | |
2304*1296,1920*1080,1280*720,1-30FPS/S | ||
Sub Steam | 704*576,640*480,640*360,352*288,1-30FPS/S | |
Video Coding Compression | 128Kbps-8192bps Continuous Ajustable | |
Subtitle Overlay | Support Channel Name&Time&Frame&Resolution&4 Lines of Charactor Overlay | |
Data Record | Video & Picture | |
Storage Method | Cycling Recording & Alarm Recording | |
Alarm Transfer | IO output & Browser & Management Software | |
Protocol | Standard ONVIF Protocol | |
Mobile | Support IOS & Android | |
Browser | Support IE Browser & Management Software Viewing | |
Operation Temperature | -30℃ to +60℃ | |
Humidity | 0%-90% | |
Power | DC12V/110mA | |
Power | 1.3W | |
Size | 38*38*10mm(without lens) | |
Weight | 11g |
