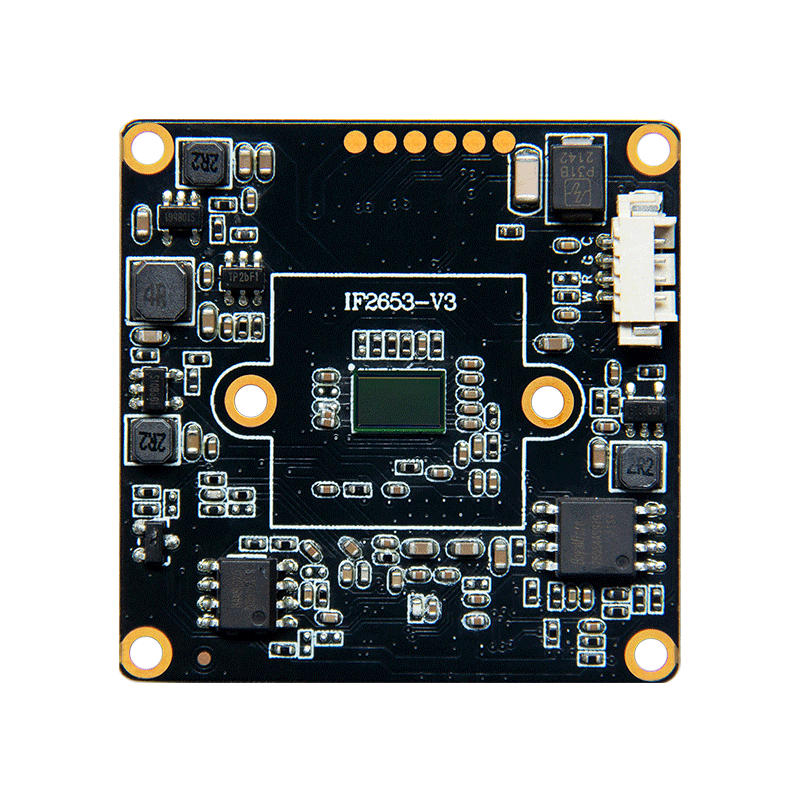

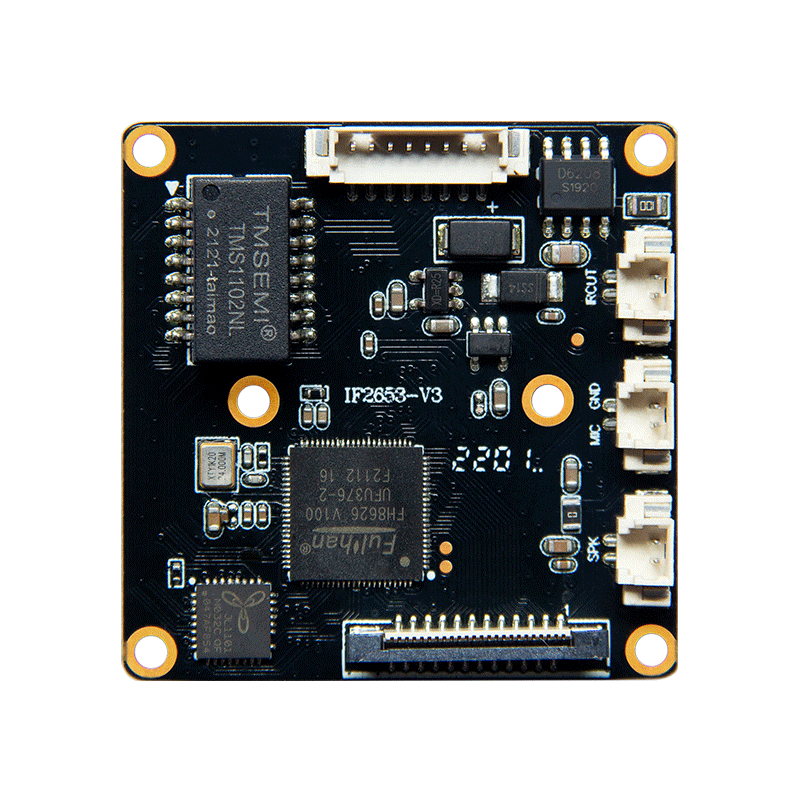

2MP 1080P Low Lux Infrared IPC Network Video Recorder GC2053 CCTV Camera System Smart Camera PCB Board Camera Module
$7.30
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model No. | IF2653-V3 |
Module | FH8626+1/2.9" GC2053 |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR；＞80db |
Audio/Intercom Input | 1CH MIC Input/linear input |
Audio Output | 1CH output |
IO port | 1CH RESET |
Main Steam | 1920*1680，5-20FPS/S |
Sub steam | 1280*720，5-20 FPS/S,640*360 ,5-20 FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support channel name、Date、1 group of characters superposition adjustable |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | All Net Connect / ONVIF 2.6 |
Browser | Support IE6.0 and above browser Client Browser |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | All Net Connect / ONVIF 2.6 |
Browser | Support IE6.0 and above browser Client Browser |
