IMX323 CCTV Camera Board 2MP AHD Camera Module IMX335 Starlight Sensor Support UTC Security Camera NIGHT Vision
$5.90
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification

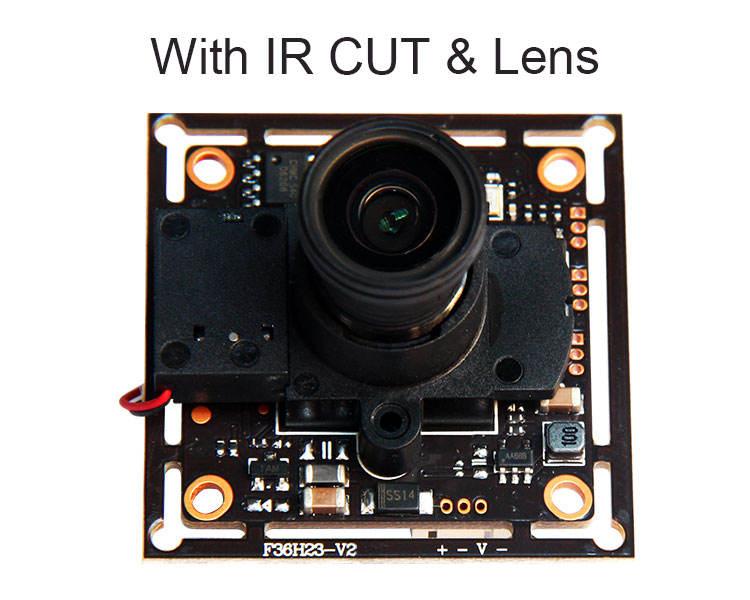

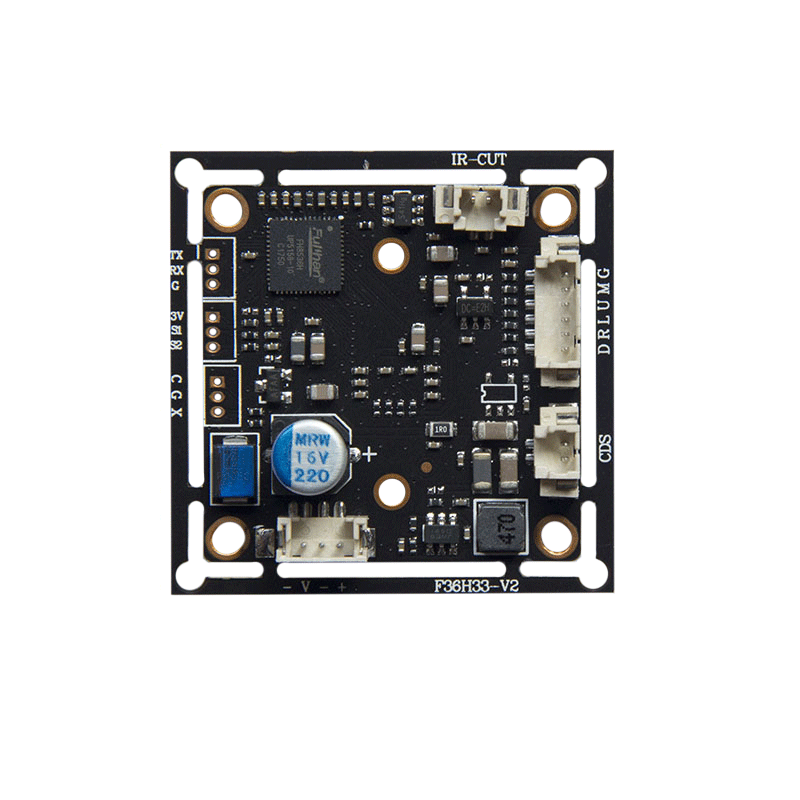

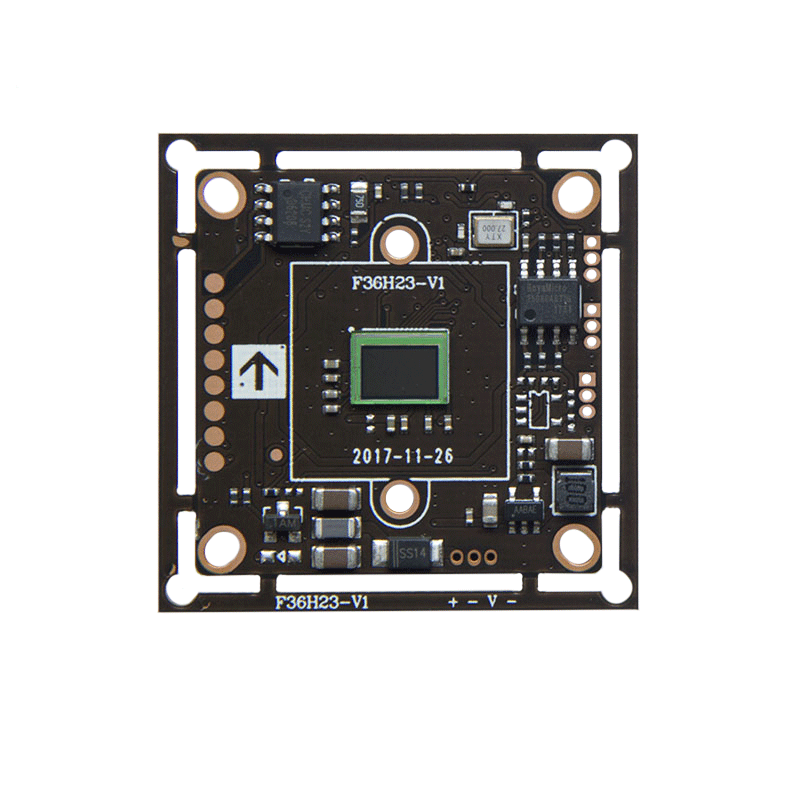

Model No. | F36H23-V2 |
Spec. | 2MP 4 IN 1 HD Camera Module |
Sensor | 1/2.9"IMX323 |
ISP | FH8536H |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux(F1.2,AGC ON),0LUX with IR |
Shutter | AUTO |
D/N | EXT(Default)/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 1080P25fps / 1080P30fps |
Video output | AHD/TVI/CVI/CVBS |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N | EXT(Default)/AUTO/COLOR/B/W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR |
Language | ENGLISH/CHN1/ESPANOL/FRANCAIS/CHN2/Pyccknn/ITALIANO/EAAHNIKA/POLSKI/Portuguese |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 70MA |
Size | 32*32/38*38(mm) |
