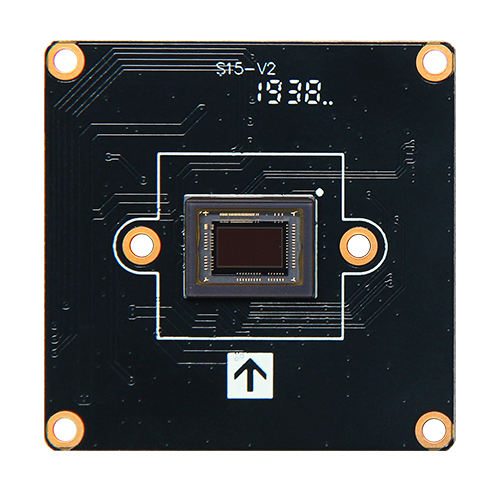

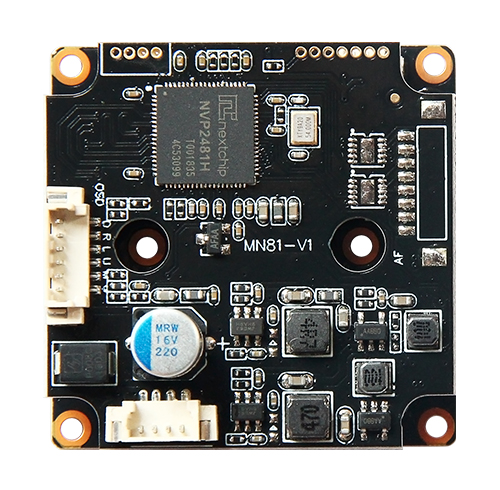

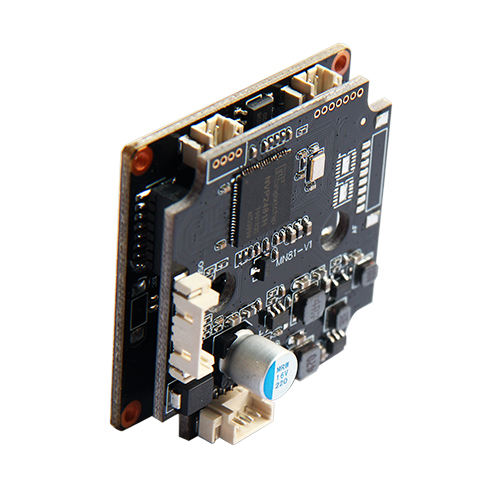

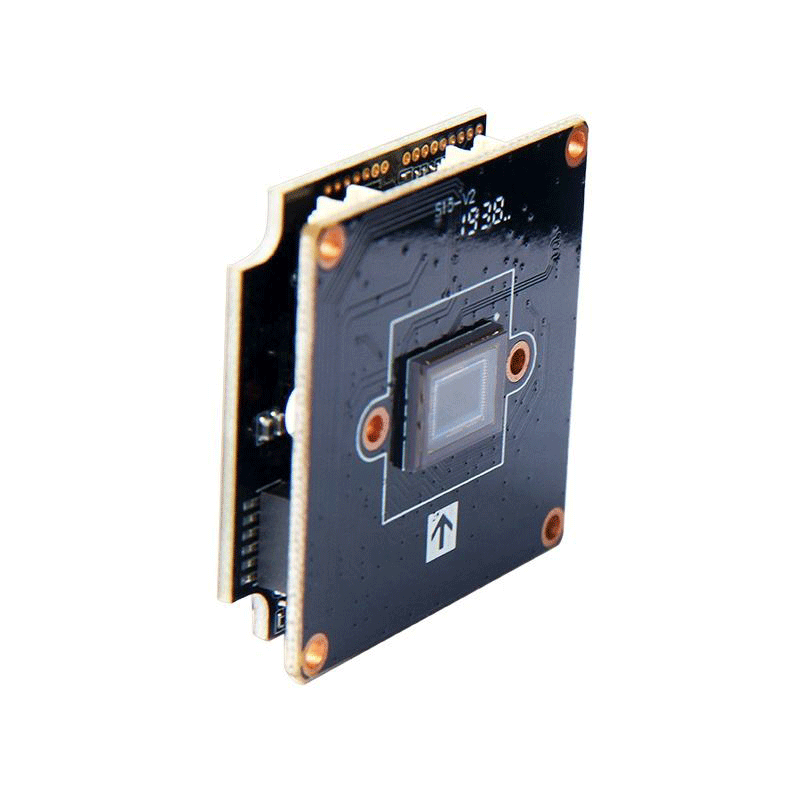

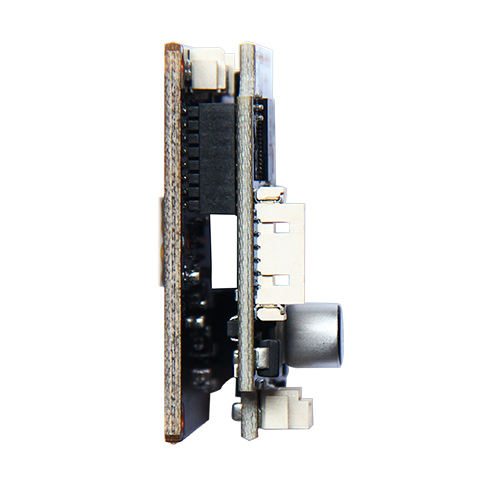

IMX415 1/2.8" CMOS 8MP AHD Camera PCB Security Camera Module NVP2481H High Quality Price Double Layer
$13.30
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification

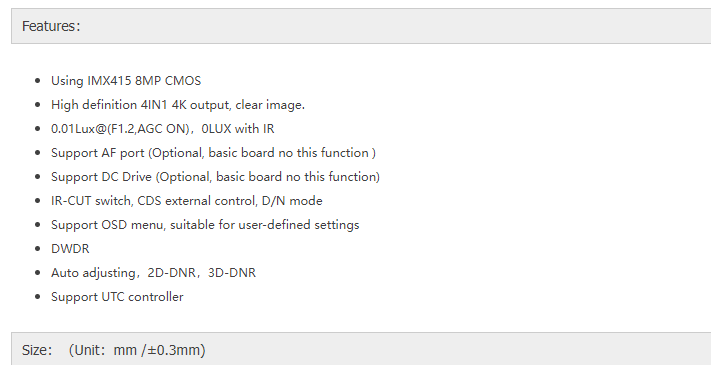

* Using IMX415 8MP CMOS * High definition 4IN1 4K output, clear image. * 0.01Lux@(F1.2,AGC ON)，0LUX with IR * Support AF port (Optional, basic board no this function ) * Support DC Drive (Optional, basic board no this function) * IR-CUT switch, CDS external control, D/N mode * Support OSD menu, suitable for user-defined settings * DWDR * Auto adjusting，2D-DNR，3D-DNR * Support UTC controller | ||

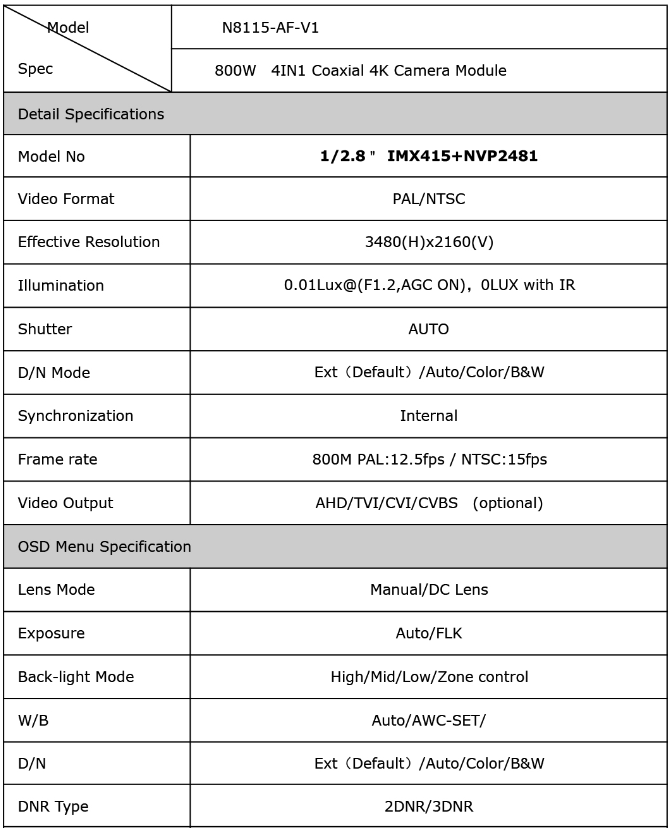

Model No. | 1/2.8'' IMX415+NVP2481 | |
Video Format | PAL/NTSC | |
Effective Resolution | 3480(H)*2160(V) | |
Illumination | 0.01Lux@(F1.2,AGC ON),0Lux with IR | |
Shutter | Auto | |
D/N Mode | Ext(Default)/Auto/Color/B&W | |
Synchronization | Internal | |
Frame Rate | 800M PAL: 12.5fps/ NTSC: 15fps | |
Video Output | AHD/TVI/CVI/CVBS(optional) | |
Lenses Mode | Manual/DC Lenses | |
Exposure | Auto/FLK | |
Black Light Mode | High/Mid/Low/Zone control | |
W/B | Auto/AWC-SET | |

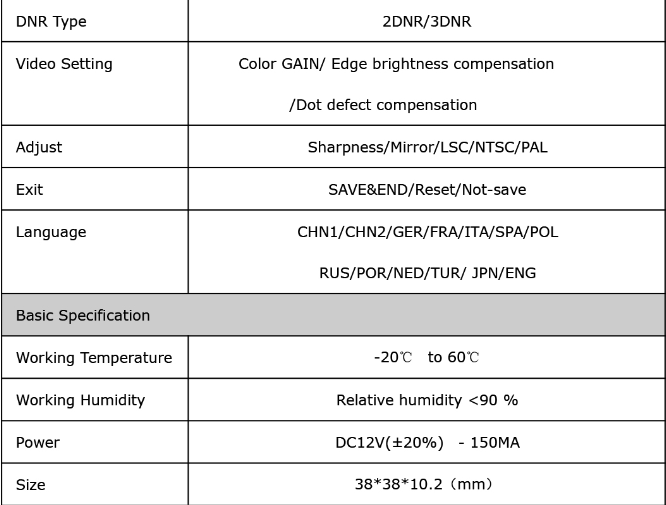

DNR Type | 2DNR/3DNR | |
Video Setting | Color GAIN/Edge brightness compensation/Dot defect compensation | |
Adjust | Sharpness/Mirror/LSC/NTSC/PAL | |
Exit | SAVED&END/RESET/NOT SAVE | |
Language | CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JPN/ENG | |
Working Temperature | -20℃ to 60℃ | |
Working Humidity | Relative humidity < 90% | |
Power | DC12V(±20%)-150mA | |

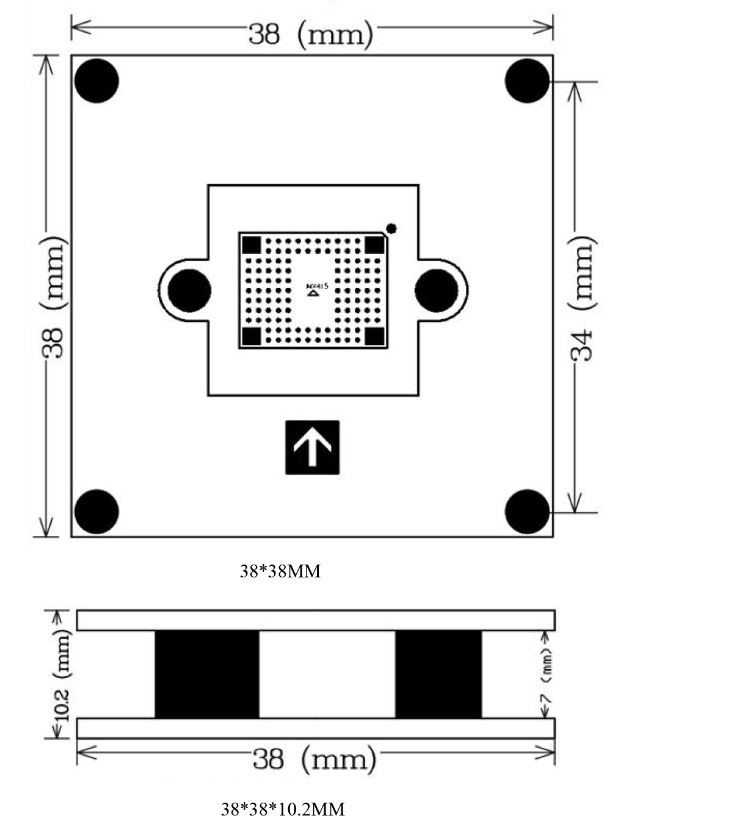

Size | 38*35*10.2(mm) | |
