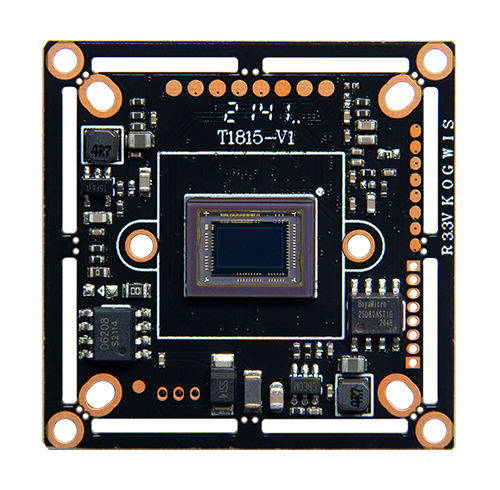

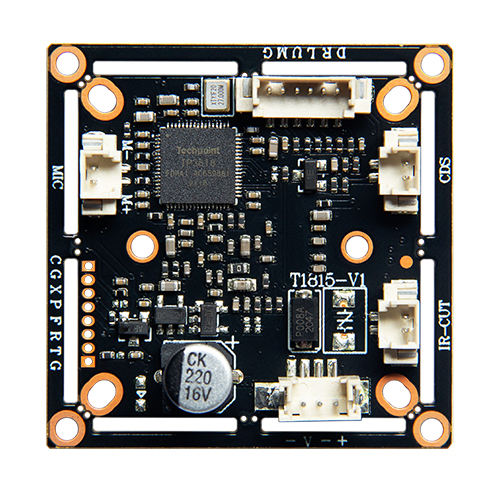

IMX415+TP3818 8MP Analog Camera Module Price High Quality TVI Coaxial Audio 2D Noise Reduction
$10.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification

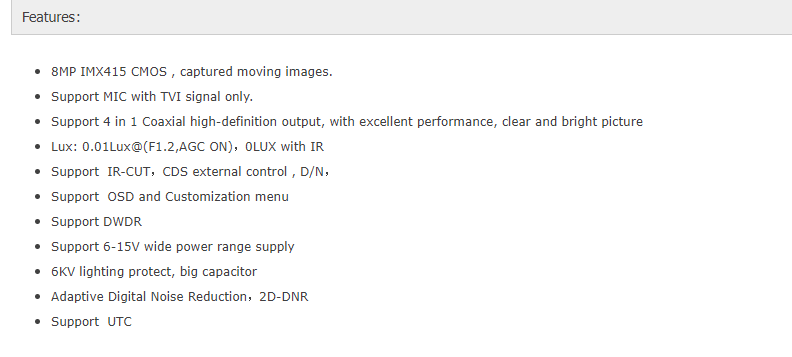

* 8MP IMX415 CMOS , captured moving images. * Support MIC with TVI signal only. * Support 4 in 1 Coaxial high-definition output, with excellent performance, clear and bright picture * Lux: 0.01Lux@(F1.2,AGC ON)，0LUX with IR * Support IR-CUT，CDS external control , D/N， * Support OSD and Customization menu * Support DWDR * Support 6-15V wide power range supply * 6KV lighting protect, big capacitor * Adaptive Digital Noise Reduction，2D-DNR * Support UTC | ||

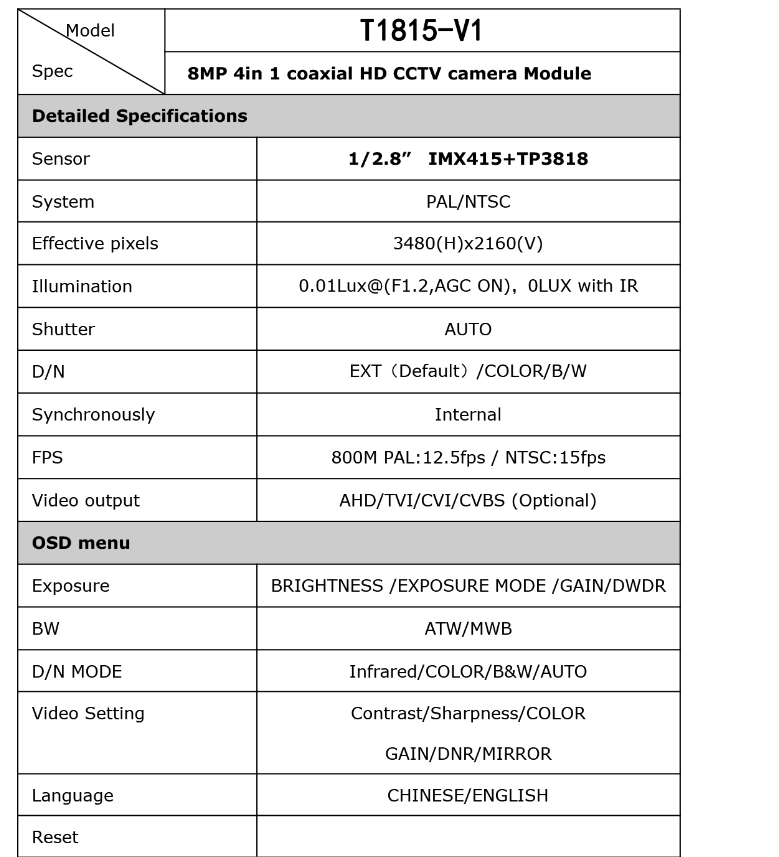

Model No. | T1815-V2 | |
Spec. | 8MP 4 in 1 coaxial HD CCTV camera module | |
Sensor | 1/2.8'' IMX415+TP3818 | |
System | PAL/NTSC | |
Effective pixels | 3480(H)*2160(V) | |
Illumination | 0.01Lux@(F1.2,AGC ON), 0Lux with IR | |
Shutter | Auto | |
D/N | EXT(Default)/Color/B&W | |
Synchronously | Internal | |
FPS | 800M PAL: 12.5fps/NTSC: 15fps | |
Video output | AHD/TVI/CVI/CVBS | |
Exposure | Brightness/Exposure mode/Gain/DWDR | |
BW | ATW/MWB | |
D/N Mode | Infrared/Color/B&W/Auto | |
Video setting | Contrast/Sharpness/Color/Gain/DNR/Mirror | |
Language | Chinese/English | |
Reset | Support | |
