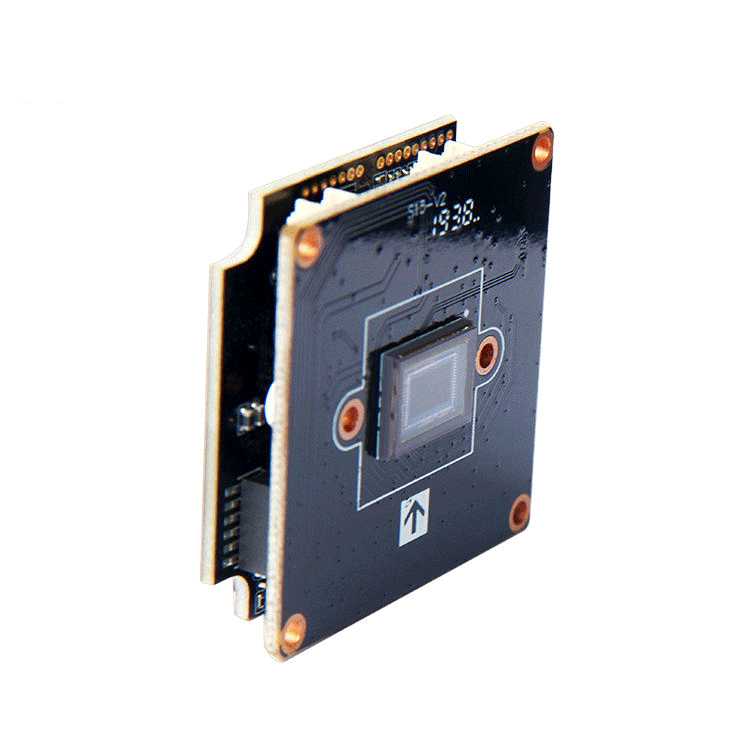

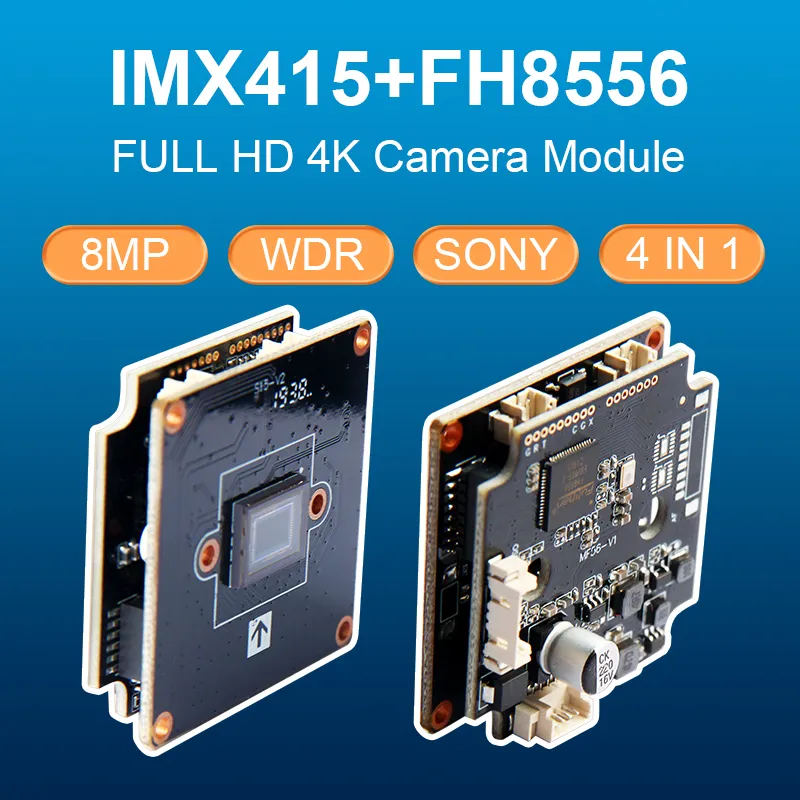

8MP 4K IMX415 Camera PCB Board Module WDR 3DNR with NIGHT VISION IR-CUT Security System CCTV Camera Module
$11.90
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | F5615-AF-V2 |
Spec. | 8MP 4 IN 1 Camera Module |

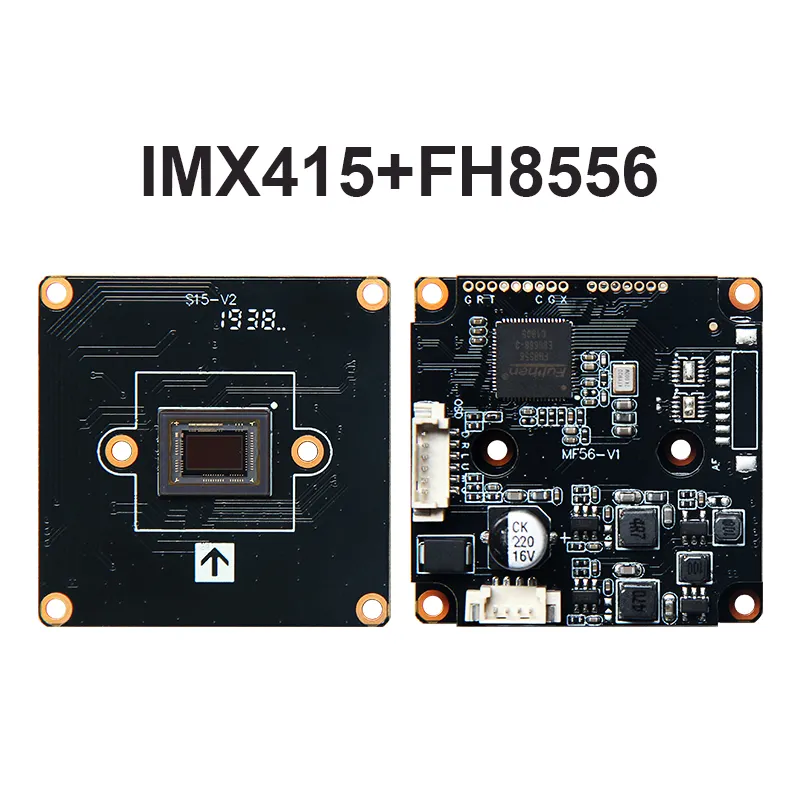

Sensor/DSP | 1/2.8＂ IMX415+FH8556 |
System | PAL/NTSC |
Effective Pixel | 3480(H)x2160(V) |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 8MP PAL:12.5fps / NTSC:15fps |
Video output | AHD/TVI/CVI/CVBS |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N MODE | Infrared/Internal AUTO/COLOR/B&W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/WDR |
Language | ENGLISH/CHN1/ESPANOL/CHN2/RUS/FRANCAIS/POLSKIM/PORTUGUES/Japanese/ITALIANO/ |
OSD Menu | Support |
Reset | Support |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 95MA |
Size | 32*32/38*38（mm） |
