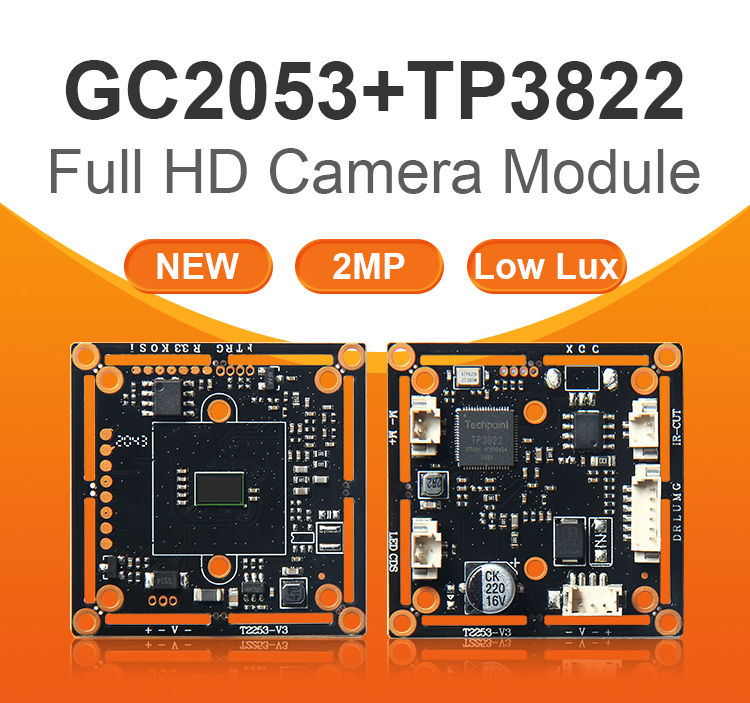

2MP GC2053 AHD Camera Module CCTV Coaxial audio in TVI Analog PCB Board TP3822 + GC2053 Shenzhen Factory Hot Sale
$4.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description

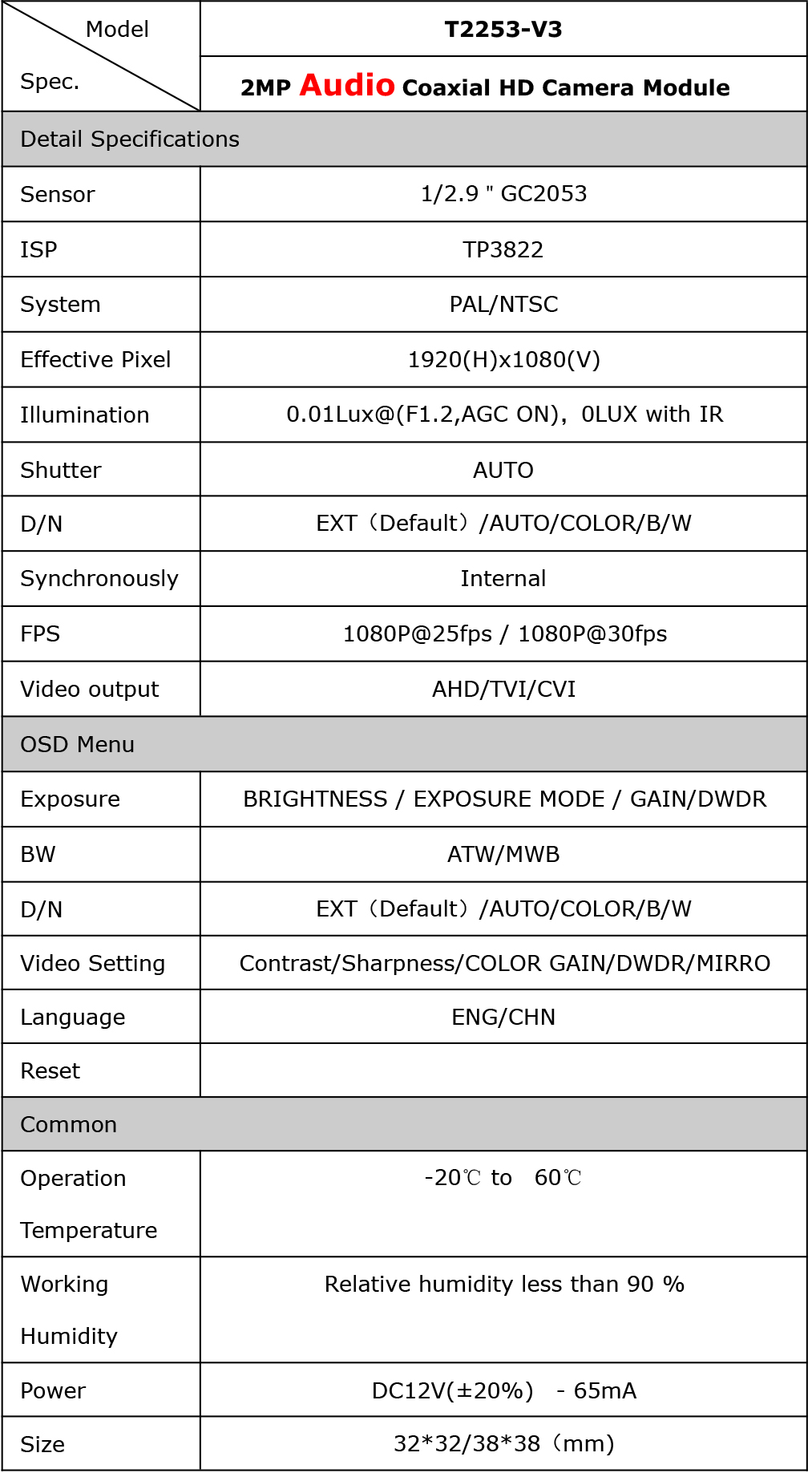

Specification
Model | T2253-V3 |
Spec. | 2MP Audio Coaxial Surveillance HD Camera Module |
Sensor | 1/2.9"GC2053 |
ISP | TP3822 |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON),0LUX with IR |
Shutter | AUTO |
D/N | EXT(Default)/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI(can be switch) |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN/DWDR |
BW | ATW/MWB |
D/N | EXT(Default)/AUTO/COLOR/B/W |
Video Setting | Contrast/Sharpness/Saturation/DNR/MIRRO |
Language | ENGLISH/CHINESE |
Reset | Support |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 65mA |

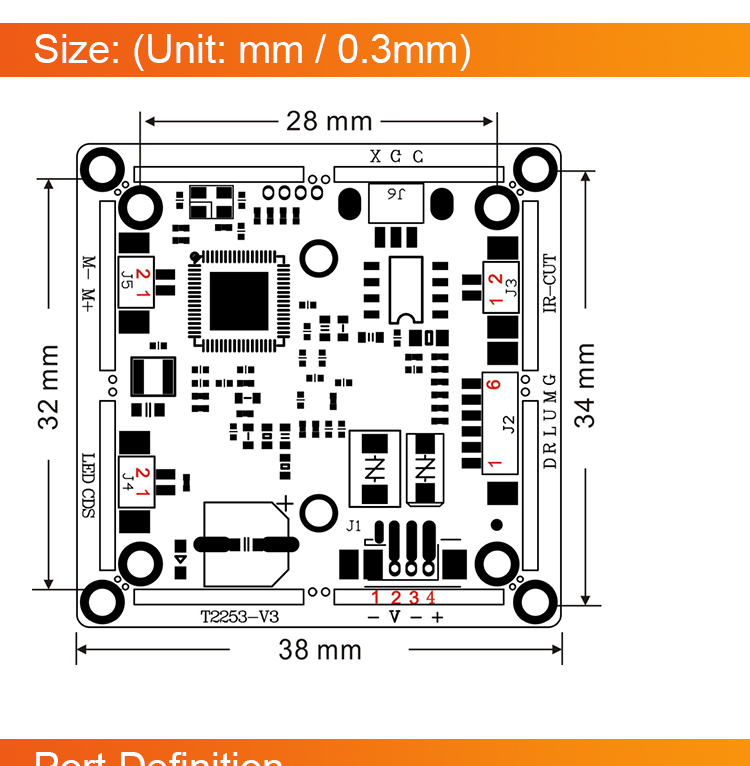

Size | 32*32/38*38(mm) |
