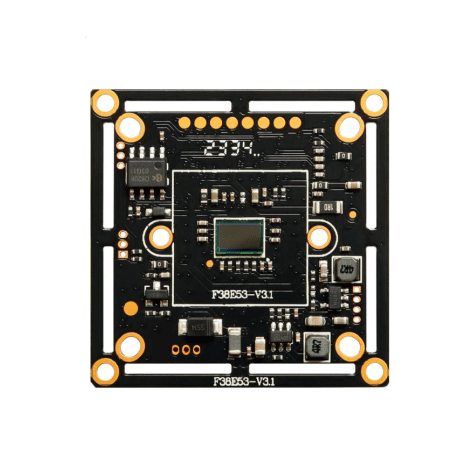

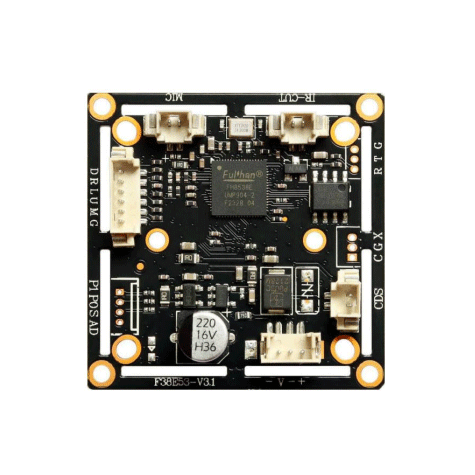

5MP AHD Camera Module hs cctv Coaxial Audio in TVI BSI Starlight 1/3" Sensor pcb Board 30fps AHD/TVI/CVI/CVBS Night Vision
$3.70
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Features: * Support CVBS/CVI/TVI/AHD Output * Support 1080P/4M/5M output * Max output resolution 2560x1920 * Support 1 way MIC input * Audio Output（in TVI /AHD mode） * Low Lux, 0.05Lux@(F1.2,AGC ON)，0Lux with IR * Support IR-CUT switch, CDS external control , D/N * Support OSD menu, Custom OSD available * Support on-off switch cable control（Switch the video format） * Adaptive Digital Noise Reduction,2D-DNR * Support UTC * Support 2way PWM output(custom software) * Support DC 8-15V wide power supply | ||
Model | V52 | |
Sensor | BSI 1/3.0'' | |
Output Mode | AHD/TVI/CVI/CVBS | |
System Format | PAL/NTSC | |
Output Resolution | 5M: 2560*1920 20/12.5fps 4M: 2560*1440 25/30fps2M: 1920*1080 25/30fps | |
Illumination | 0.05LUX@(F1.2,AGC ON), 0LUX with IR | |
Audio Input | Capacitive MIC single ended input | |
Audio Output | Coaxial audio video hybrid output | |
Shutter | Auto | |
Synchronously | Internal | |
Exposure | Brightness/Exposure Mode/Gain/DWDR | |
White Balance | ATW/MWB | |
D/N | Infrared/AUTO/COLOR/B&W | |
Video Setting | Contrast/Sharpness/DWDR/Gain | |
Language | CHN1/CHN2/FRA/ITA/SPAN/POL/RUS/POR/ENG | |
Reset | Support | |
Operation Temperature | -20℃ to 60℃ | |
Working Humidity | Relative humidity less than 90% | |
Power | DC12V(±20%) - 60mA | |
Dimension | 32*32/38*38(mm) | |
