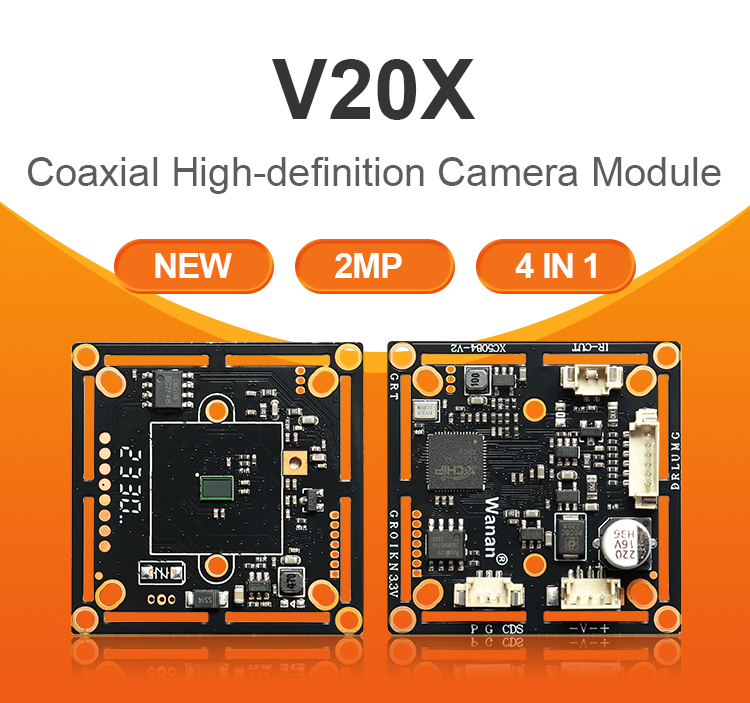

2MP AHD Camera Board PCB Price Camera Module 4 in 1 AHD/TVI/CVI/CVBS Wired Board
$1.70
Availability:
In stock
Out of stock
Variations
Product Description
Product Description

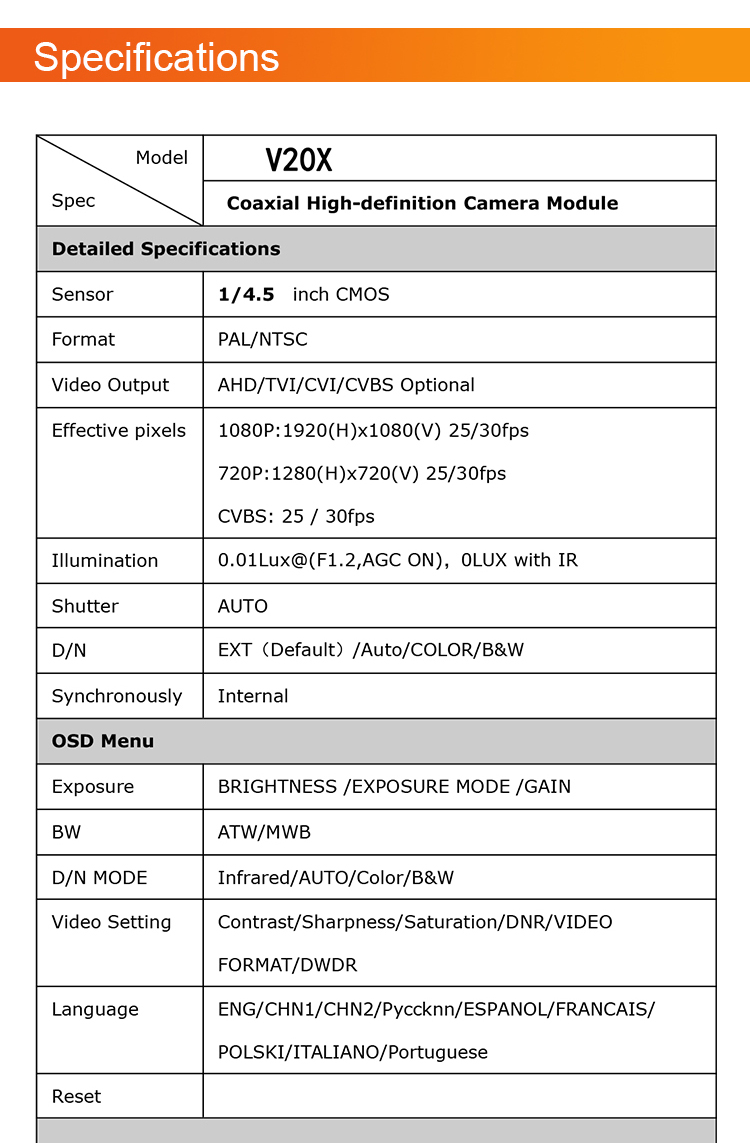

Specification
Model No. | V20X |
Sensor | 1/4.5＂CMOS |
System | PAL/NTSC |
Effective Pixel | 1080P: 1920(H)*1080(V) 25/30fps 720P: 1280(H)*720(V) 25/30fps CVBS: 25/30fps |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | Internal |
Video output | AHD/TVI/CVI/CVBS Optional |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N | Infrared/AUTO/COLOR/B&W |
Video Setting | Contrast/Sharpness/Saturation/DNR/Video/Format/DWDR |
Language | ENG/CHN1/ESP/FRA/CHN2/RUS/ITA /POL/POR /KRO |
Reset | Support |

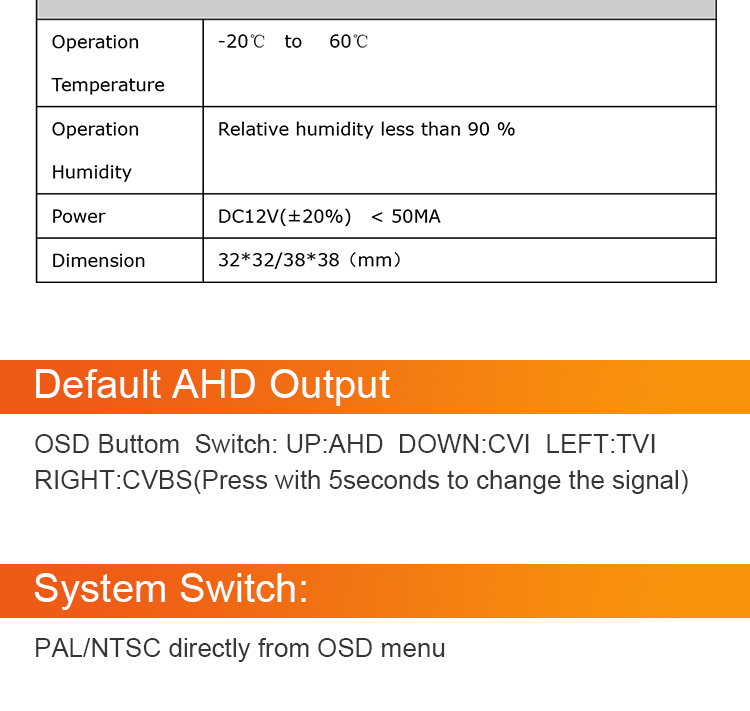

Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 50mA |

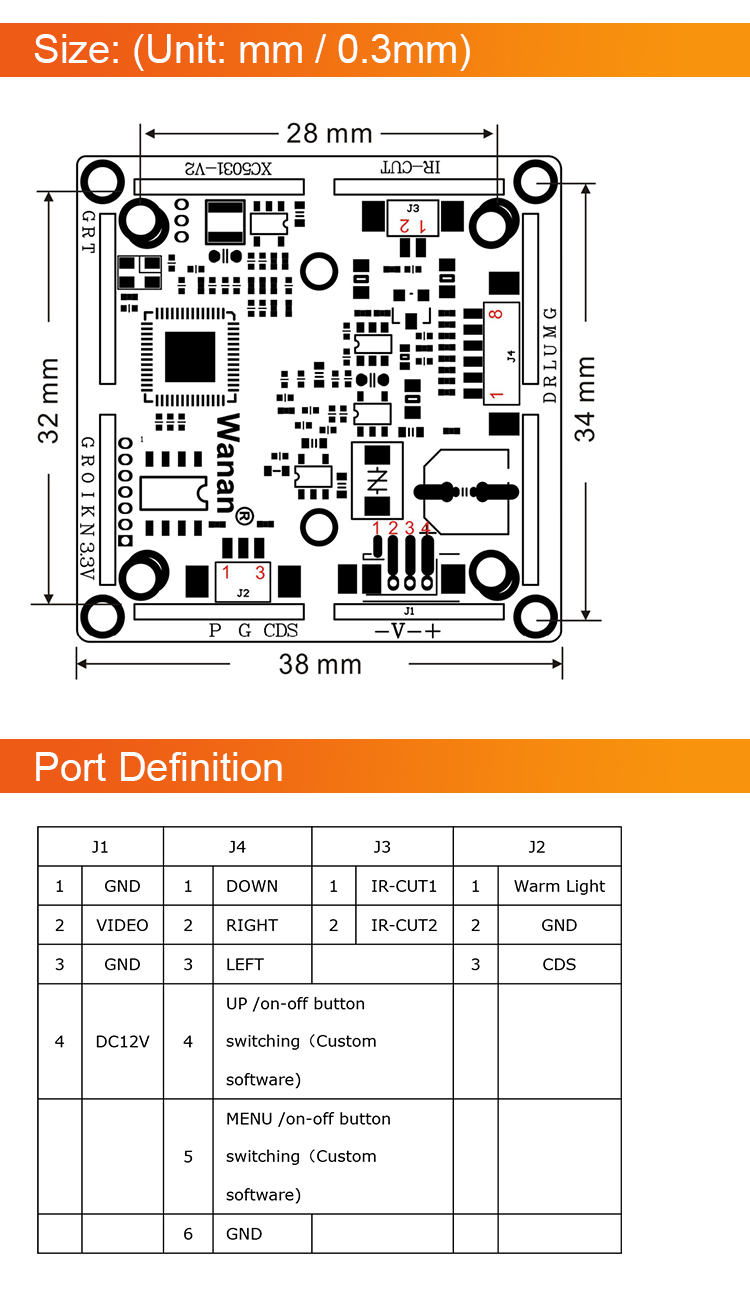

Size | 32*32/38*38（mm) |
