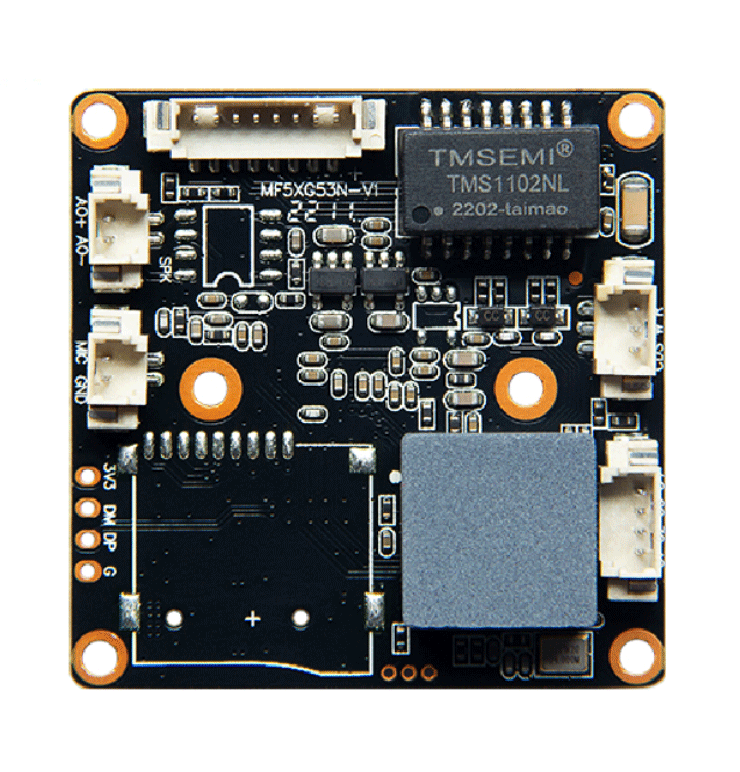

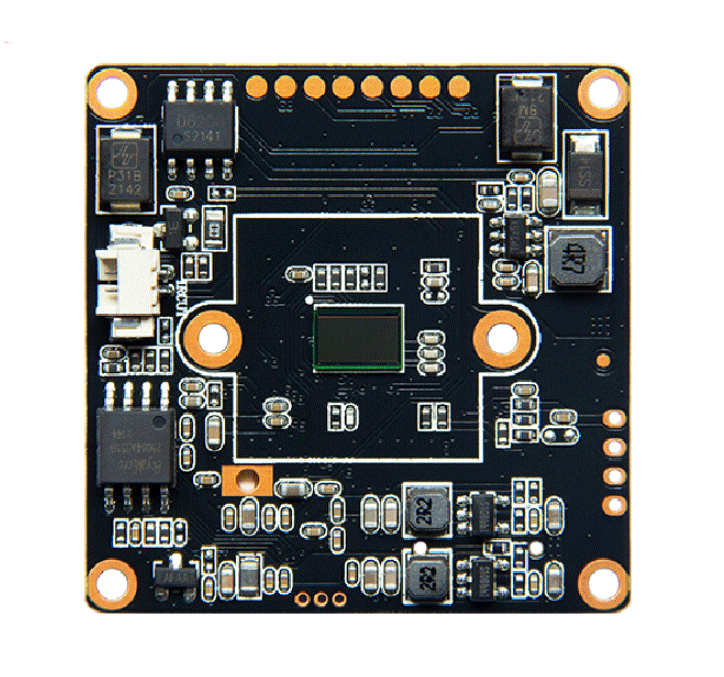

5MP PCB Board IP Camera Modules PA4 FH8852V200+GC5053 Night Vision Support IR LED Warm Led Dual Light
$7.00
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model No. | PA4 | |
Module | Fullhan 2K DSP+ 1/3" 5MP CMOS | |
LUX | Color 0.05Lux@F1.2;B/W 0.01Lux@F1.2 | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR;＞80db | |
Audio Input | 1CH MIC Input | |
Audio Output | Audio cable output ,with expandable built-in power amplifier circuit | |
LED Board Function | LED Board Driving Circuit, Dual Light PWM | |
IO port | RESET, IR CUT, Alarm Input/Output | |
Others | Support AF Motorized Lens | |
Coding Format | H.265&H.264 | |
Main Steam | 2880*1616 ,1-25 FPS/S | |
2560*1440 、2304*1296 、1920*1080 、1280*720、1-30 FPS/S | ||
Sub steam | 704*576 、640*480 、640*360 、352*288 ,1-30 FPS/S | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | Support Channel Name 、Date & Time 、Frame 、Resolution 、4 lines of character overlay | |
Data Record | Video, picture | |
Storage Method | Cycling Recording, Alarm Recording | |
Alarm Transfer | IO output, browser, management software | |
Protocol | NETCOM / ONVIF | |
Browser | Support IE6.0 and above browser(insert Web Server) | |
Mobile | Support iPhone 、iPad 、Android | |
Temperature | -30C - +60C | |
Humidity | 0% - 90% | |
Power | Built in POE/ DC12V- 110mA | |
power | 1.3W | |
size | 38* 38*10mm | |
Weight | 11g |
