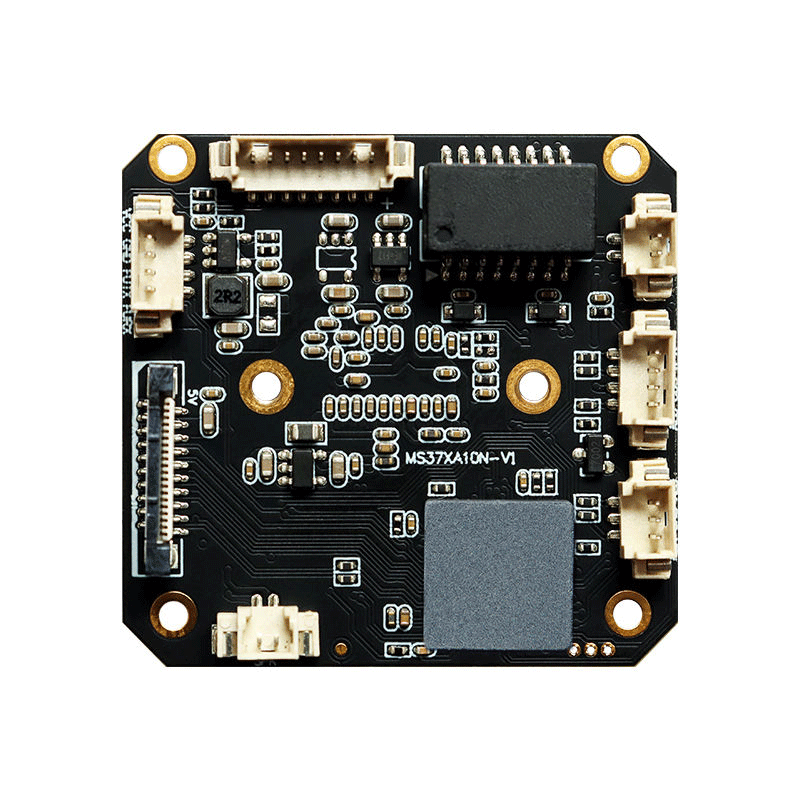

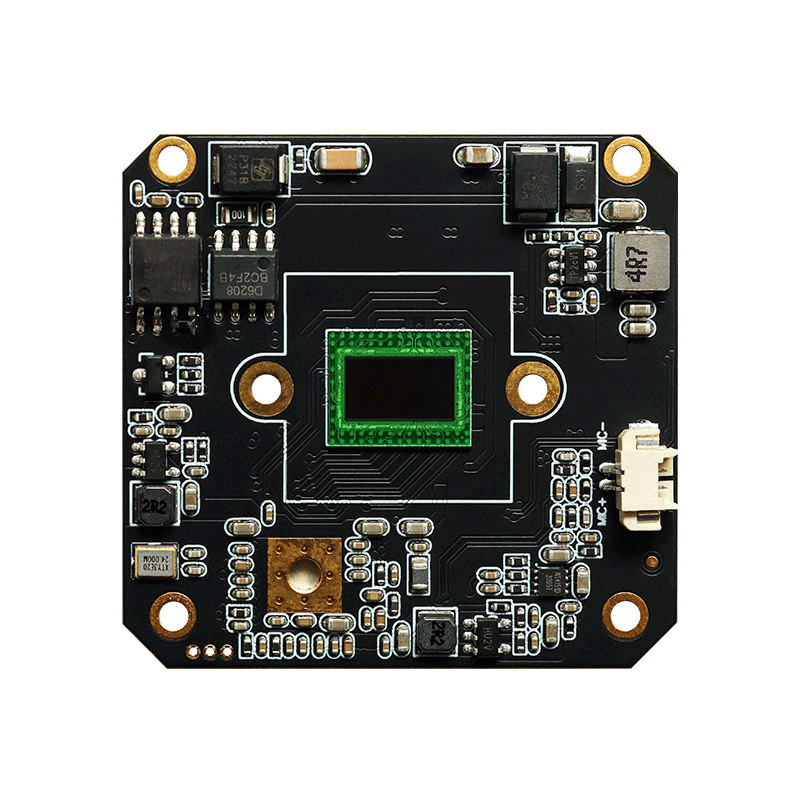

5MP 1/1.8" Sensor Camera OV5640 Cctv IP Camera Module Black light Mstar Sigmastar SC377 Camera PCB Board
$13.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
1/1.8" 5MP Black light CMOS with new ISP 2.5K DSP, single dimension with 42*40mm. Support IR Led, Warm/White Led, Dual Led. H.265+H.264 video coding. Support dual stream, mainstream is 2880*1664, sub-stream is D1, enabled with ONVIF protocol and full net com. With 0.5 algorithms, multiple algorithm customization. | |
Model No. | H5B |
Chip | Mstar ISP 2.5K DSP + 1/1.8'' 5MP CMOS |
Low Lux | Color 0.05Lux@F1.2; B&W0.005Lux@F1.2 |
S/N | ≥50dB(AGC OFF) |
DWDR | DWDR>80dB |
Audio Input | 1CH MIC Input |
Audio Output | SPK output(Max support speaker spec 3W 40Ω) |
LED Type | CDS IR LED, White Led, Warm Led (Support PWM) |
IO Function | RCUT,1CH RESET, Alarm In, Alarm Out, Reserved Port |
Others | Extra motorized zoom auto focus lens optional |
Coding Format | H.265,H.264 |
Mainstream | 2880*1664,1-30fps 2560*1440,2304*1296,19201080,1280720,1-30 fps |
Sub-stream | 704*576,800*448,640*480,640*360,352*288,1-30 fps |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support channel name, data&time, resolution& characters adding |
Data Record | Video, picture |
Storage Method | Cycling recording, Alarm recording |
Alarm Transfer | Browser, management software, lO output |
Protocol | ONVIF |
Browser | Support IE6.0 and above(lntemet web server) |
Mobile | Support IOS, Android |
Temperature | -20℃ to +60℃ |
Humidity | 0%-90% |
Power | DC12V/ 120mA |
Consumption | 1.5W |
Dimension | 42* 40*10mm(38*38mm hole) |
Weight | 17g |
