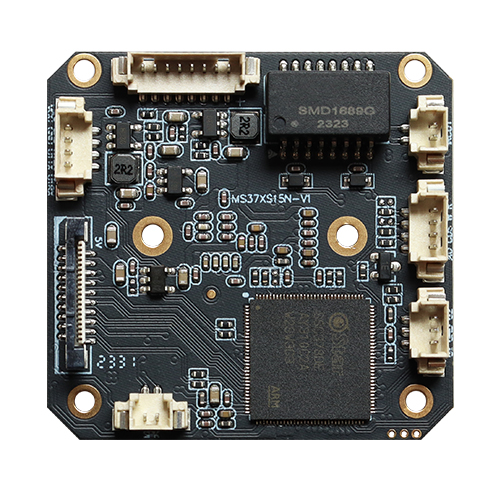

High Quality 4K 8MP IP Camera Board IMX415 CMOS Sensor Mstar 378 Network Camera PCB Security System IP Camera Module
$16.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | H8D |

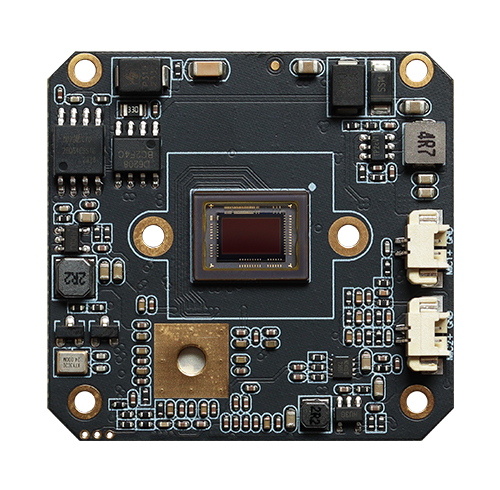

Sensor | 1/2.8＂SONY 8MP CMOS IMX415 |
DSP | Mstar SSC378 |
System | PAL/NTSC |
Illumination | 0.05Lux@F1.2; Black & White 0.005 Lux@F1.2 |
Shutter | AUTO |
S/N | ≥50db(AGC OFF) |
DWDR | DWDR>80db |
Audio Input | 2CH MIC Input |
Audio Output | Speaker output (Max support speaker spec 3W 4Ω) |
LED Type | CDS IR LED, White LED, Warm LED(Support PMW) |

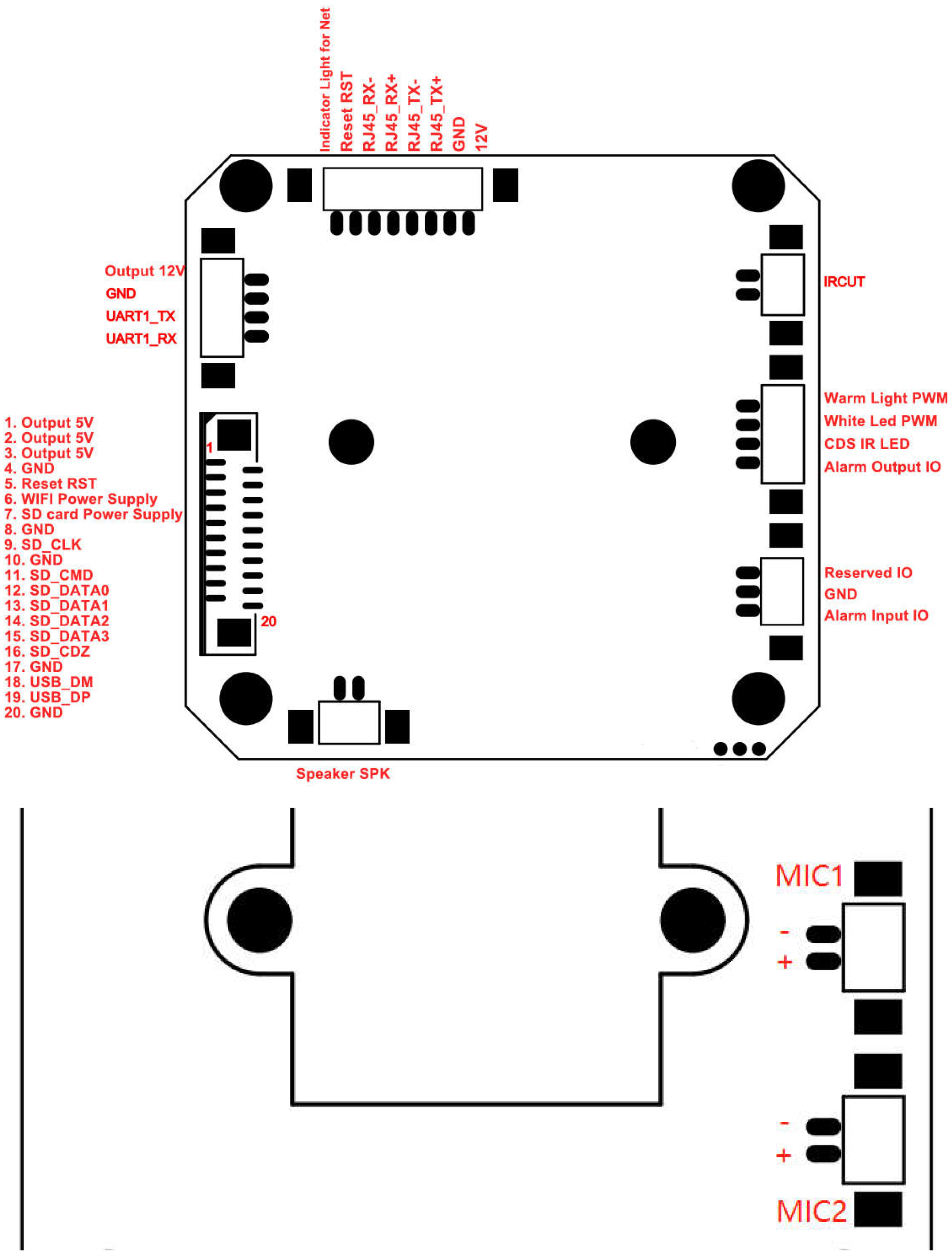

IO Port | IR-CUT, 1CH RESET, Alarm In, Alarm Out, Reserved Port |
Other | Extra Motorized Zoom Auto Focus Lens Optional |
Coding Format | H.265, H.264 |
Mainstream | 3840*2160,1-30fps 2880*1664, 2560*1440, 2340*1296, 1920*1080, 1280*720, 1-30fps |
Sub-stream | 704*576, 800*448, 640*480, 640*360, 352*288, 1-30fps |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support Channel Name,Date&Time,Resolution&4 lines characters adding |
Data Record | Video, picture |
Storage Record | Cycling Recording, Alarm Recording |
Alarm Transfer | Browser, management spftware, IO output |
Protocol | ONVIF |
Browser | Support IE6.0 and above browser(Internet Web Server) |
Mobile | Support IOS, Android |
Language | ENG/CHN1/ESP/FRA/CHN2/RUS/ITA /POL/POR /KRO |
Reset | Support |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V/150mA |
Dimension | 42*40*10mm |
Weight | 17g |
