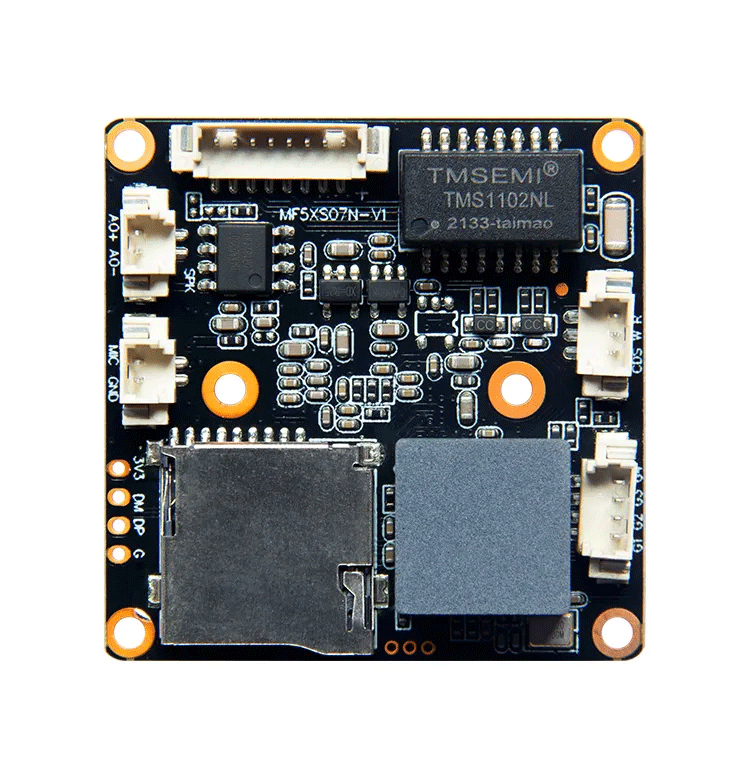

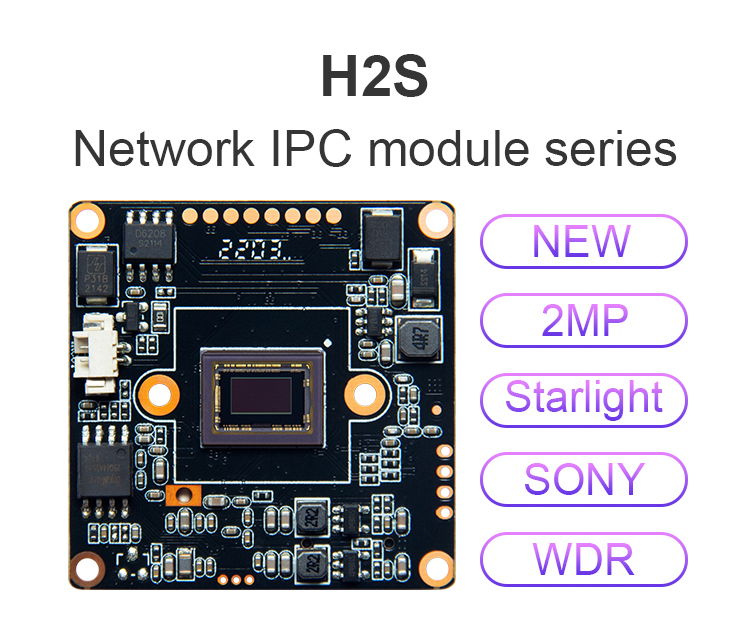

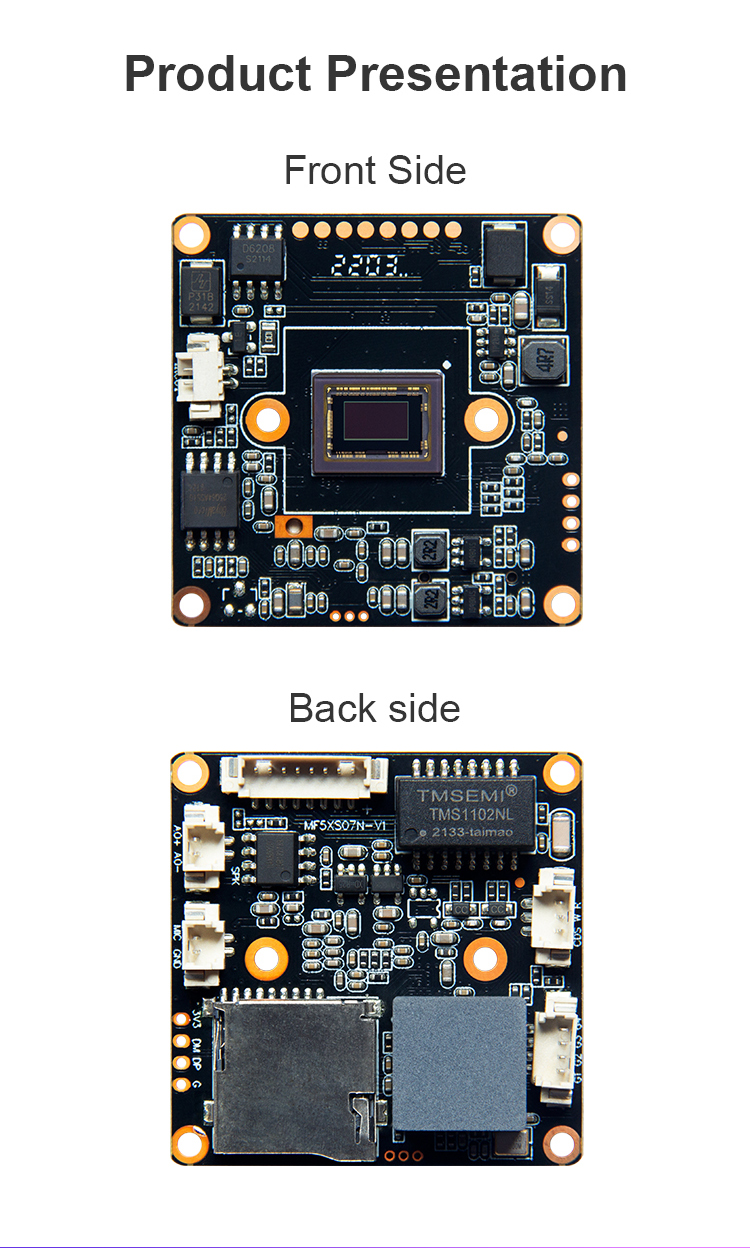

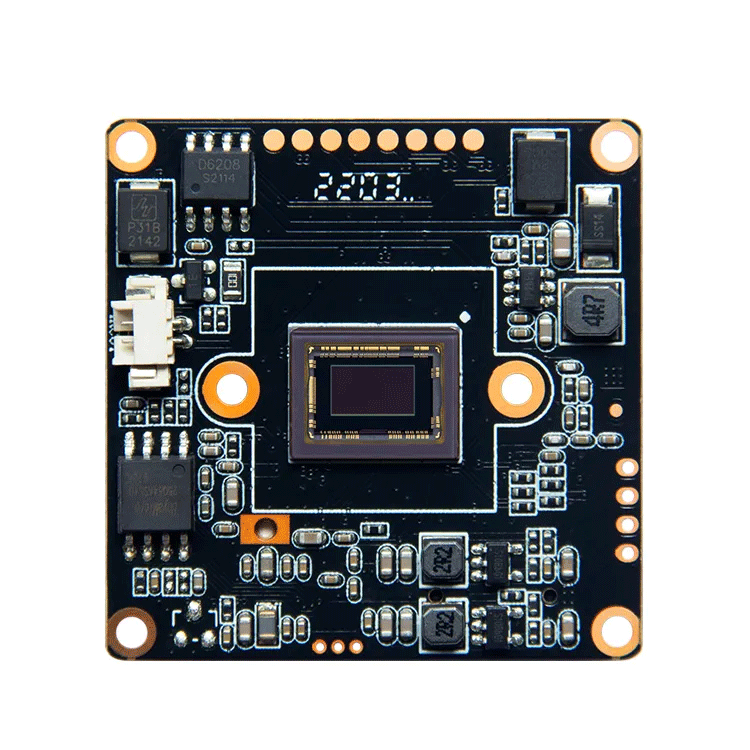

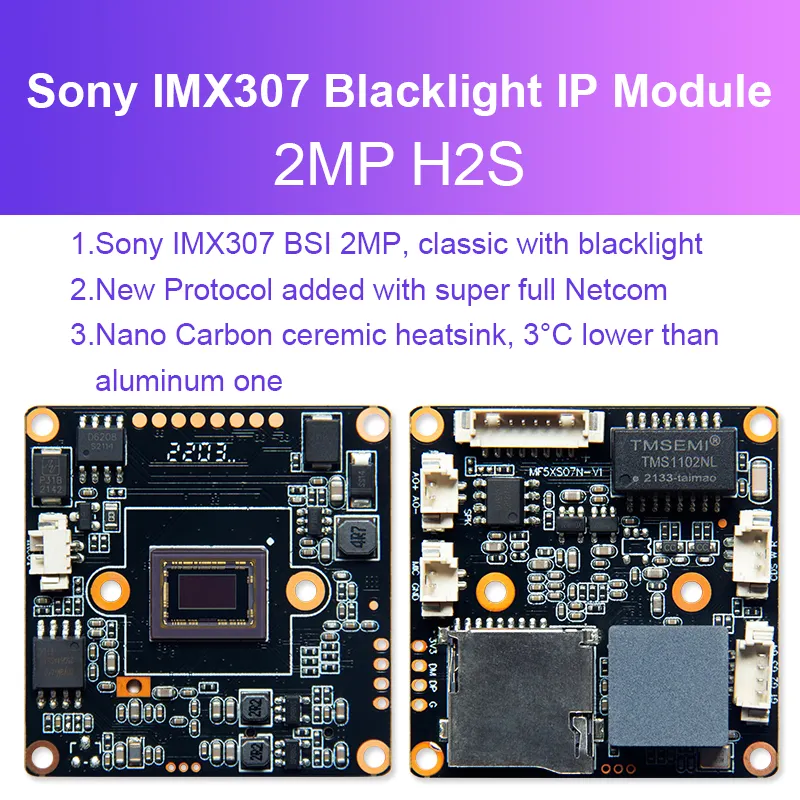

2MP IP Camera Module IMX307 Sensor CCTV IPC Board PCB Camera Module Shenzhen
$9.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | H2S |
Module | Fullhan 2K DSP+1/2.8" IMX307 |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR; ＞80db |
Module | Fullhan 2K DSP+1/2.8" IMX307 |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR; ＞80db |
Coding Format | H.265/H.264 |
Main Stream | 1920*1080，1-30FPS/S |
Main Stream | 1920*1080、1280*720，1-30FPS/S |
Sub Stream | 704*576、640*480、640*360、352*288，1-30FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support Channel Name, Date & Time, Resolution & characters adding |
Data Record | Video & Picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | ONVIF |
Mobile | Support IOS, Android |
Browser | Support IE6.0 and above browser (insert Web Server) |
Temperature | -30℃ - +60℃ |
Humidity | 0% - 90% |
Power | DC12V /120mA |
power | 1.5W |
size | 38* 38*10mm (without lens) |
Weight | 11g |
