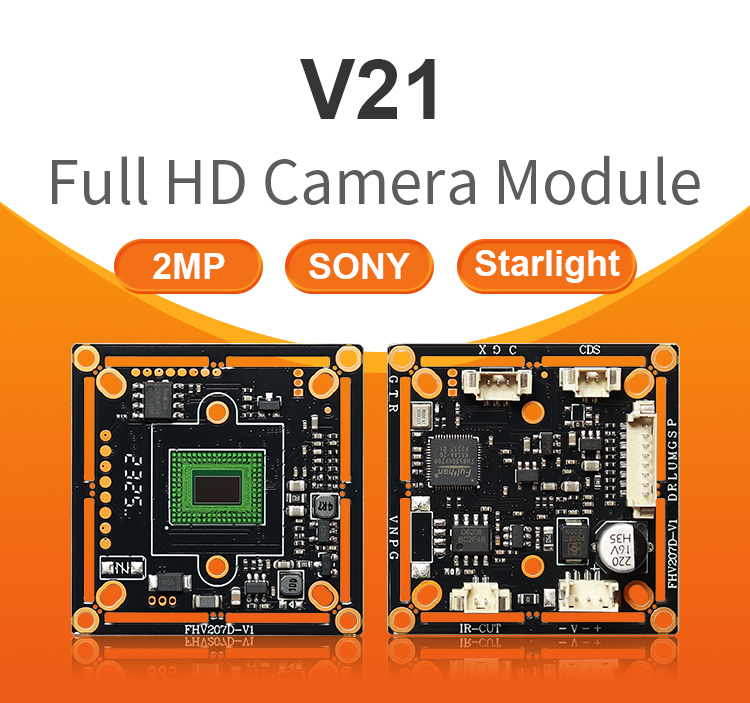

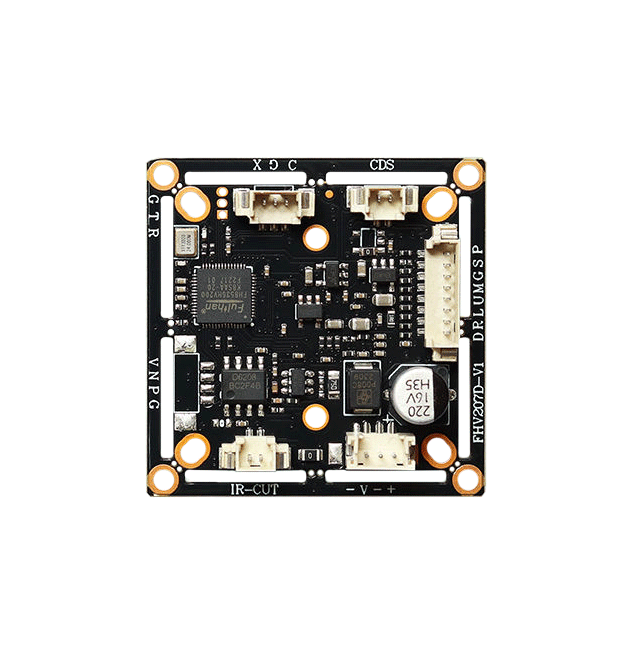

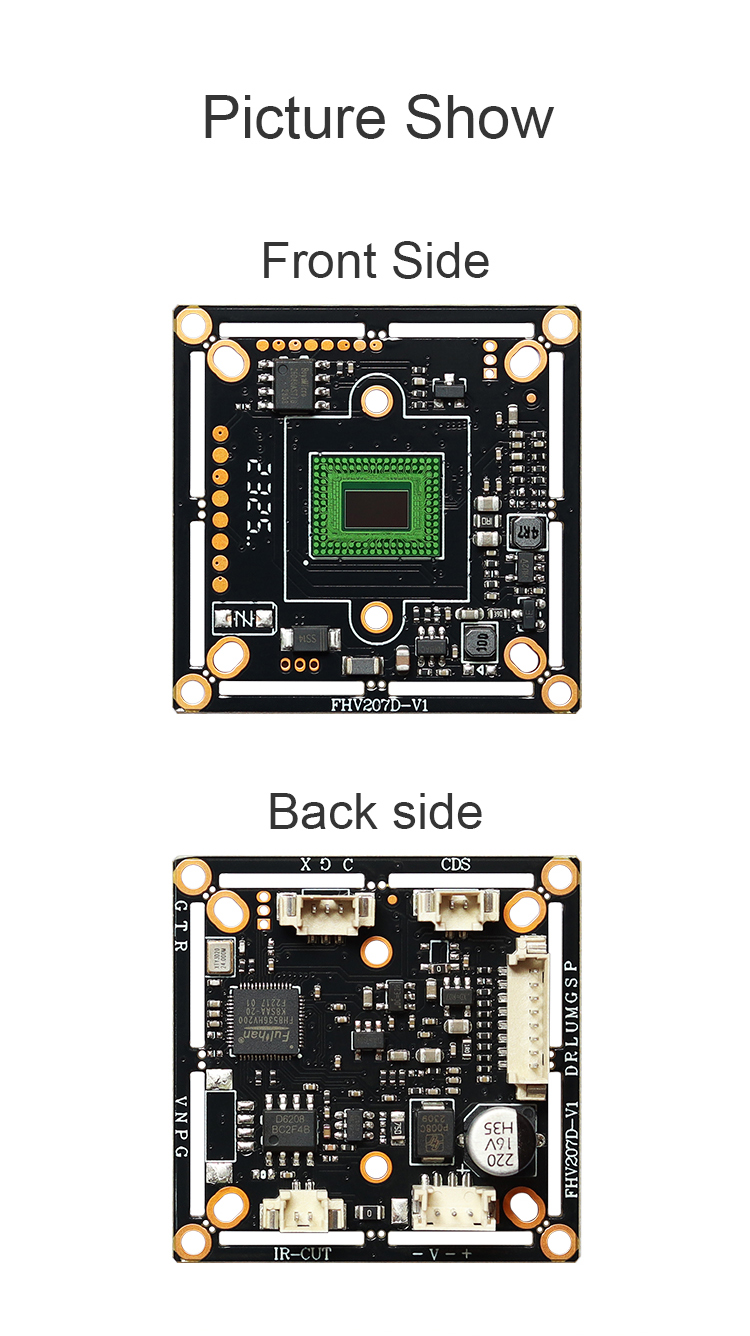

2MP AHD PCB IMX307 1080p Analog High Definition Camera Module 4 IN 1 AHD/CVI/TVI/CVBS AHD Camera Board
$6.30
Availability:
In stock
Out of stock
Variations
Product Description
Product Description

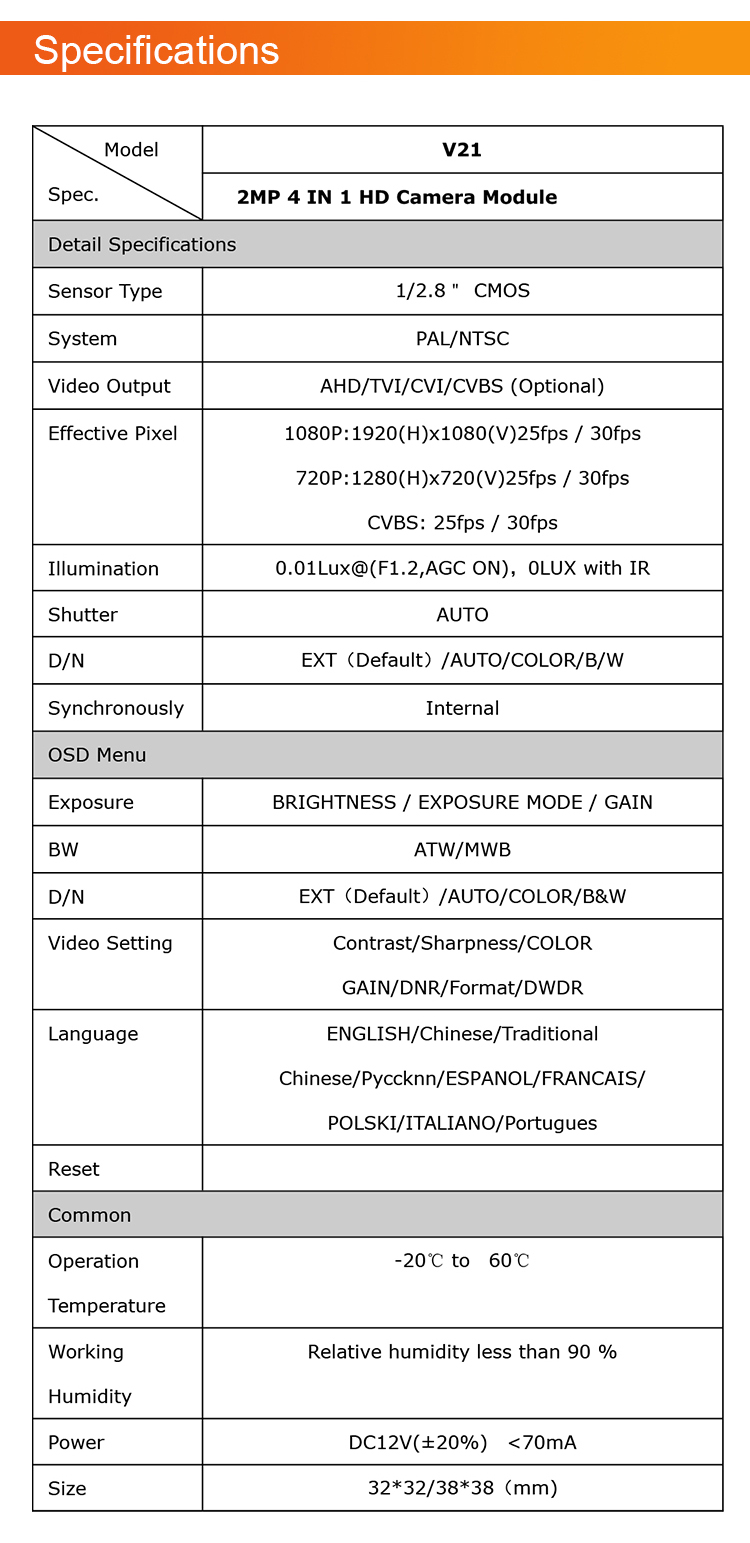

Specification
Model No. | V21 |

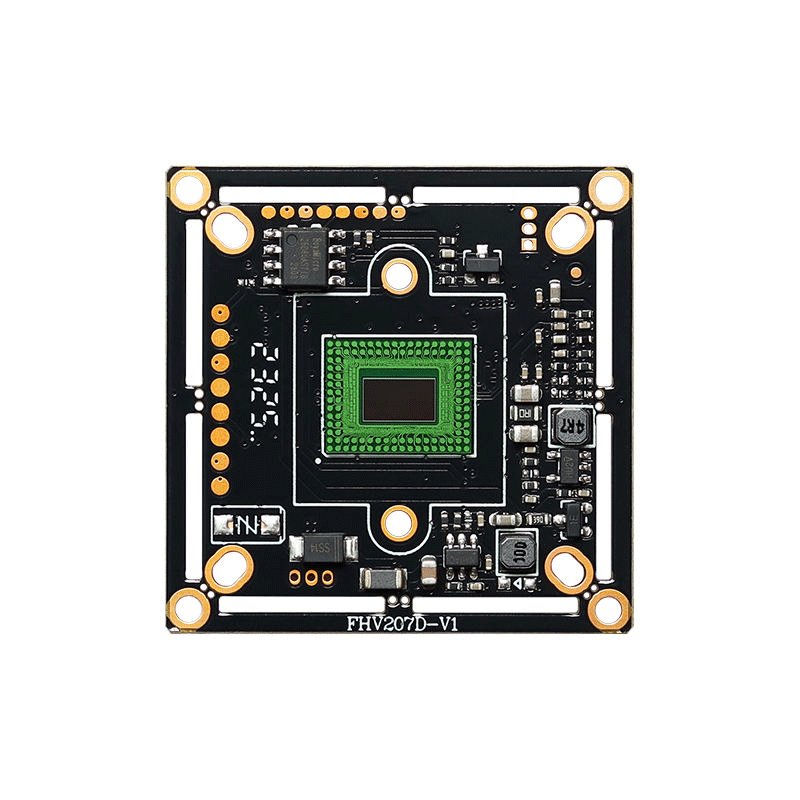

Sensor | 1/2.8＂IMX307 |
System | PAL/NTSC |
Effective Pixel | 25fps/s/30fps/s:1080P,720P,CVBS |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | Internal |

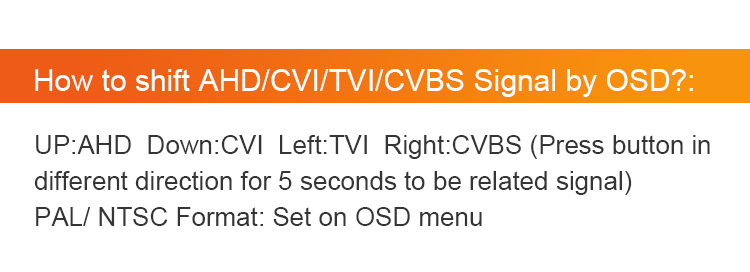

Video output | AHD/TVI/CVI/CVBS(optional) |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/WDR |
Language | ENG/CHN1/ESP/FRA/CHN2/Pyccknn /ITA /POL/POR /JPN |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 90mA |

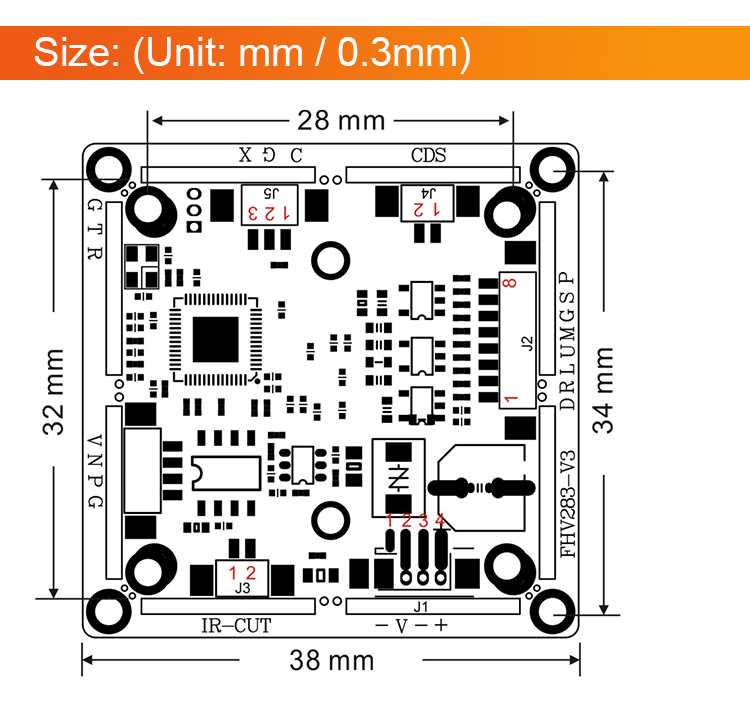

Size | 32*32/38*38（mm) |
