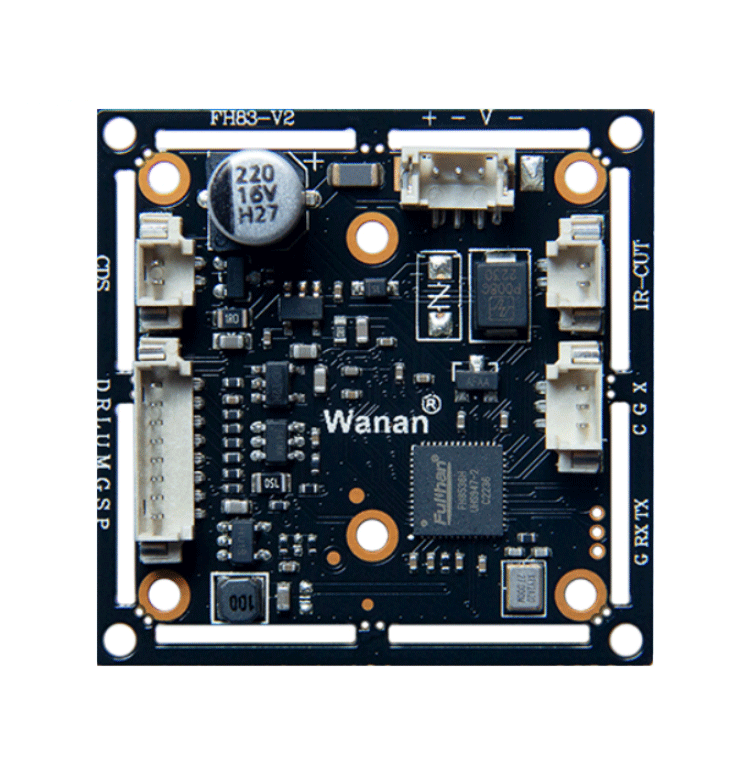

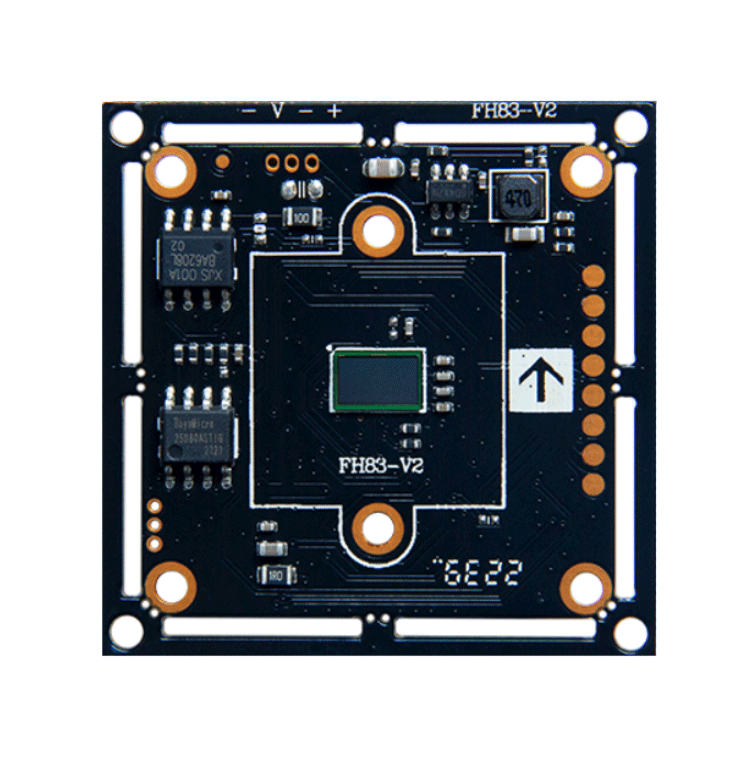

Analog HD Camera Module FH8536H GC2083 1080P 2MP CCTV Module Security Camera Board Support AHD/TVI/CVI PAL&NTSC
$2.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | FH83-V2 |
Module | FH8356H+ 1/3.02" GC2083 |
LUX | 0.01Lux@(F1.2,AGC ON), OLUX with IR |
Effective Pixels | 1920*1080(V) |
System Type | PAL/NTSC |
Frame Rate | 1080@25fps/1080P@30fps |
Shutter | AUTO |
Video Output | AHD/TVI/CVI/CVBS Optional |
Exposure | Brightness / Exposure Mode / Gain |
White Balance | Auto Tracking White Balance/Manual White Balance |
Day-night Mode | IR/Internal auto/Colour/Black&White |
Video Setting | Contrast / Sharpness / Saturation / Digital Noise Reduction / Video Format / Digital Wide Dynamic |
Language | ENGLISH/Chinese/ESPANOL/FRANCAIS/Traditional Chinese/Pyccknn/ITALIANO/EAAHNIKA/POLSKI/Portugues |
Reset | |
Temperature | -20C - +60C |
Humidity | 0% - 90% |
Power | DC12V (土20%)- 65mA |
size | 32*32mm/38* 38*10mm |
