2MP 1080P HD Security Camera Board Mini USB Camera Module Board Low Lux IP Camera Module Support Human Motion Tracking
$7.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification

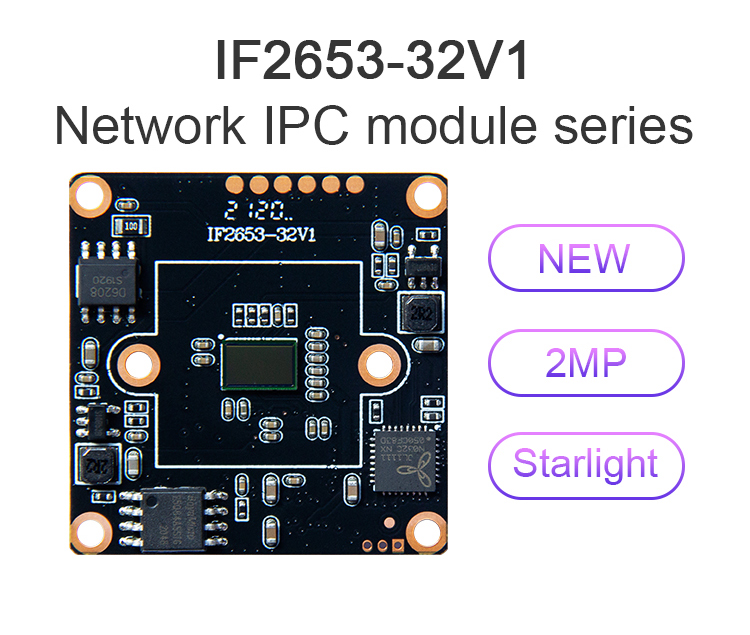

Model No. | IF2653-32V1 |
Module | FH8626+1/2.9" GC2053 |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR；＞80db |
Audio/Intercom Input | 1CH MIC Input/linear input |
Audio Output | 1CH output |
IO port | 1CH RESET |
Coding Format | H.264 |
Mainstream | 1920*1680，5-20FPS/S |
1280*720，5-20 FPS/S | |
Substream | 640*360 ,5-20 FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support channel name、Date、1 group of characters superposition adjustable |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | All Net Connect / ONVIF 2.6 |
Browser | Support IE6.0 and above browser Client Browser |
Temperature | -20℃ - +60℃ |
Humidity | 0% - 90% |
Power | DC12V /POE |
power | 1.5W |
size | 32* 32*10mm (without lens) |
