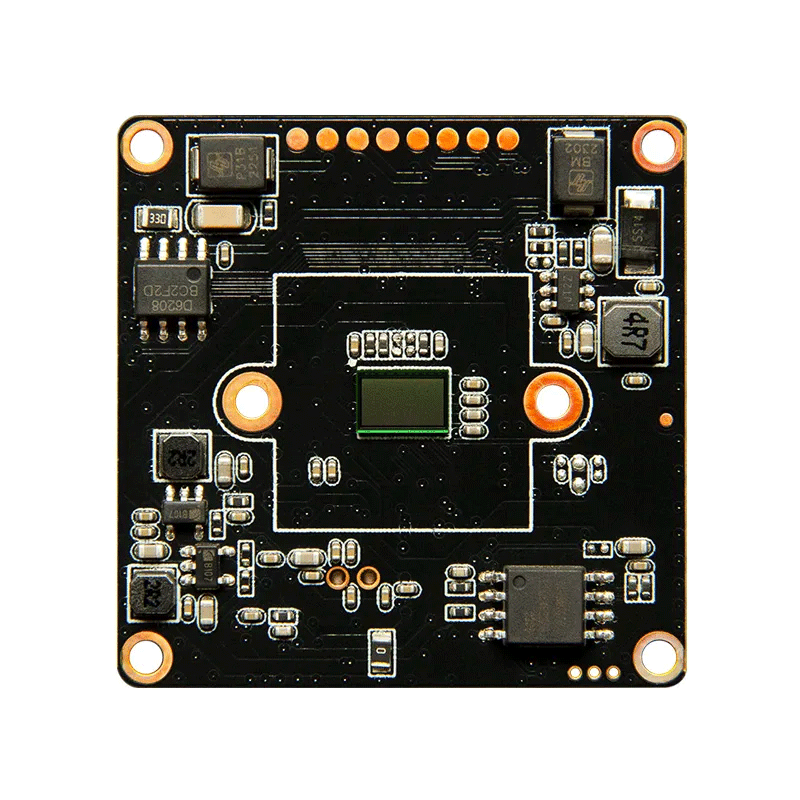

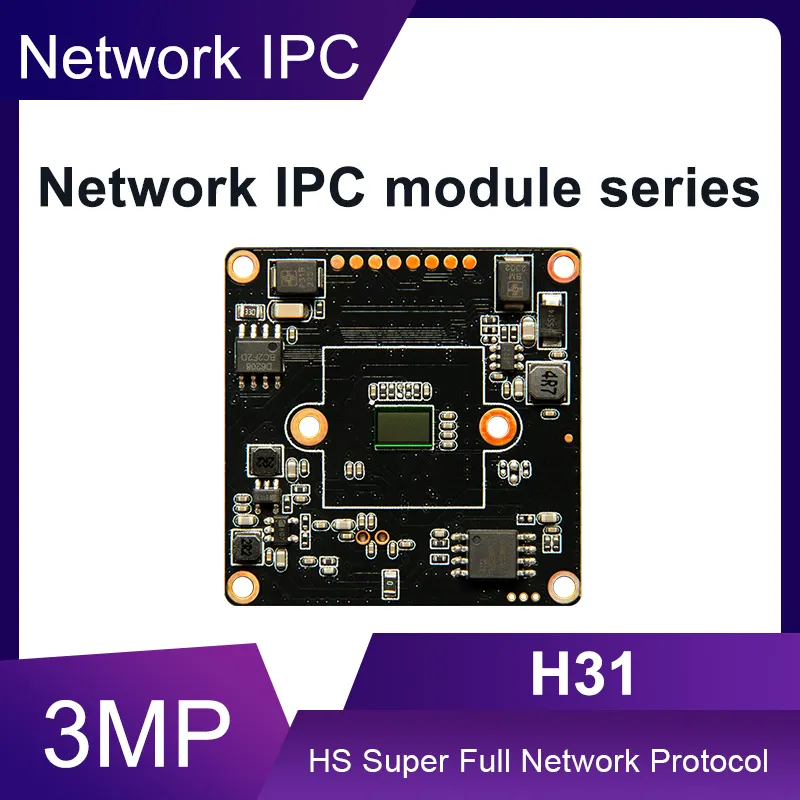

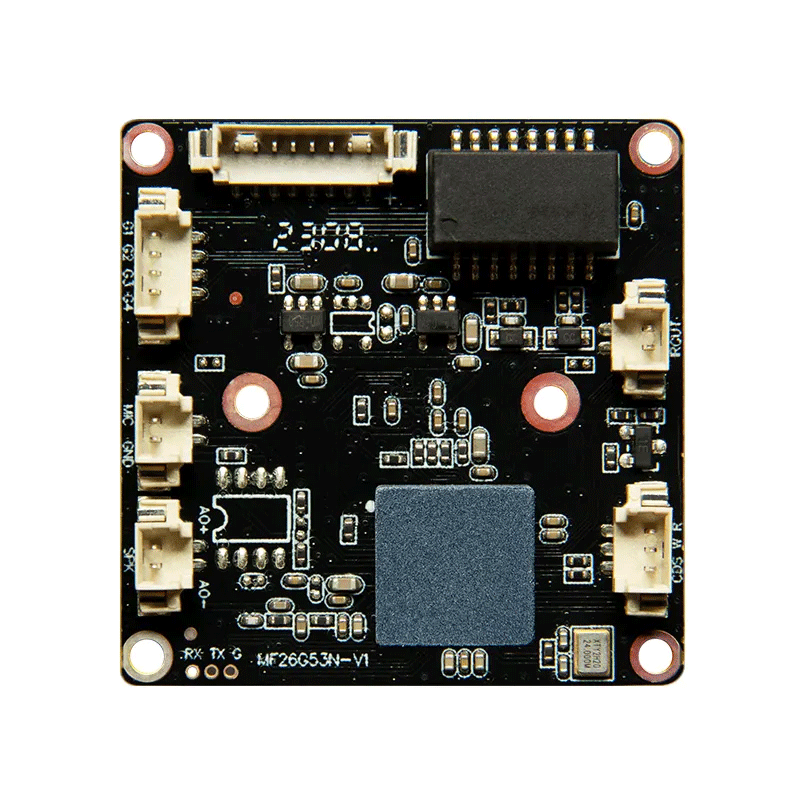

CCTV 3MP IP Camera PCB Board Module
$4.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | H31 | |
Module | Fullhan 2K DSP+1/3'' 4MP | |
LUX | Color 0.05Lux@F1.2;B/W 0.005Lux@F1.2 | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR; >80db | |
Audio Input | Audio MIC Input | |
Audio Output | 1CH Output,Speaker Optional | |
LED TYPE | CDS IR LED & Warm LED & White LED(Support PWM) | |
IO Function | IR CUT & 1CH Reset & Alarm In & Alarm Out | |
Others | Extra Motorized Zoom Auto Focus Lens Optional | |
Coding Format | H.264 | |
Main Steam | 2304*1296 | |
1920*1080,1280*720 | ||
Sub Steam | 704*576,800*448,640*480,640*360,352*288 | |
Video Coding Compression | 128Kbps-8192bps Continuous Ajustable | |
Subtitle Overlay | Support Channel Name&Date&Time&Resolution&4 lines Characters adding | |
Data Record | Video & Picture | |
Storage Method | Cycling Recording & Alarm Recording | |
Alarm Transfer | IO output & Browser & Management Software | |
Protocol | Standard ONVIF Protocol | |
Browser | Support IE6.0 and above browser(insert Web Server) | |
Mobile | Support IOS,Android Platform | |
Operation Temperature | -30℃ to +60℃ | |
Humidity | 0%-90% | |
Power | DC12V/90mA | |
Power | 1.1W | |
Size | 38*38*10mm | |
Weight | 10g |
