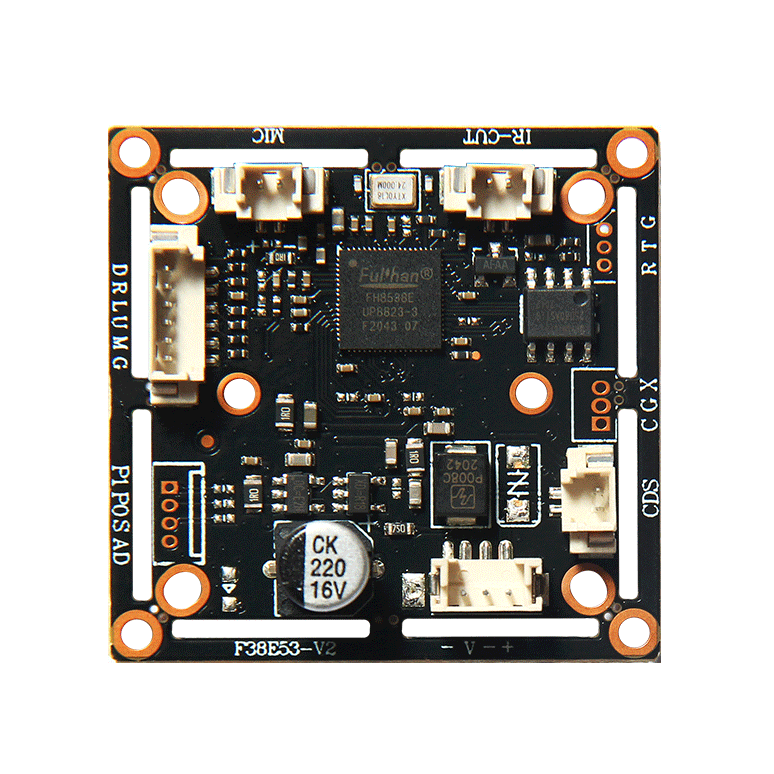

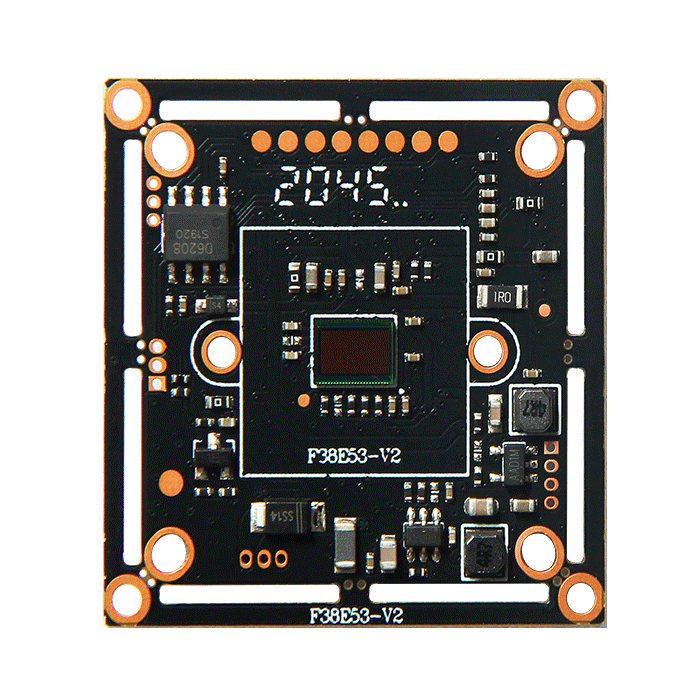

5MP Analog HD Camera Board CCTV Camera PCB Module Coaxial audio in TVI AHD Camera Module
$4.70
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | F38E53-V2 |
ISP | FH8538E |
System | PAL/NTSC |
Effective Pixels | 3480(H)*2160(V) |
LUX | 0.05Lux@(F1.2,AGC ON);OLUX with IR |
Shutter | AUTO |
D/N | External Control（Default）/Auto/Color/B&W |
Special Features | NIGHT VISION, Waterproof / Weatherproof |
Sensor | GC4053 |
Synchronization | Inter-sync |
Style | Dome Camera, BULLET CAMERA |
Frame Rate | 8M 12.5fps/15fps |
Video Output | AHD/TVI/CVI/CVBS Optional |
Exposure | Brightness/Exposure Mode/AGC |
Function | NIGHT VISION, Waterproof / Weatherproof |
Video Setting | Contrast/Sharpness/Saturation/DNR/Video Format/DWDR |
Video Compression Format | H.264 |
Data Storage Options | DVR |
Application | Outdoor, Indoor |
Customized support | Online technical support, Customized logo, Software reengineering, OEM, ODM |
Camera Type | AHD Analog Camera |
Resolution | 8MP |
Lens | startlight |
IR LED | Warm Supplemental Light |
Operating Temperature | -20C - +60C |
Humidity | 0% - 90% |
Power | DC12V—80MA |
size | 38* 38*10mm |
