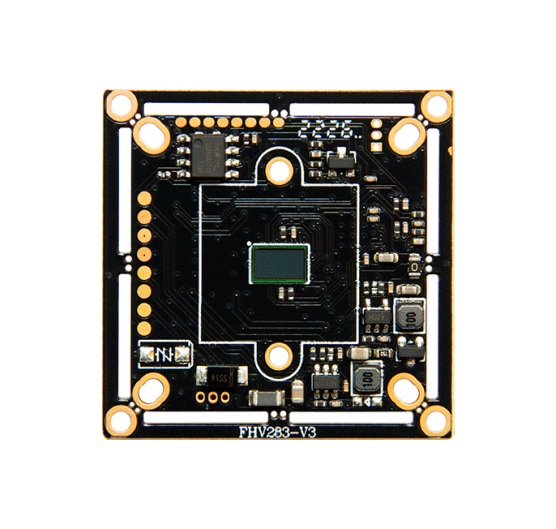

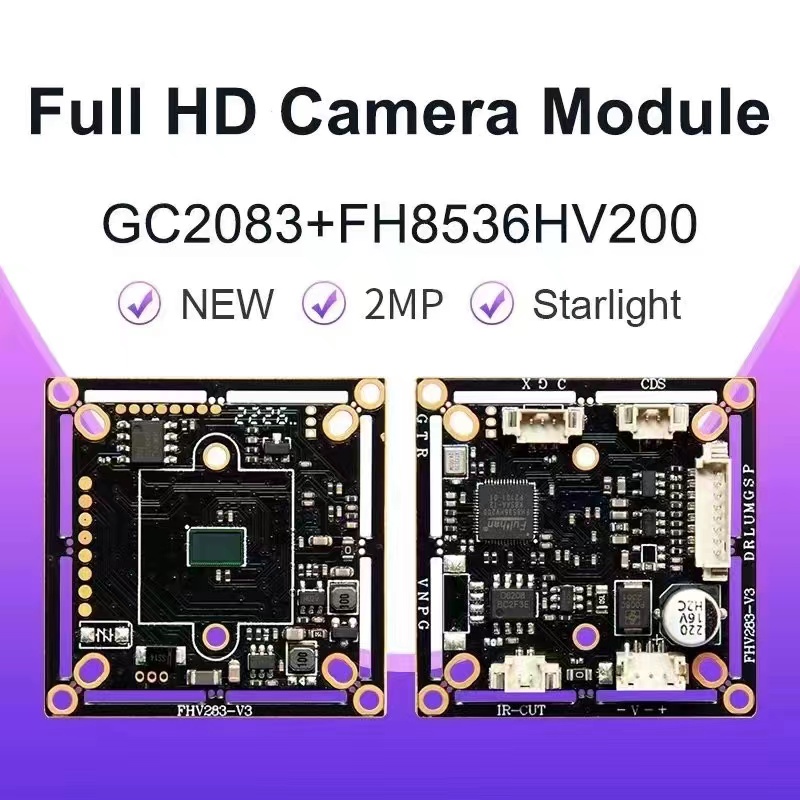

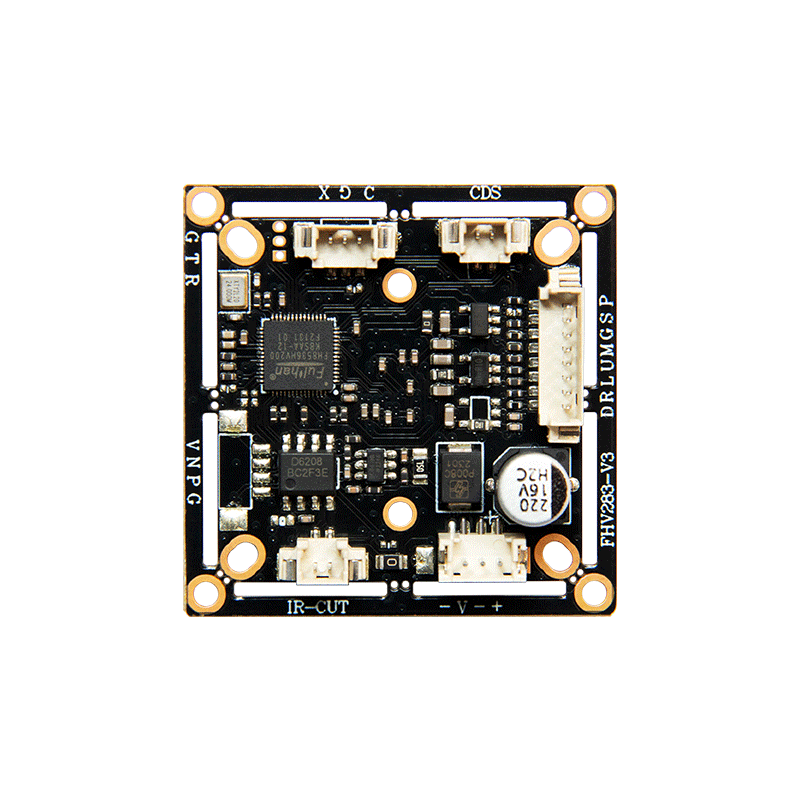

2MP AHD Camera Module PCB Board CCTV Camera System Security Night Vision 1080p Lower Power Consumption Heat Resistant
$2.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Module | FH8856V200+1/3" GC2053 | |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR; ＞80db | |
Audio Input | 1CH MIC Input | |
Audio Output | 1CH Output, Speaker Optional | |
IO port | 1CH RESET | |
SD card | Not support now | |
WIFI | NO | |
Main Stream | H.265/H.264 | |
Main Stream | 1920*1080,1-15FPS/S | |
Sub Stream | 1280*720,5-25 FPS/S | |
Sub Stream | 704*576、640*480、640*360、352*288, 5-25FPS/S | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Image Adjustment | Brightness, contrast, saturation, sharpness | |
Subtitle Overlay | Support Channel Name、Date & Time .5 groups of characters superposition adjustable | |
Data Record | Video,picture | |
Storage Method | Cycling Recording, Alarm Recording | |
Alarm Transfer | IO output, browser, management software | |
Protocol | All Net Connect / ONVIF 2.6 | |
Mobile | Support IOS, Android | |
Browser | Support IE6.0 and above browser Client Browser | |
Temperature | -20℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC5V | |
power | 1.5W | |
size | 38* 38*10mm (without lens) | |
Weight | 0.06kg | |
