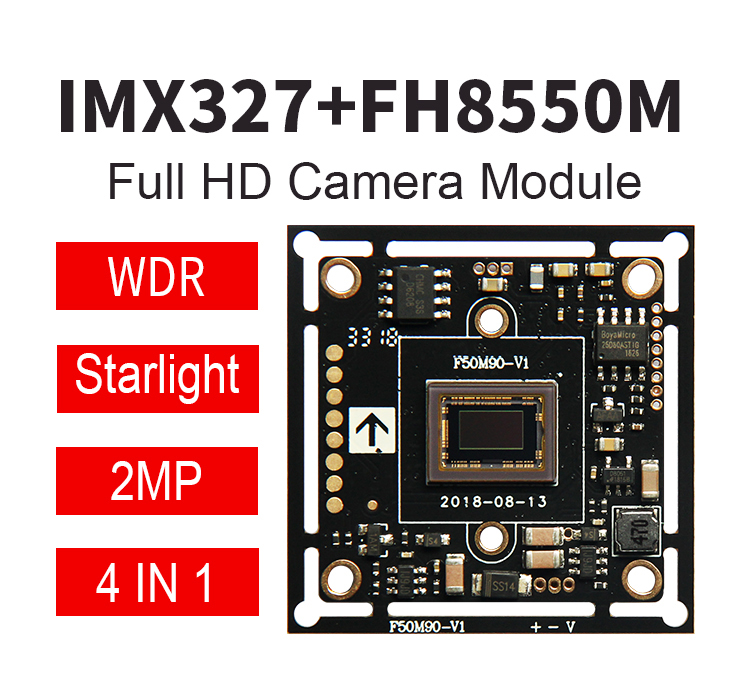

2MP IMX327 AHD Camera PCB Board Customized 1080P IR Night WDR Outdoor Camera CCTV High Quality Indoor Camera PCB Boa
$10.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | F50M90-V1 |
Spec. | 2MP 4 in 1 WDR coaxial high-definition camera module |
Sensor/DSP | 1/2.8＂ IMX327+FH8550M |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI/CVBS switch |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N MODE | Infrared/Internal AUTO/COLOR/B&W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/WDR |
Language | ENGLISH/CHN1/ESPANOL/CHN2/RUS/FRANCAIS/POLSKIM/PORTUGUES/Japanese/ITALIANO/ |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 95MA |

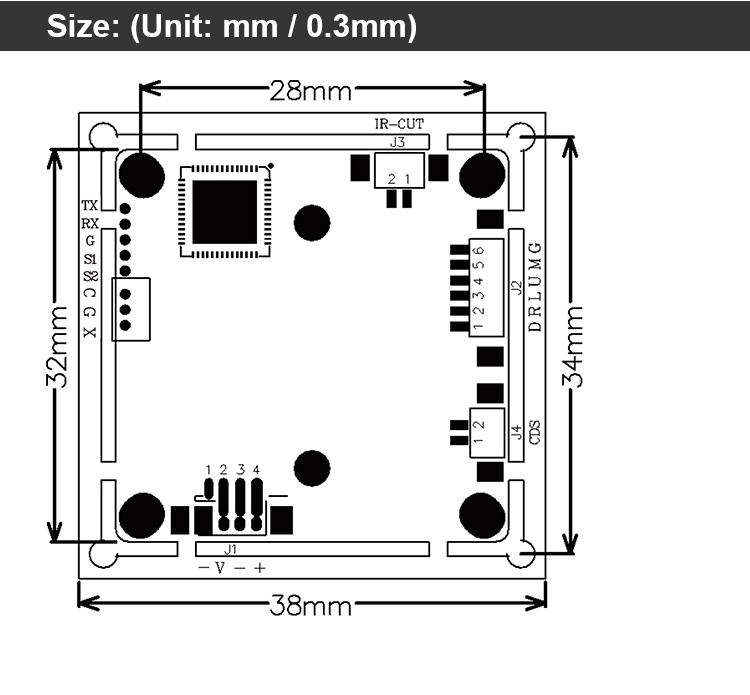

Size | 32*32/38*38（mm） |
