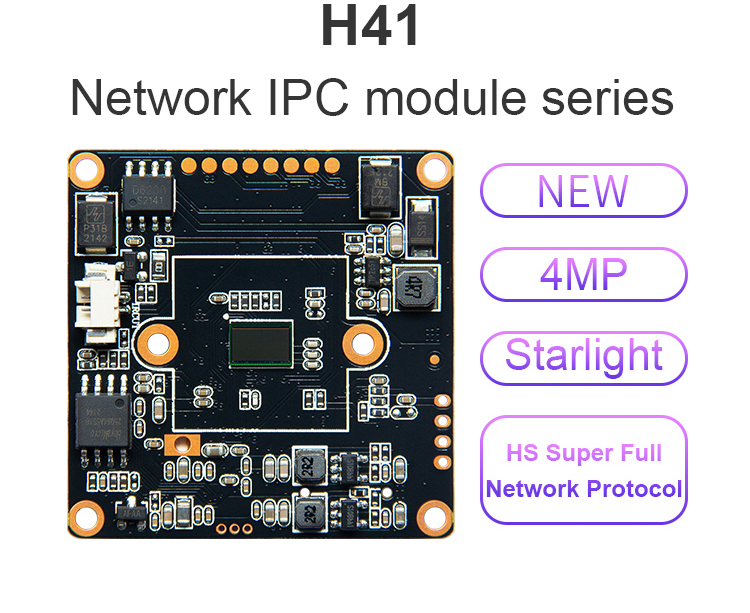

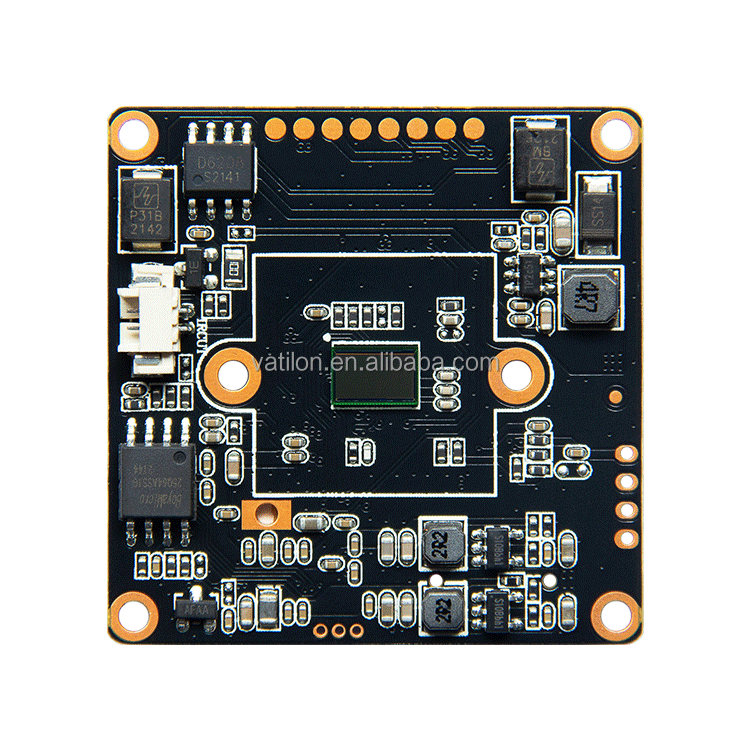

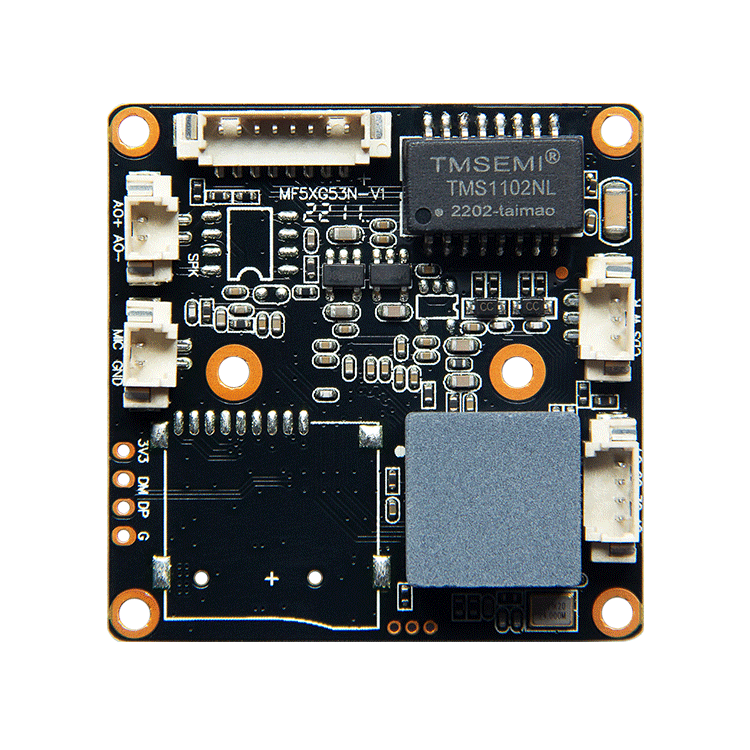

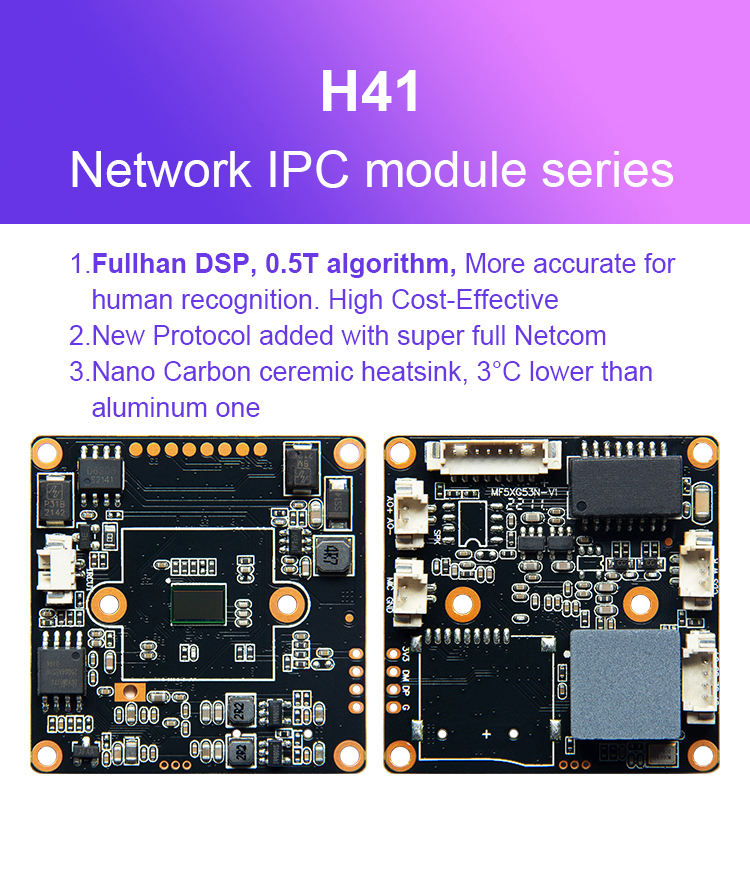

4MP IP Camera Board H41 Camera Module Network Camera with Starlight and Warm Light Dual Light
$6.20
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | H41 | |
Module | Fullhan 2K DSP+1/2.9"4MP CMOS | |
LUX | Color 0.05Lux F1.2; Black & White 0.005Lux F1.2; | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR; ＞80db | |
Audio Input | Audio MIC Input | |
Audio Output | 1CH Output, Speaker Optional | |
LED Type | CDS IR LED, Warm LED, White LED (Support PWM) | |
IO Function | IR CUT, 1CH RESET, Alarm In, Alarm Out | |
Others | Extra Motorized Zoom Auto Focus Lens Optional | |
Coding Format | H.265/H.264 | |
Main Stream | 2560*1440,1-25fps/s | |
Main Stream | 2304*1296,1920*1080,1280*720,1-30fps/s | |
Sub Stream | 704*576,640*480,640*360,352*288,1-30fps/s | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | Support Channel Name, Date & Time, Resolution & 4 lines characters adding | |
Data Record | Video & Picture | |
Storage Method | Cycling Recording, Alarm Recording | |
Alarm Transfer | IO output, browser, management software | |
Protocol | ONVIF | |
Mobile | Support IOS, Android Platform | |
Browser | Support IE6.0 and above browser (insert Web Server) | |
Temperature | -30℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC12V /110mA | |
power | 1.3W | |
size | 38* 38*10mm | |
Weight | 11g |
