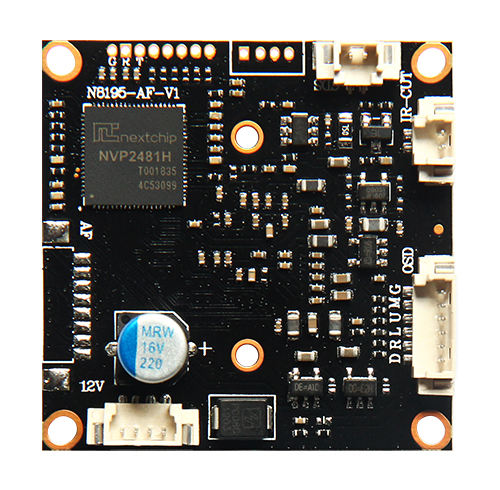

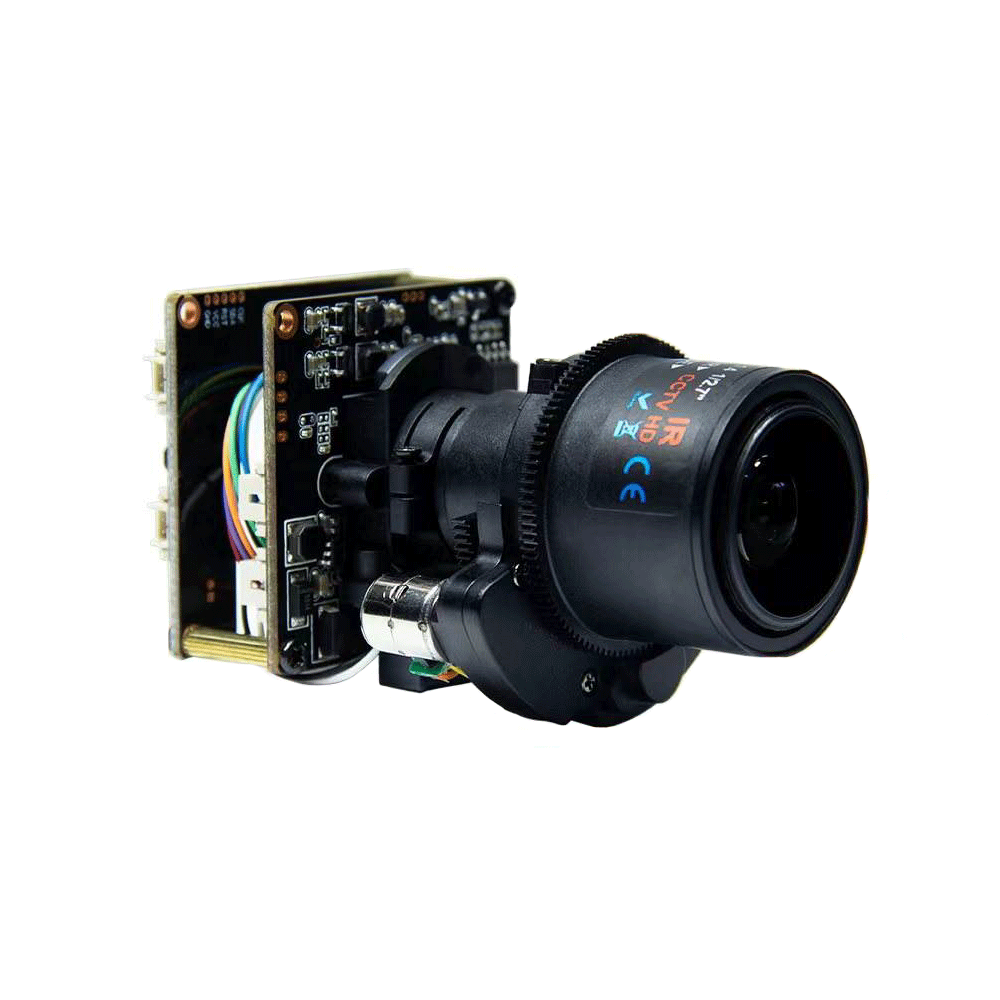

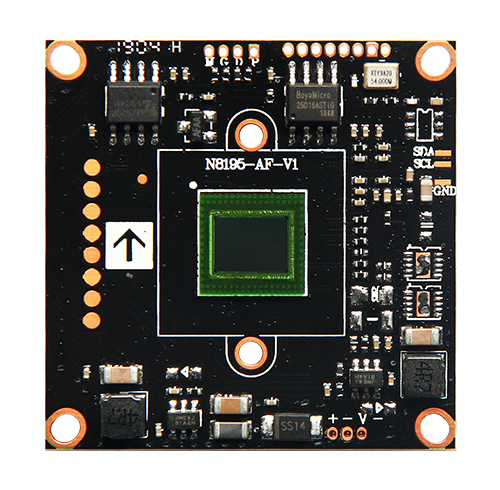

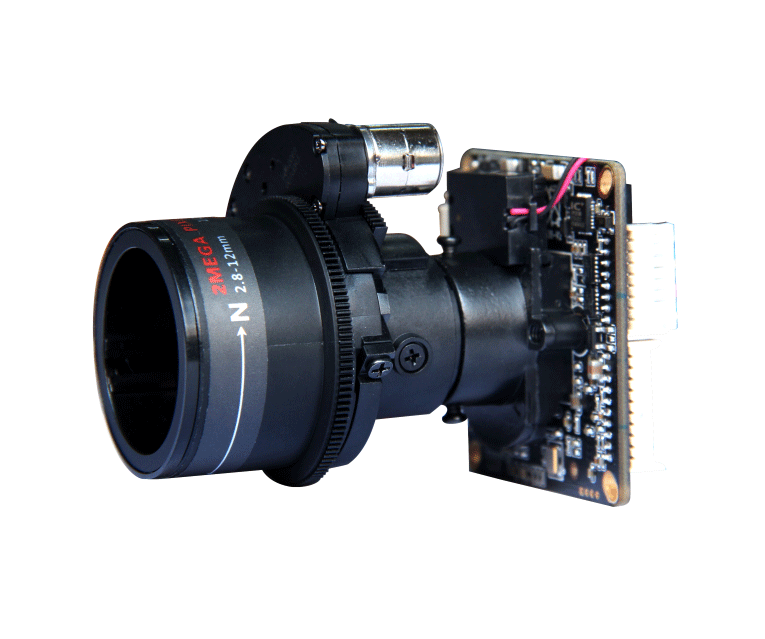

8MP 4K Camera PCB Board OV12895+NVP2481H Auto Focus & Motorized Zoom Lenses 3DNR Customized Camera Module
$19.70
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | N8195-AF-V1 |
Spec. | 8MP 4 IN 1 Coaxial Camera Module |
Sensor | 1/2.3＂OV12895+NVP2481 |
System | PAL/NTSC |
Effective Pixel | 3480(H)x2160(V) |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 800M PAL:12.5fps / NTSC:15fps |
Video output | AHD/TVI/CVI/CVBS switch |
Lens Mode | Manual Lens/DC Lens |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N | EXT/AUTO/COLOR/B&W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR |
Noise Reduction | 2D NR/3D NR |
Function | Color AGC/Edge Brightness Compensation/Bad Point Removal |
Language | ENG/CHN1/ESP/FRA/CHN2/RUS/ITA /POL/POR /KRO |
Reset | Support |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 130mA |

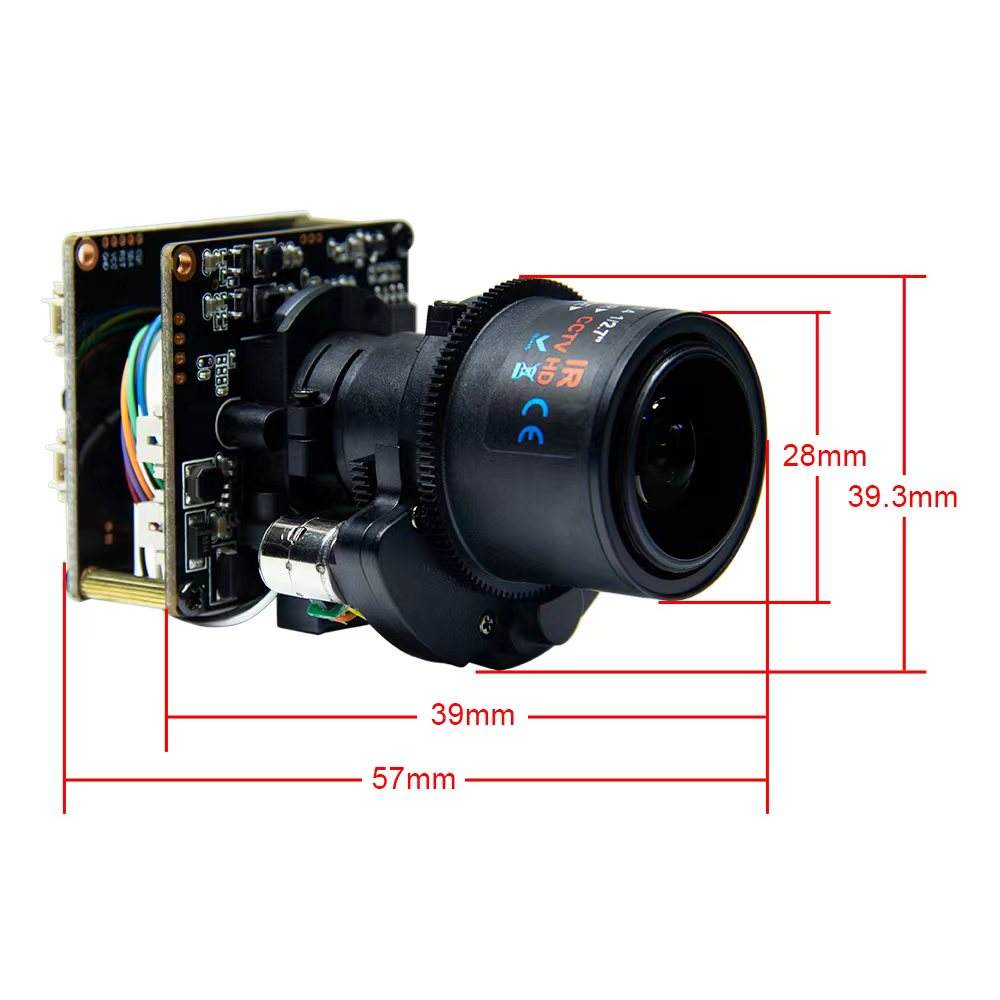

Size | 38*38（mm) |
