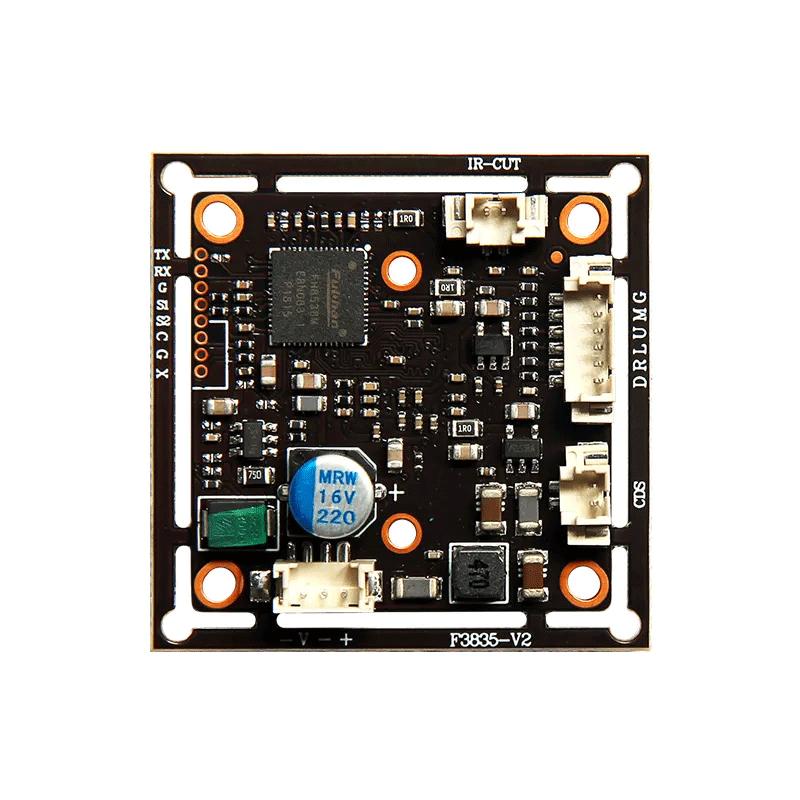

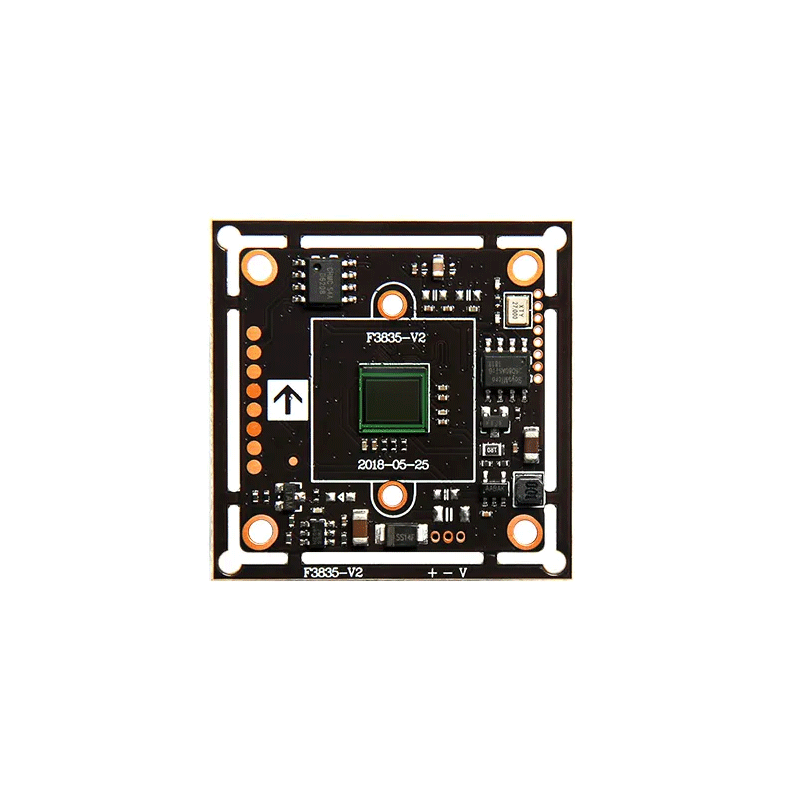

5MP IMX335 AHD Camera Module Camera Board Support Warm Light IR Light Dual Light PCB Module
$8.30
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | F3835-V2 |
Spec. | 5mp 4 IN 1 Camera Module |
Sensor | 1/2.8” IMX335 |
DSP | FH8538M |
System | PAL/NTSC |
Effective Pixel | 2560(H)x1920(V) 5mp 4：3 2560(H)x1440(V) 4mp 16：9 |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/COLOR/B/W |
Synchronously | Internal |
FPS | 5MP@20fps/12.5fps / 4MP@25fps/30fps/15fps |
Video output | AHD/TVI/CVI can be switch |
Exposure | Shutter/AGC/Brightness |
AWB | ATW/MWB |
DAY-NIGHT | INFRARED/COLOR/B&W |
Video Setting | Contrast/Sharpness/Color Gain/DNR/D-WDR |
Video Output | AHD:5MP20/12.5/4MP25/30/15,CVBS:PAL/NTSC TVI:5MP20/12.5/4MP25/30/15,CVI:4MP25/30 |
Language | Chinese/English |
Reset | Support |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than90 % |
Power | DC12V(±20%) - 70MA |

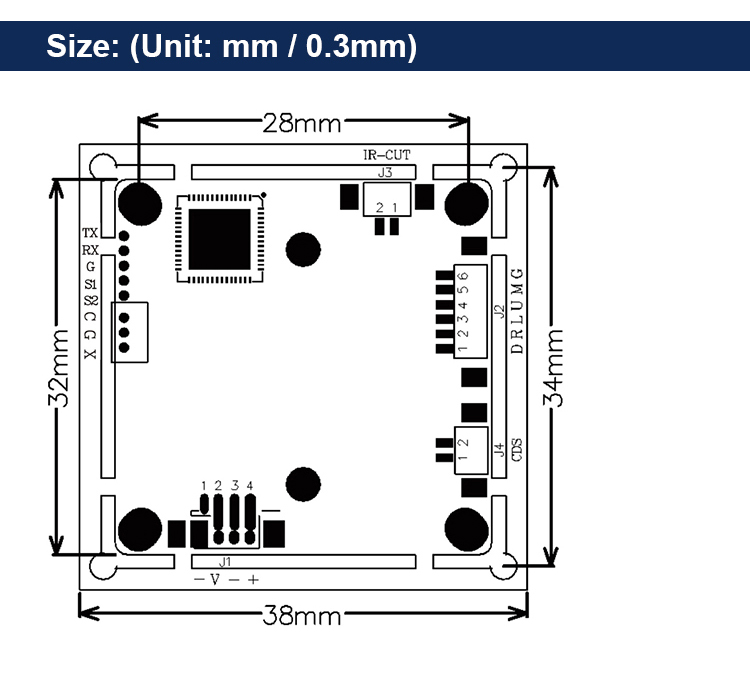

Size | 32*32/38*38（mm） |
