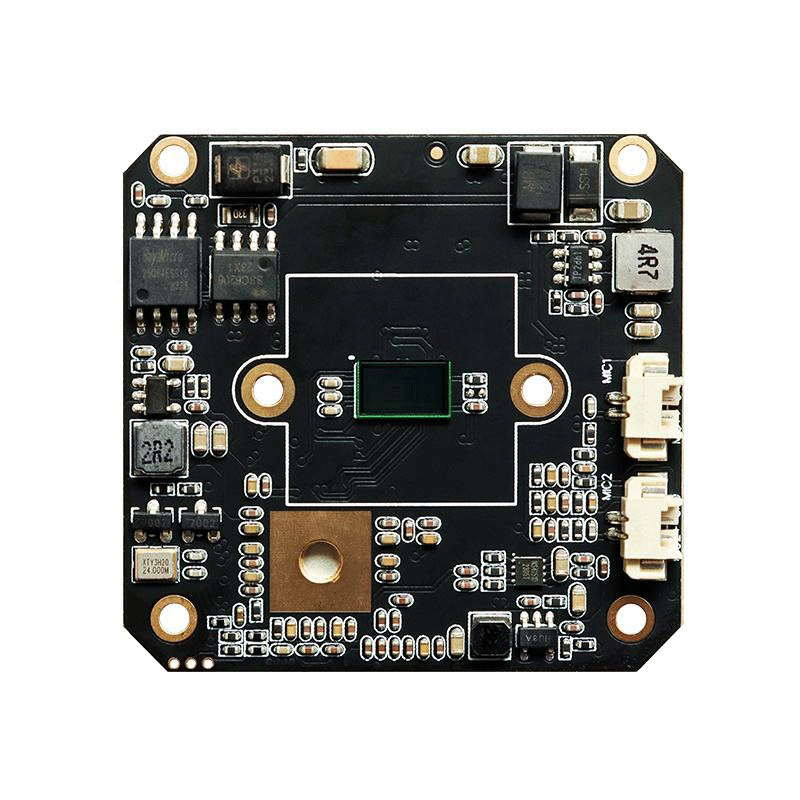

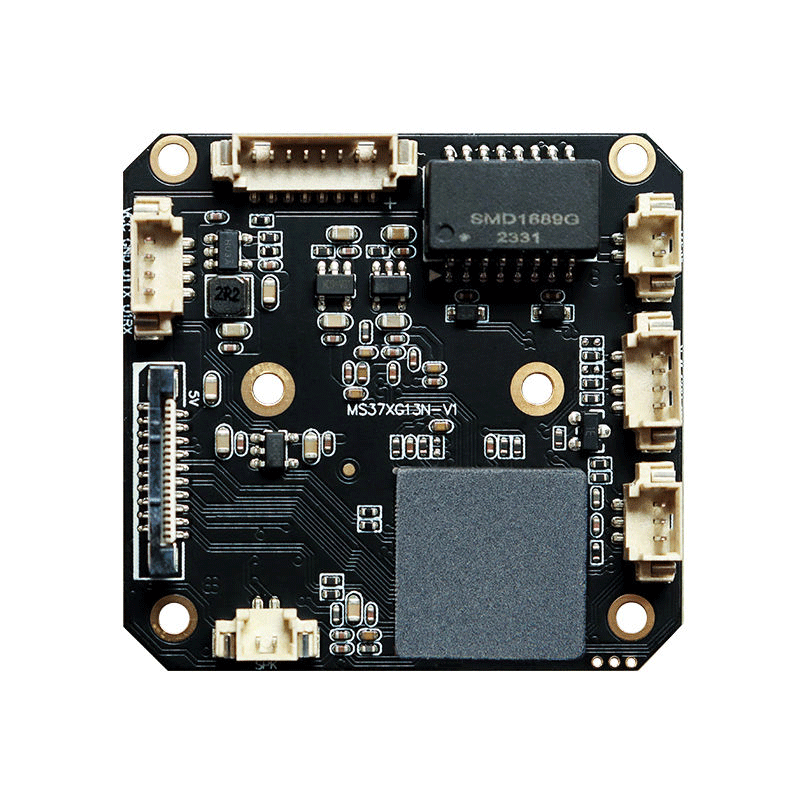

8MP4K 30FPS CCTV Camera PCB Board Sony IMX415 Sensor with Mstar DSP and Full Resolution Snap
$14.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | H81 |
Module | New ISP 4K DSP+1/2.7" 8MP CMOS |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR; ＞80db |
Audio Input | 1CH MIC Input |
Audio Output | 1CH MIC output, Speaker Optional |
LED Board Function | LED Board Driving Circuit, Dual Light |
IO port | 1CH RESET, IR CUT, Alarm Input/Output |
Others | Bulit-in POE, Support Standard POE Protocol |
Coding Format | H.265/H.264 |
Main Steam | 3840*2160, 1-30 fps;2880*1664,; 2560*1440，1-30FPS/S 2304*1296、1920*1080、1280*720，1-30 FPS/S |
Sub steam | 704*576、800*448、640*480、640*360、352*288，1-30FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support Channel Name、Date & Time、Frame、Resolution、4 lines of character overlay |
Data Record | Video, picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | NETCOM / ONVIF 2.6 |
Mobile | Support IOS, Android |
Browser | Support IE6.0 and above browser(insert Web Server),support 10 visitors in the same time(MAX) |
Mobile Client | Support iPhone、iPad、Android |
Temperature | -30℃ - +60℃ |
Humidity | 0% - 90% |
Power | DC12V-110mA /Built-in POE |
power | 1.5W |
size | 42* 40*10mm (without lens) |
Weight | 17g |
