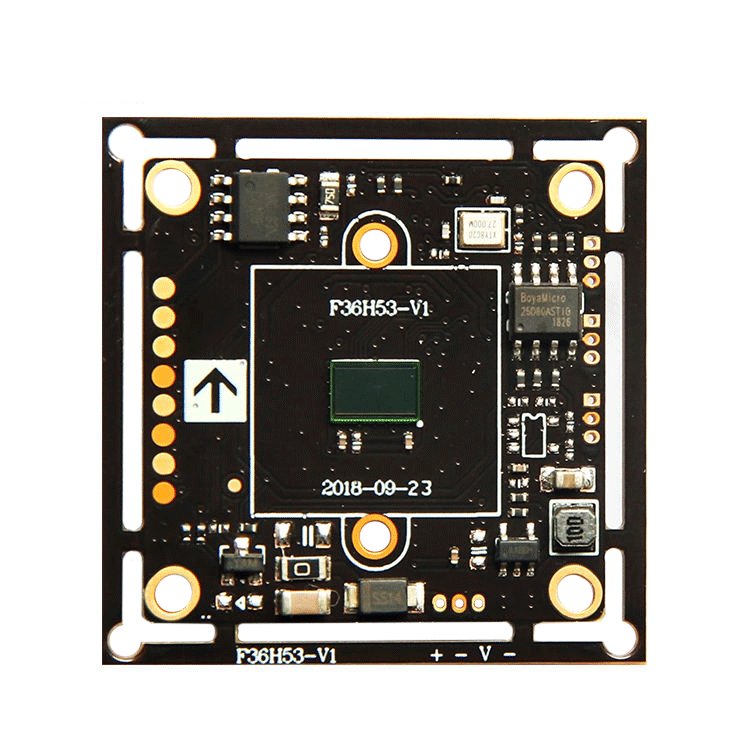

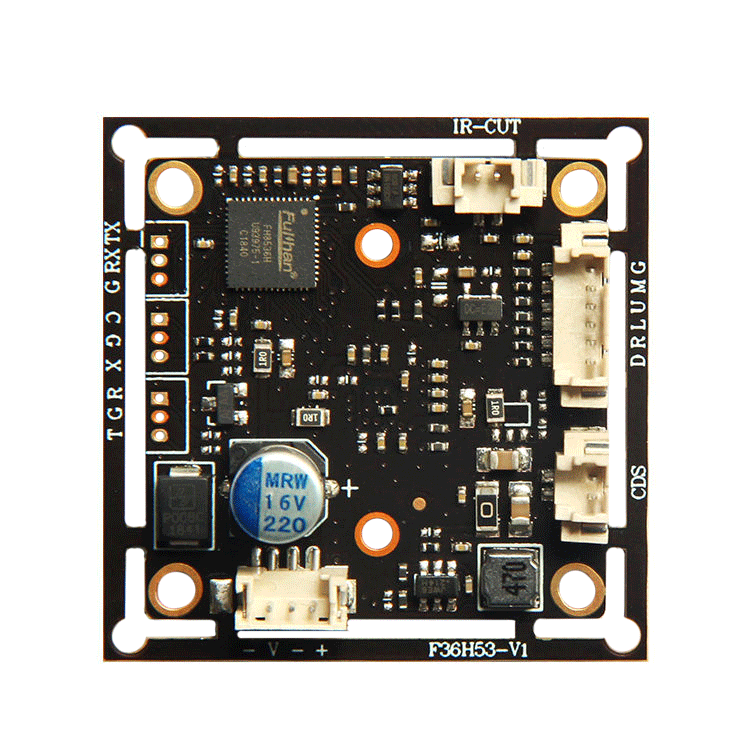

2MP PCB Board CCTV Camera Module Support AHD/TVI/CVI 4 IN 1 HD Camera Module IMX323 Sensor
$6.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | F36H53-V1 |
2MP 4 IN 1 Coaxial HD Camera Module | |
Sensor | 1/2.9" GC2033 |
ISP | FH8536H |
System | PAL/NTSC |
Effective pixels | 1920(H)x1080(V) |
LUX | 0.01Lux@(F1.2,AGC ON),OLUX with IR |
Shutter | AUTO |
D/N | EXIT(Default)/AUTO/Color/B/W |
Synchronously | Internal |
Frame Rate | 1080P/@25fps/1080P@30fps |
Video Output | AHD/TVI/CVI/CVBS switch |
Exposure | Brightness/Exposure Mode/AGC |
WB | AUTO Tracking WB/Manual WB |
D/N | IR/Inter Auto/Color/BW |
Video Setting | Contrast/Sharpness/Saturation/DNR/Video Format/DWDR |
Language | ENGLISH/CHINESE/ESPANOL/FRANCAIS/JAPANESE/Pyccknn/ITALIANO/EAAHNIKA/POLSKI/Portugues/Korean |
Reset | Support |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90% |
Power | DC12V(±20%)-65MA |
Size | 32*32/38*38mm |
