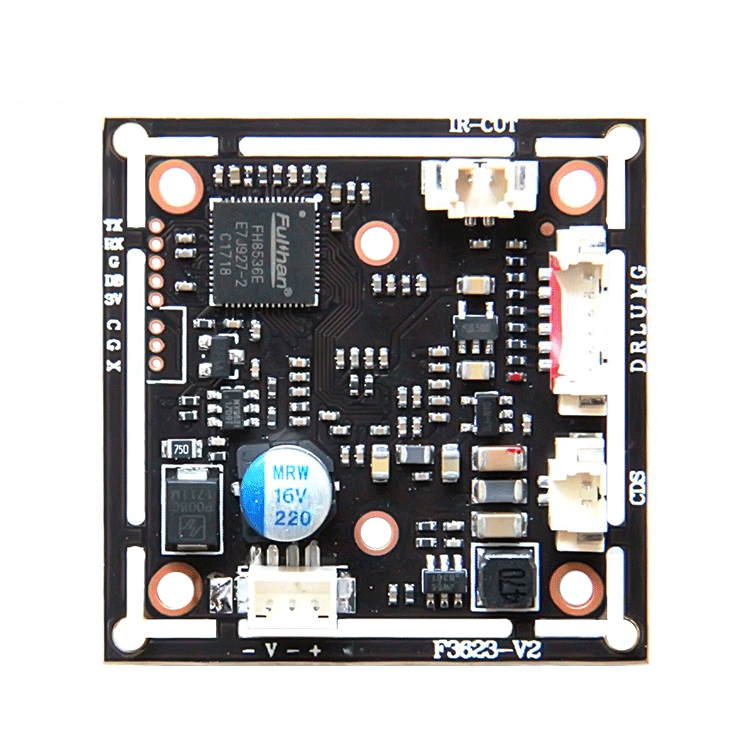

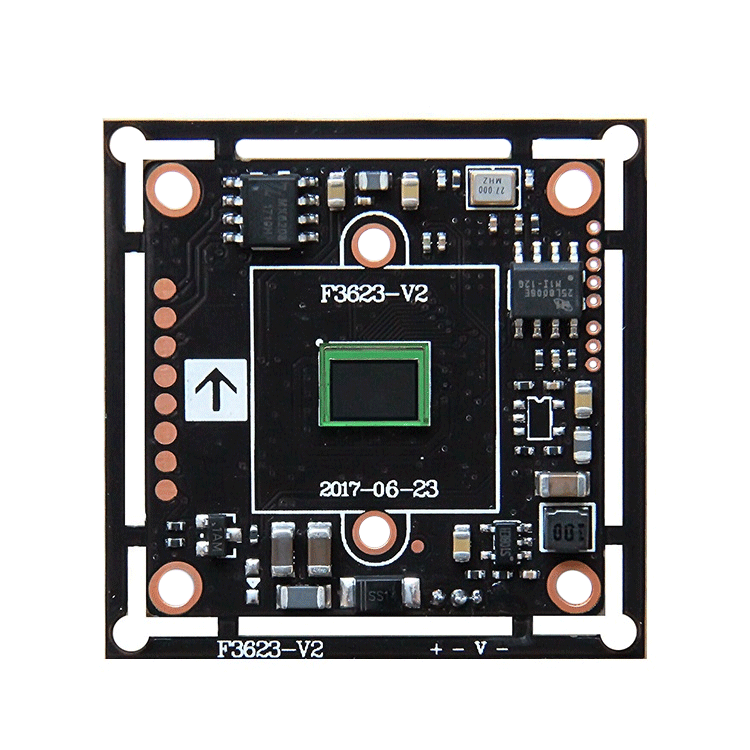

Starlight 2MP AHD Camera Module PCB Board IMX323 Sensor 1080P AHD/TVI/CVI/CVBS Coaxial HD Camera Modules
$5.90
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model No. | F3623-V2 |
Spec. | 2MP 4 IN 1 Coaxial HD Camera Module |
Sensor | 1/2.9＂IMX323+V30E(FH8536H) |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI/CVBS(can be swith) |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR |
Language | ENG/CHN1/ESP/FRA/CHN2/RUS/ITA /POL/POR /KRO |
Reset | Support |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 70mA |
Size | 32*32/38*38（mm) |
