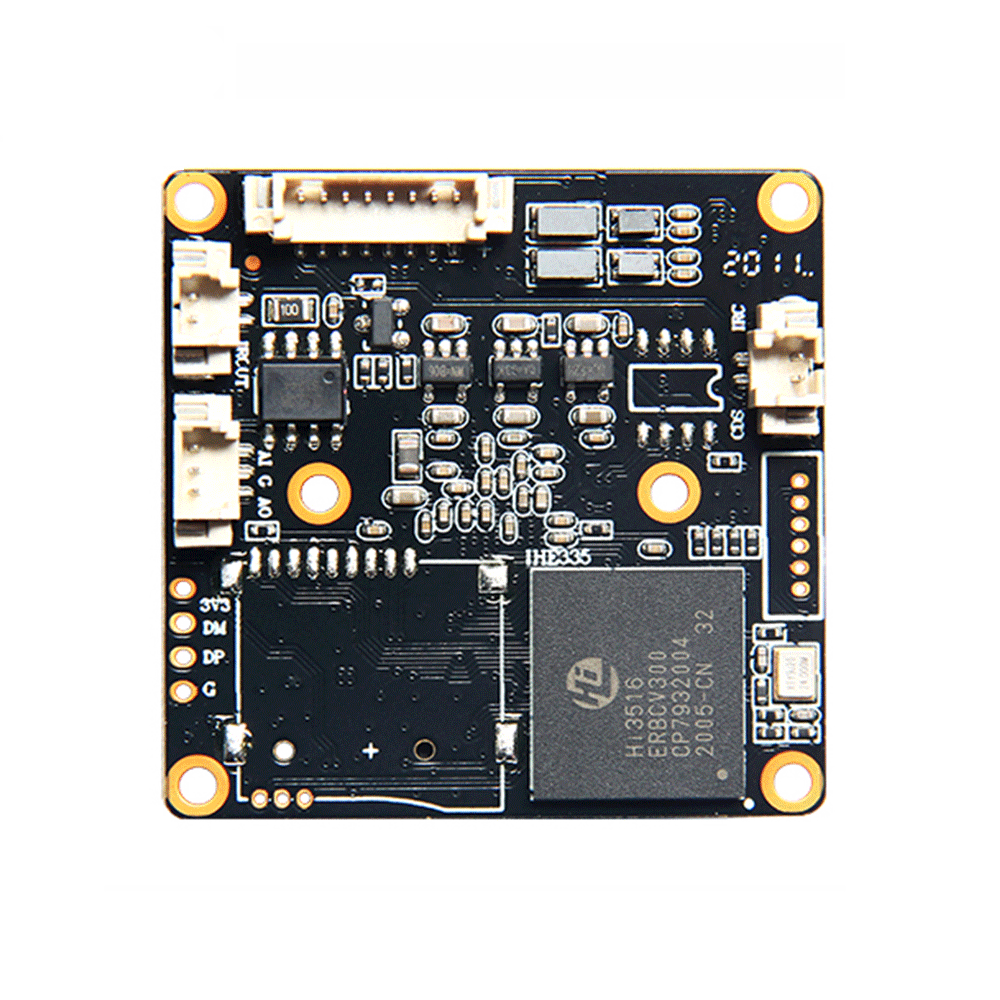

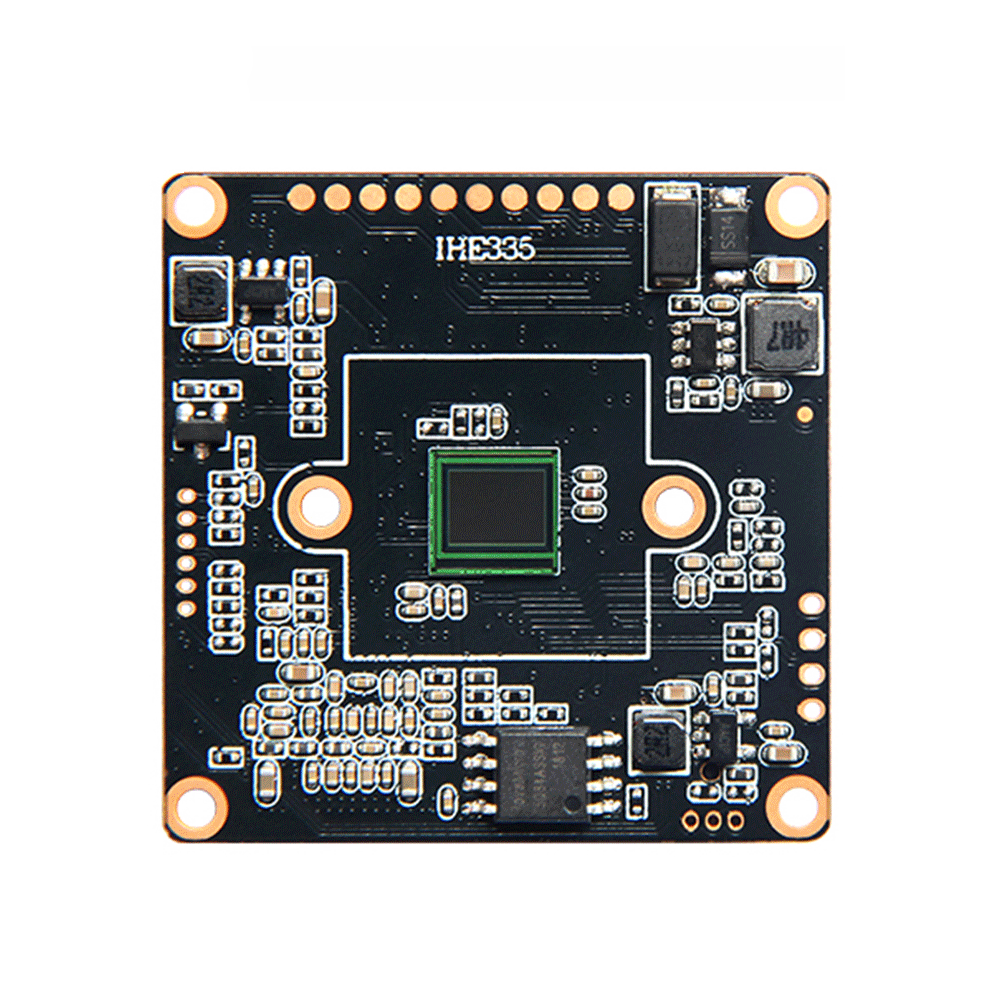

5MP IP Camera Module IMX335 Sensor Camera Board PCB Board CCTV Shenzhen
$8.00
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model No. | IHE335 | |
Sensor | 1/2.8'' SONY IMX335 | |
lllumination | Color 0.05Lux@F1.2;B&W0.05Lux@F1.2 | |
SNR | ≥50db(AGC OFF) | |
WDR | DWDR:>80db | |
Audio Input | 1CH MIC Input/linear input | |
Audio Output | 1CH Audio Output | |
IO Function | 1CH Reset、1CH Alarm input、1CH Alarm output | |
SD Card | Default non-support,TF card slot by extend board optional,Max 128G | |
Coding Format | H.264、H.265 | |
Main Stream | 2592*1944,1-20FPS/S | |
2560*1440、2304*1296、1620*1080、1280*720，1-30FPS/S | ||
Sub Stream | 704*576、640*480、640*360、352*288，1-30FPS/S | |
Video coding Compression | 128Kbps-3072bps continuous adjustable | |
Subtitle Overlay | Support channel name、Date、Four position of character stack is adjustable | |
Date Record | Video,Picture | |
Storage Method | Circular Recording,Alarm Recording | |
Alarm Transfer | Browser,Management Software,IO Output | |
Support Protocol | Default ONVUF 2.6&FULL network protocol | |
PC Browser | Support IE 6.0 and above browser | |
Mobile APP | Support IOS,Android | |
Operation Temperature | -20℃ to +60℃ | |
Humidity | 0%-90% | |
Power Supply | DC12V/POE | |
Consumption | 1..5W | |
Size | 38*38*10mm(without lens) | |
Weight | 0.06KG |
