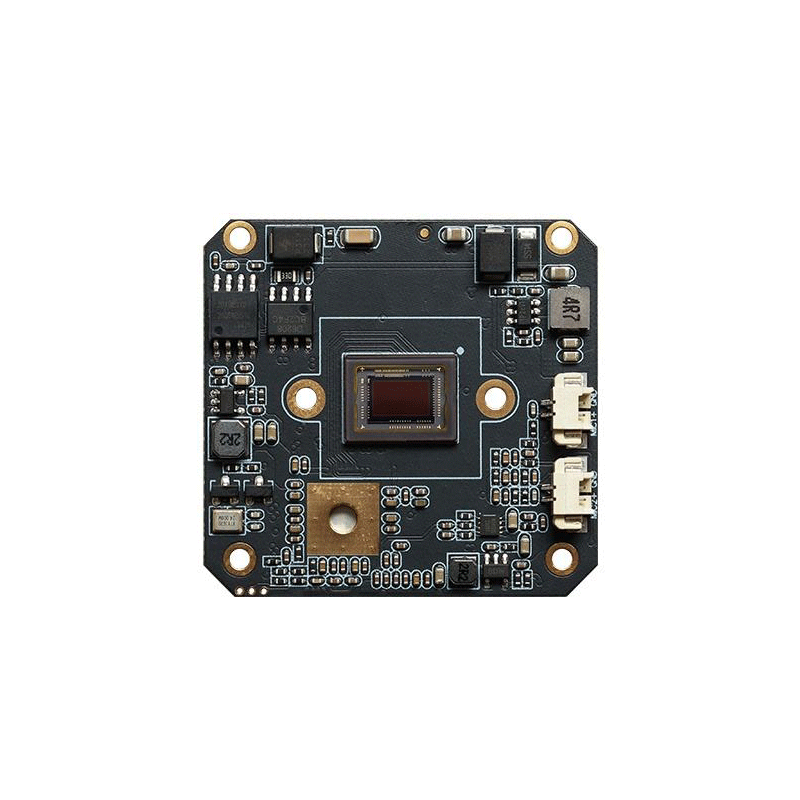

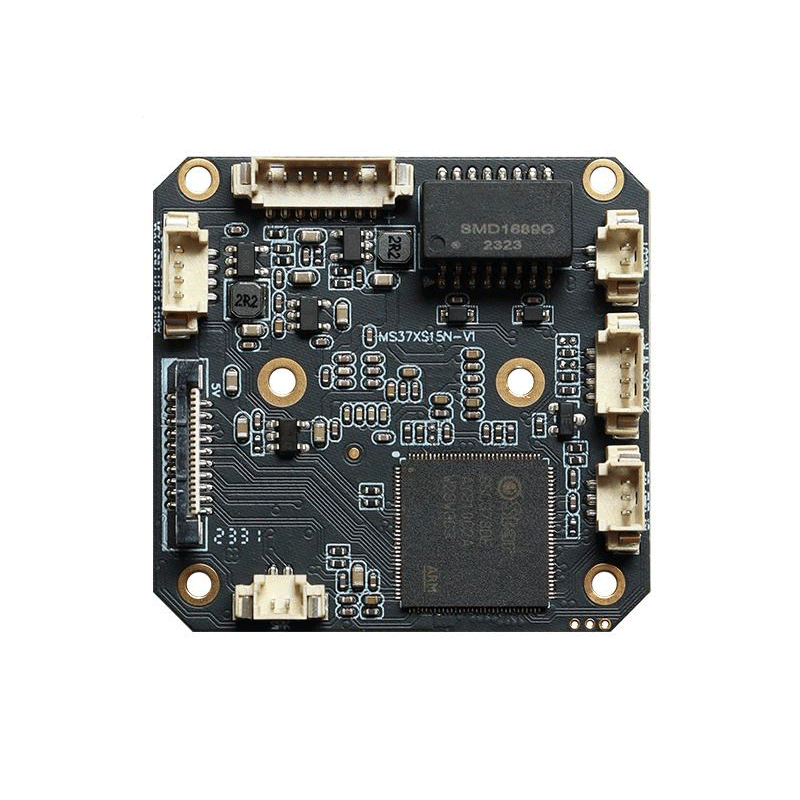

4K 8MP Sony IMX415 IP Camera Board with 30fps Realtime
$20.50
Availability:
In stock
Out of stock
Variations
Product Description
Product DescriptioSpecification
1/2.8" SONY 8MP LOW Lux CMOS sensor with 4K DSP, single dimension with 42mm*40mm.Support IR Led,Warm /White Light, Dual Light.H.265+, H.264 video coding, Support 0.5T Algorithms, and customize multiple algorithms;Support dual stream. Mainstream is3840*2160,Sub-stream is D1,Enabled with ONVIF protocol and NETCOM. | ||
Model No.: | H8D | |
Chip | 1/2.8" SONY 8MP CMOS+4K DSP | |
Lux | Color 0.05Lux@F1.2; Black & White 0.005Lux@F1.2; | |
S/N | ≥50db(AGC OFF) | |
DWDR | DWDR＞80db | |
Audio Input | 2CH MIC Input | |
Audio Output | Speaker output（Max support speaker spec 3W 4Ω ） | |
LED Type | CDS IR LED、White Led、Warm Led （Support PWM） | |
IO Port | IRCUT,1CH RESET, Alarm In, Alarm Out, Reserved Port | |
Other | Extra Motorized Zoom Auto Focus Lens Optional | |
Coding Format | H.265、H.264 | |
Mainstream | 3840*2160， 1-30fps/s | |
2880*1664、2560*1440、2304*1296、1920*1080、1280*720，1-30fps/s | ||
Sub-stream | 704*576、800*448、640*480、640*360、352*288，1-30fps/s | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | Support Channel Name, Date & Time, Resolution & 4 lines characters adding | |
Data Record | Video,picture | |
Storage Method | Cycling Recording, Alarm Recording | |
Alarm Transfer | browser, management software,IO Output | |
Protocol | ONVIF | |
Browser | Support IE6.0 and above browser(Internet Web Server) | |
Mobile | Support IOS、Android | |
Product Description
Specification

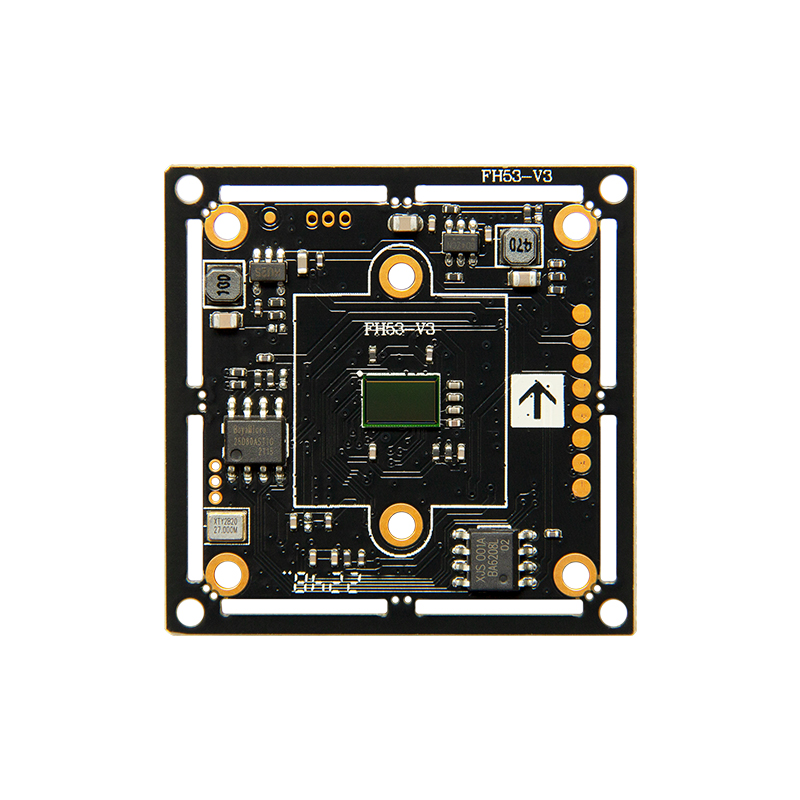

Model No. | FH53-V3 |
Module | Fullhan 2K DSP+1/2.9" 2MP CMOS |
Sensor | 1/2.9＂GC2053 |
DSP | FH8536H |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI/CVBS |
OSD Menu | |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR |
Language | ENG/CHN1/ESP/FRA/CHN2/ RUS/ITA /POL/POR /KRO |
Reset | |
Common | |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 65mA |
Size | 32*32/38*38（mm) |
