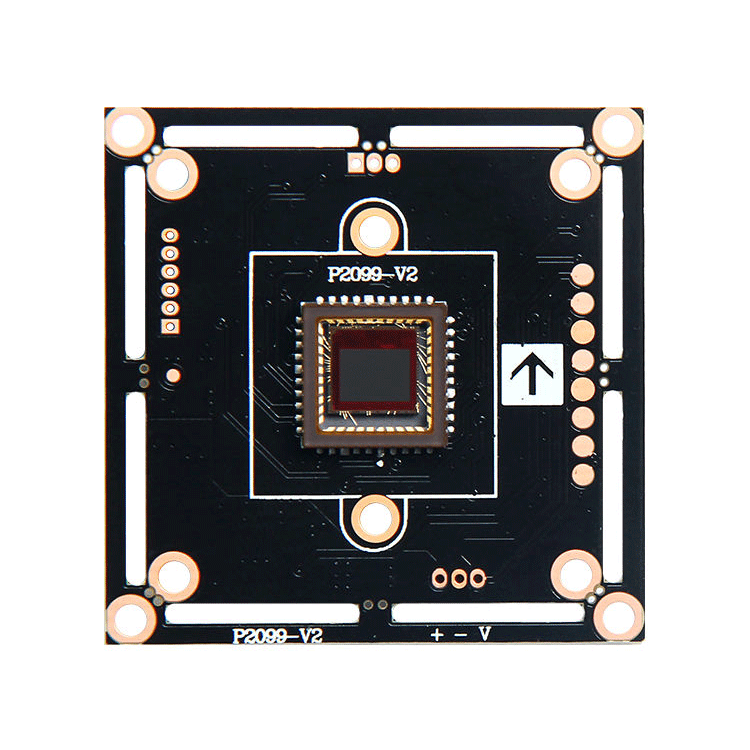

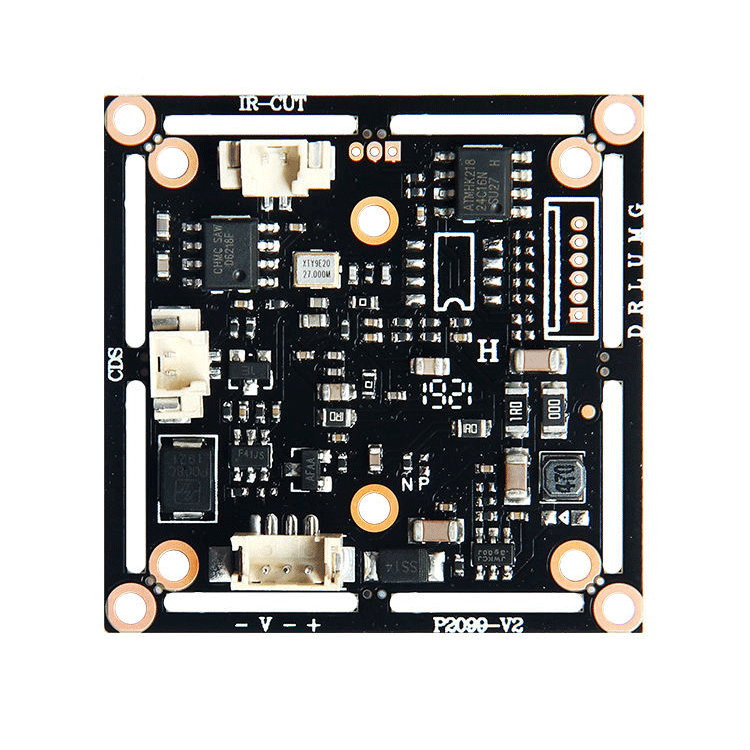

800TVL 1/3 color CMOS Analog CCTV Board Camera
$4.70
Availability:
In stock
Out of stock
Variations
Product Description
Features:
I. 1/3” color CCTV board camera
II. Model No. : P2099-V2
III. Main Feature
1. Color CCTV board camera
2. Excellent performance, clear and bright picture
3. Dimension (L×W×H):38×38×9mm
Specifications:
Sensor | 1/3 PC2099 CMOS | |
System | PAL | NTSC |
Effective Pixel | PAL:720(H)×576(V) | NTSC:720(H)×480(V) |
illumination | 0.1 LUX / F1.2 | |
Resolution | 700TVL | |
Scanning System | 50Hz 60Hz | |
Gama | 0.45 | |
Electronic Shutter | 1/50~1/100000s | 1/60~1/100000s |
S/N | >46dB | |
Video Output | 1.0V p-p | |
Operation Temperature | -20 º C TO 50 º C | |
Working Humidity | Relative humidity less than 95% | |
Power | DC12V (±10%) | |
