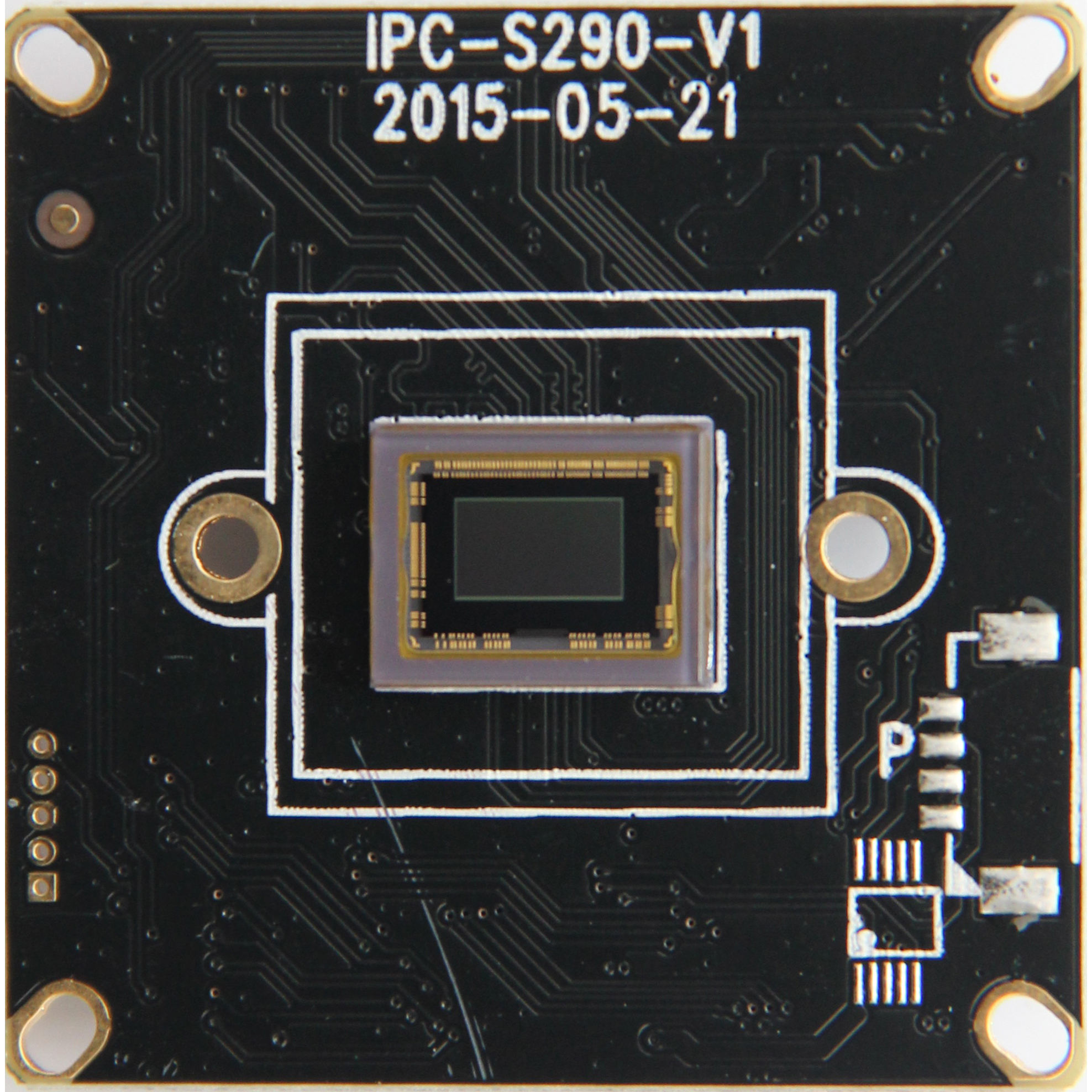

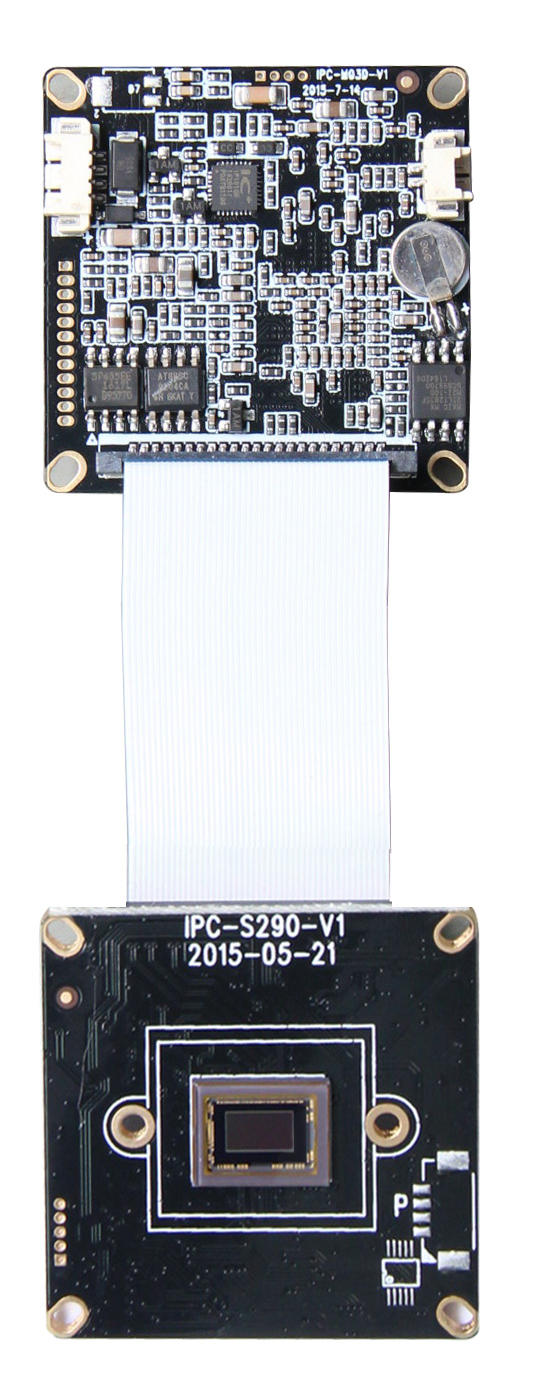

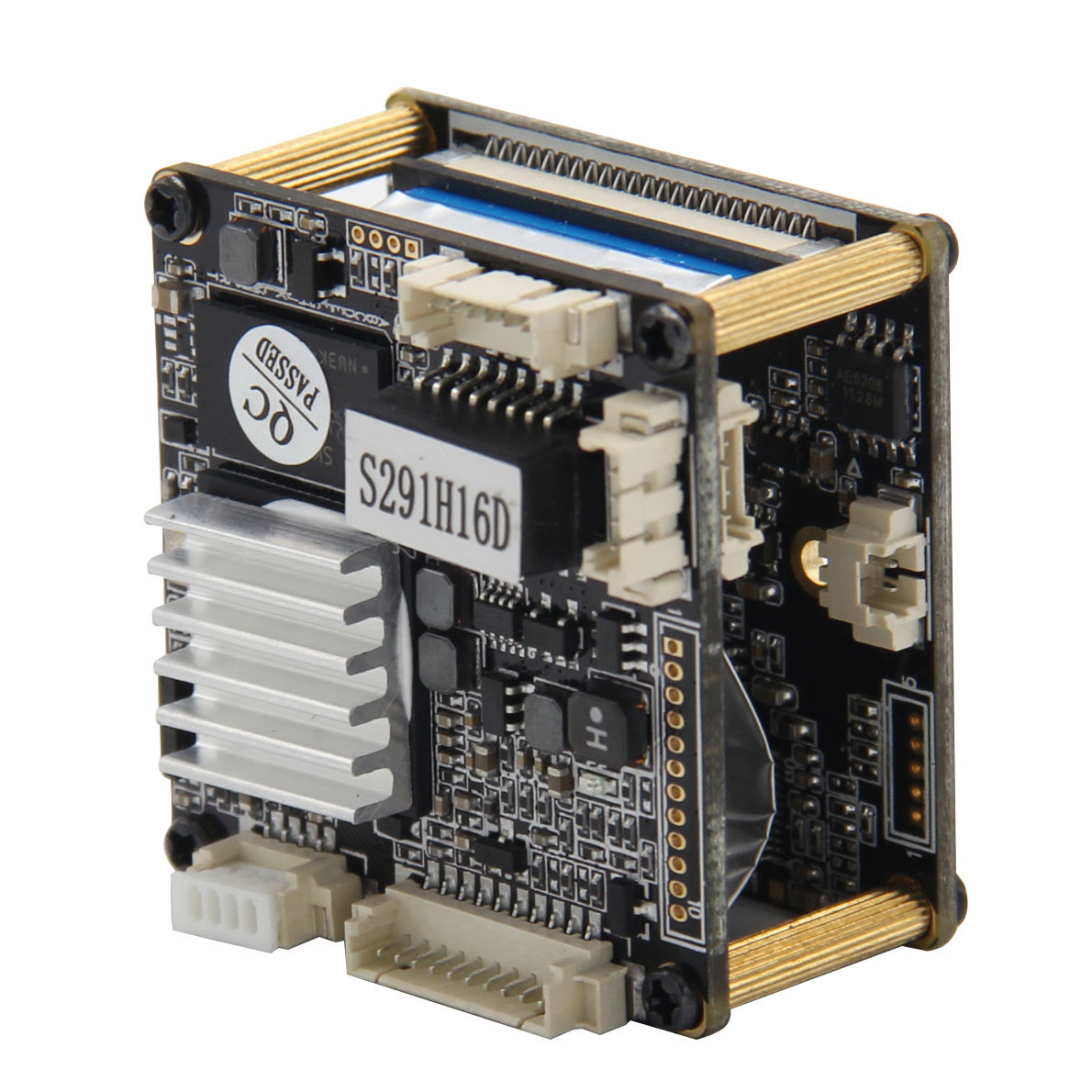

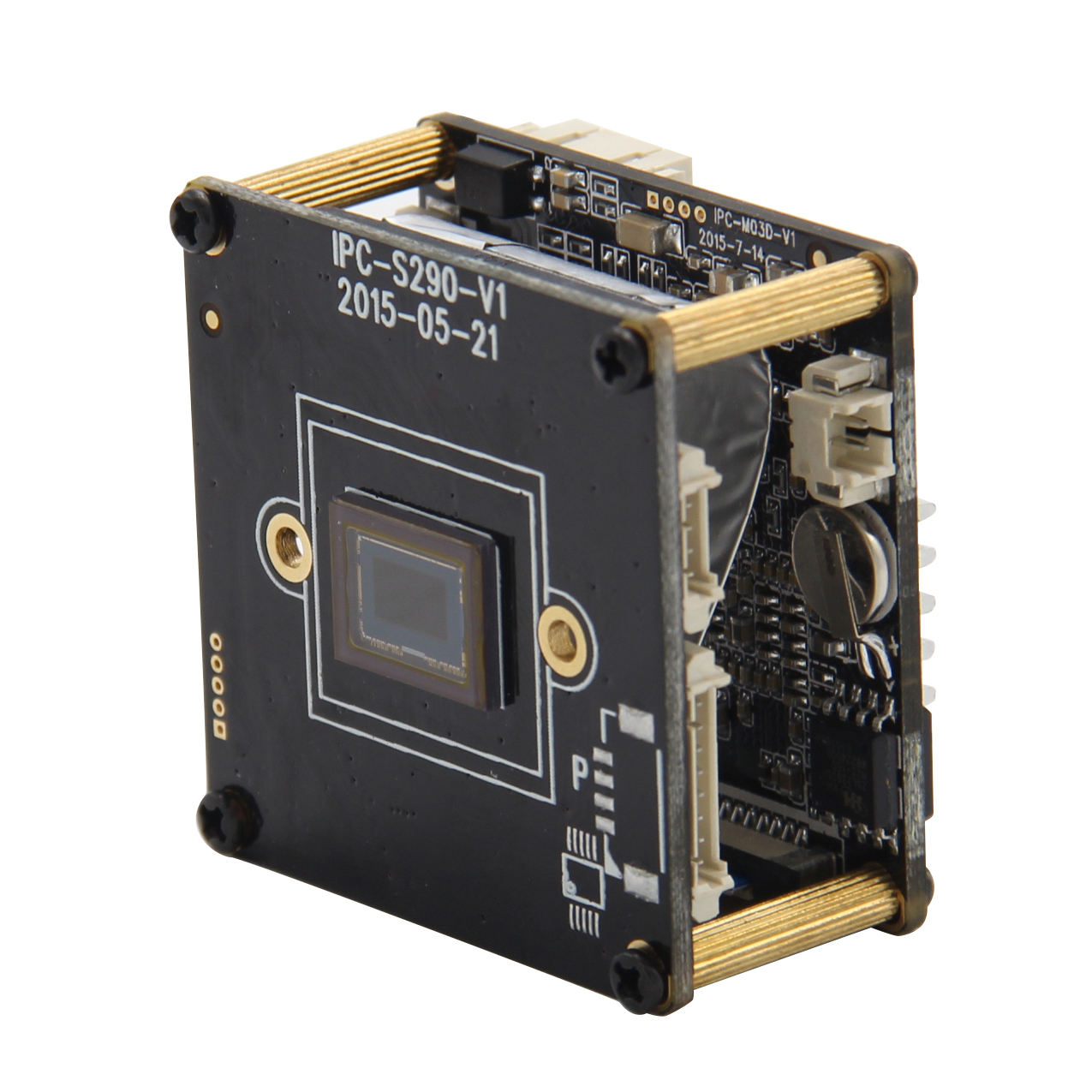

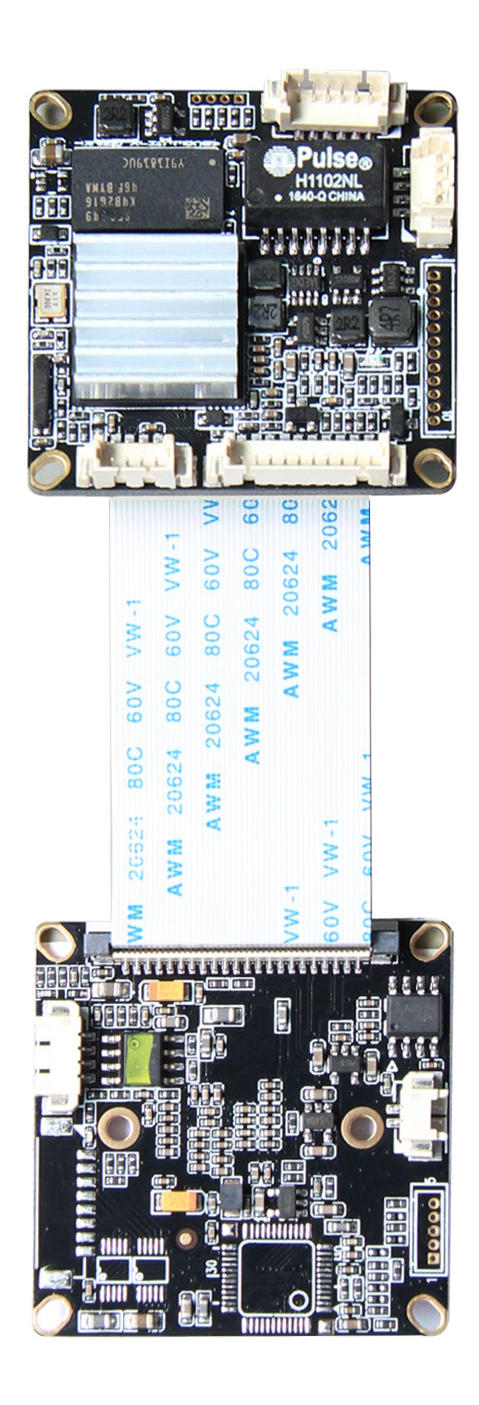

2MP WDR H.264 and H.265 Starlight IP Camera Board Support Triple Stream

$47.50

Availability:

In stock

Out of stock

SKU

200872

Product Description

Hardware
Module		Hi3516D,1/2.8” SONY 290 COMS snesor
LUX		Color 0.001LuxF1.2
S/N		≥50dB(AGC OFF)
WDR		WDR ;>120db
port
Audio/Talk		1CH Audio MIC input/linear input
Audio output		Support 1CH audio output
Cvbs output		Support 1CH CVBS output
I/O input/output		Suppot 1CH alarm input,1CH alarm output
IO function port		1CH reset(optional: reset,alarm input,alarm output)
RS485		Support one RS485 port
USB port		Support 1 USB port,support a 64G USB,support WIFI
Video coding
Coding form		H264,Baseline/Main Profile/High Profile Coding;H.265 Main Profile Coding
		MJPEG
Resolution	Main steam	1920*1080,1-25(30)FPS
		1280*720,1-25(30)FPS
	Sub steam	704576,1-25(30)FPS 640480,1-25(30)FPS
		640352,1-25(30)FPS 320240,1-25(30)FPS
		32Kbps-16Mbps continuous adjustable,support CBR/VBRs-1
Subtitle overlay		Support channel name,Date,Code stream information overlay,Overlay place adjustable
Data transmission &storage
Data record		Video,picture
Storage method		Manual,auto(cycle,fixed time,alarm switch,motion detection)
Alarm data transport		FTP,E-mail, browse, management software
Protocol support		TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
Wireless Protocol		802.11b/g/n,support WEP,WPA,WPA2 encrypt protocol
ONVIF		ONVIF2.4
Browser		Support IE6.0 and above browser(insert Web Server),support 10 visitors in the same time(MAX)
Mobile client		Support Windows Mobile,iPhone,iPad,Android
General parameters
Supply power		DC12V 1A/POE( External POE module )
power		3W(MAX)
Size		38(L) * 38(W) *20(H)mm(without lens )
IR-CUT hole		22mm
weight		0.15kg
