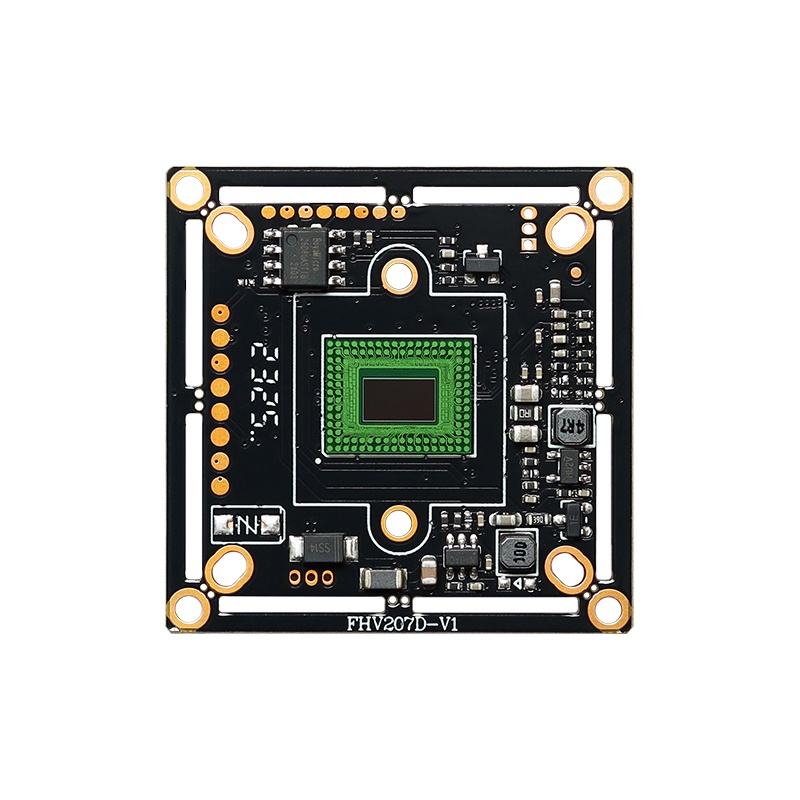

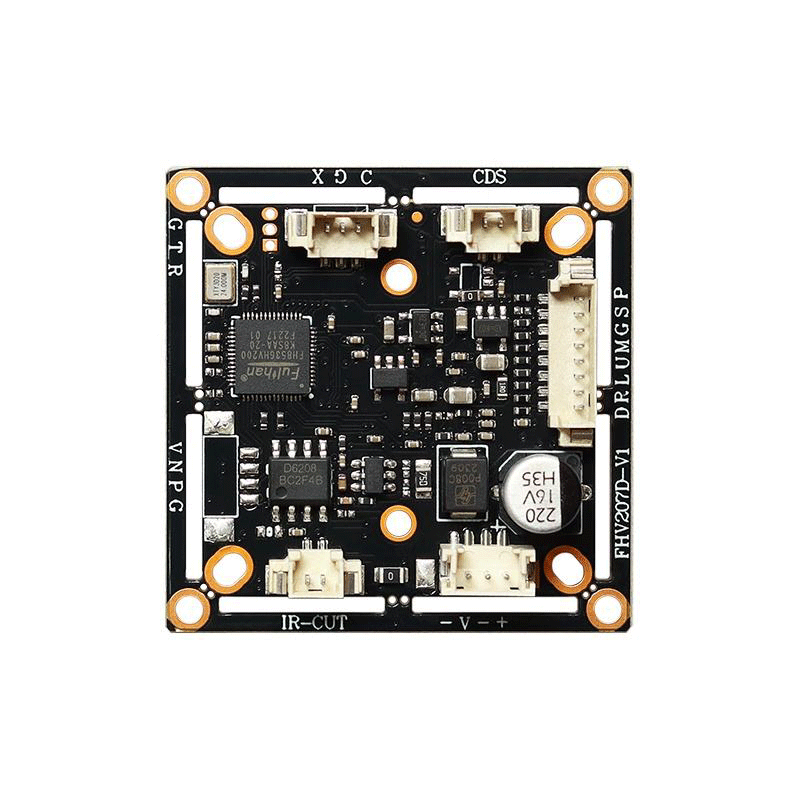

2MP 1080P 4IN1 AHD/TVI/CVI/CVBS Warm Light Camera Board with Low Lux
$3.90
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | V21 |
Module | 2MP 4 IN 1 HD Camera Module |
Sensor | 1/2.8＂ CMOS |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | 11080P:1920(H)x1080(V)25fps / 30fps 720P:1280(H)x720(V)25fps / 30fps CVBS: 25fps / 30fps |
Video output | AHD/TVI/CVI/CVBS |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR |
Language | ENG/CHN1/ESP/FRA/CHN2/ RUS/ITA /POL/POR /KRO |
Reset | |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 70mA |
Size | 32*32/38*38（mm) |
