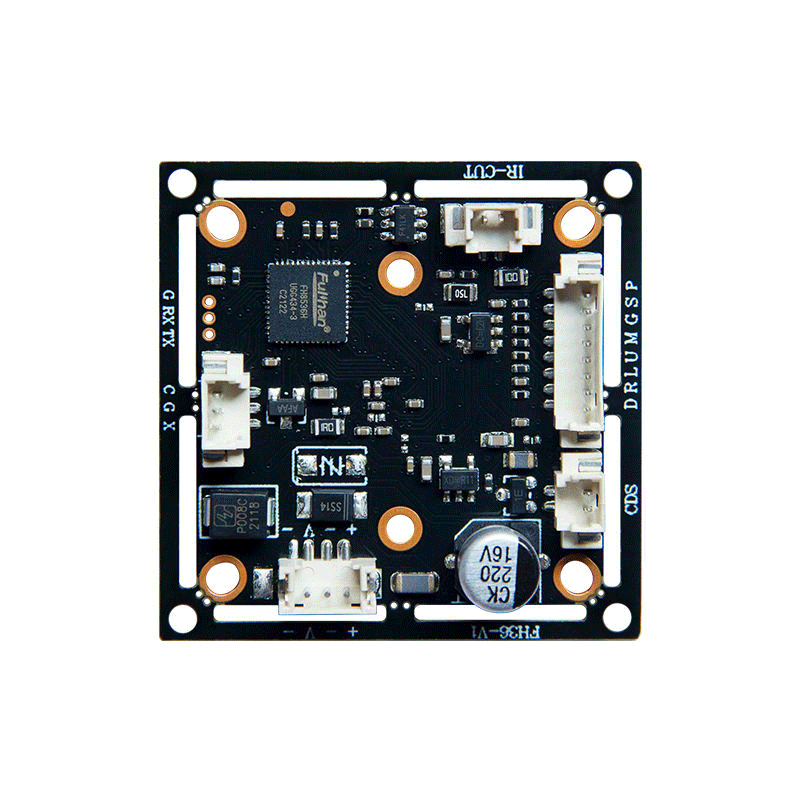

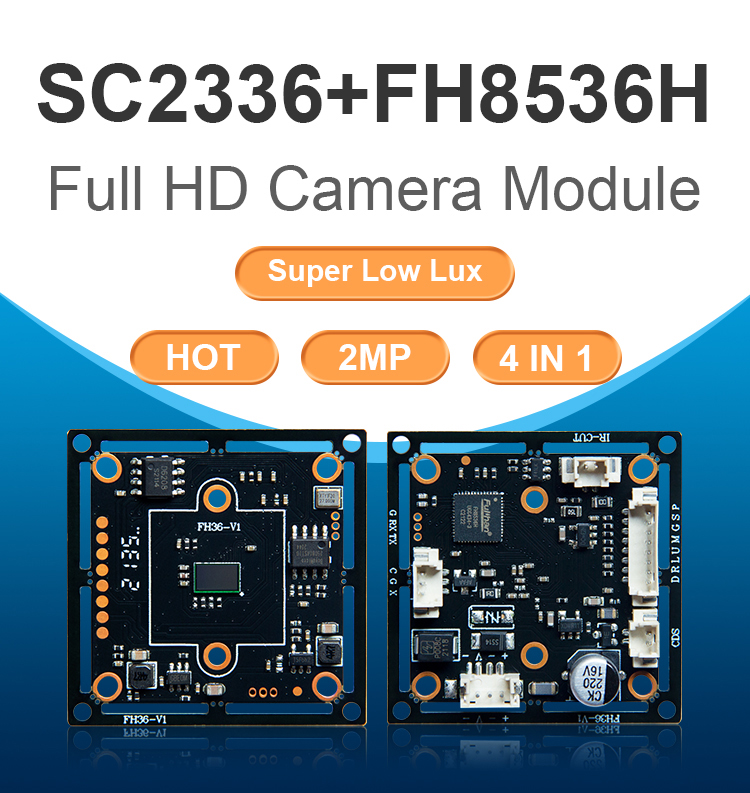

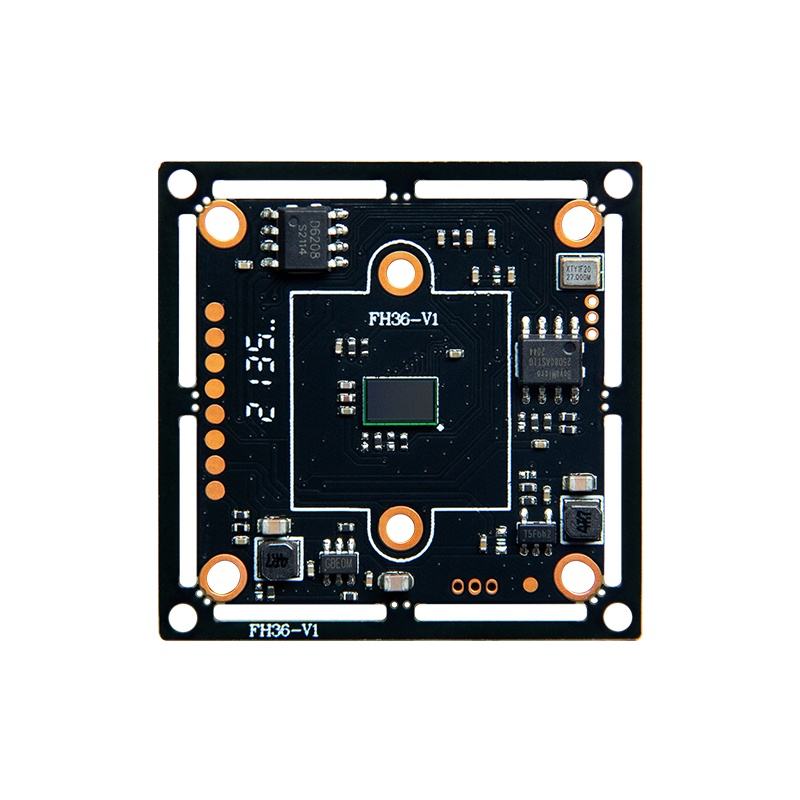

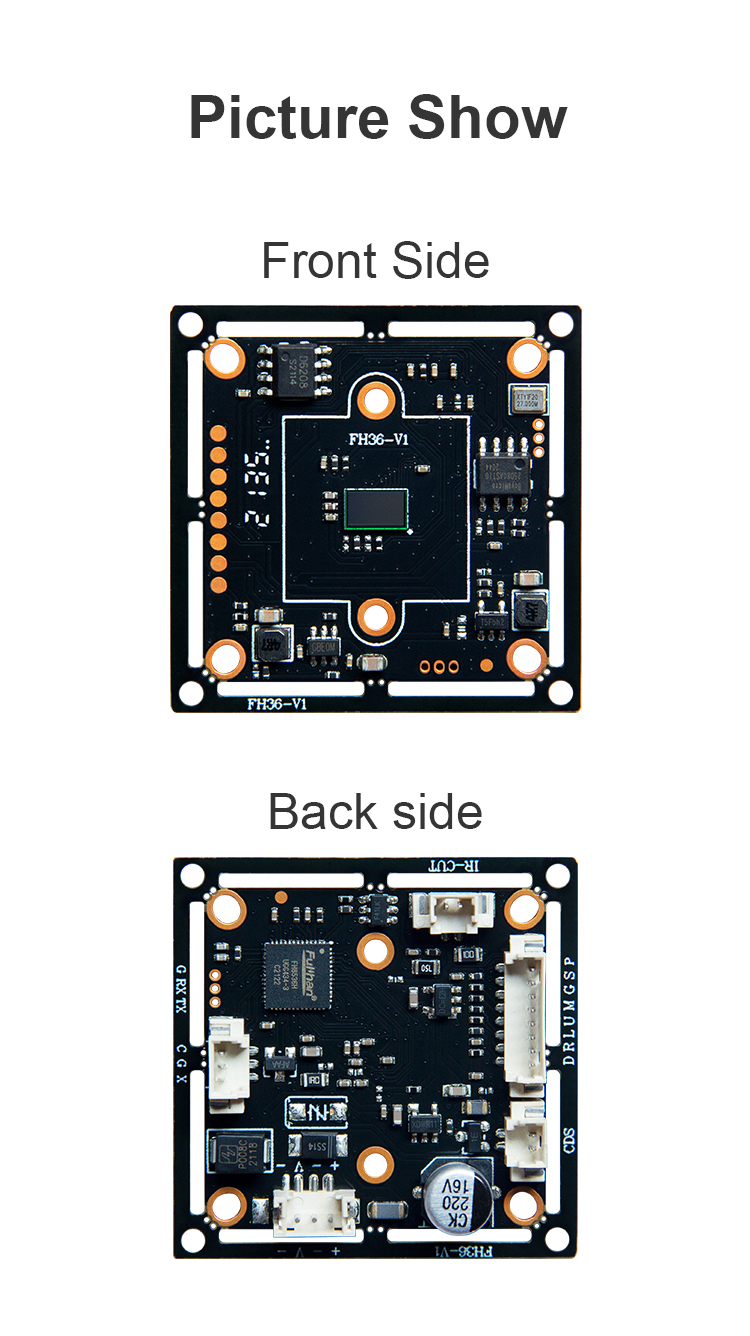

1080P Full HD CMOS 4 in 1 AHD TVI CVI CVBS Camera Board Module 32*32cm 38*38mm Board Size
$4.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model | FH36-V1 |
Sensor | 1/3＂SC2336 |
ISP | FH8536H |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI/CVBS optional |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
White Balance | ATW/MWB |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Video Setting | Contrast/Sharpness/Color Gain /DNR/Video Format/DWDR |
Language | ENG/CHN1/ESP/FRA/CHN2/RUS/ITA /POL/POR /KRO |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 65MA |

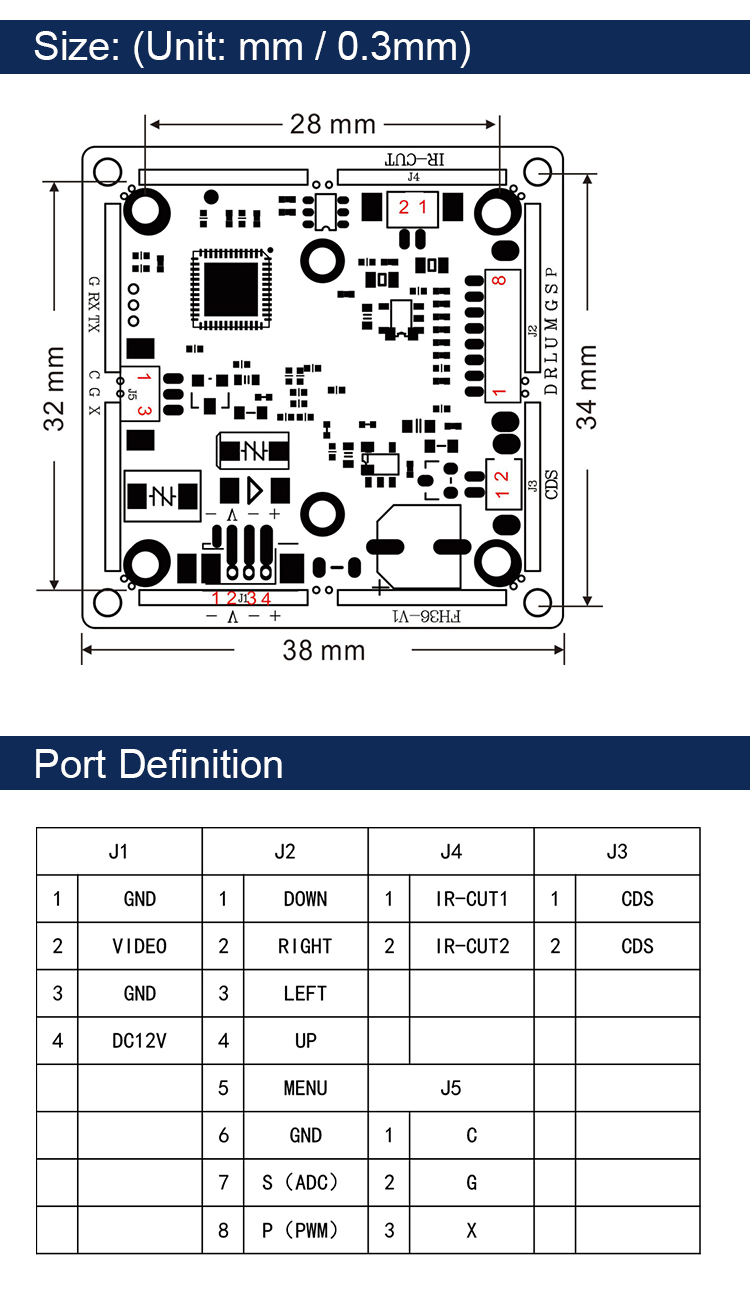

Size | 32*32/38*38（mm） |
