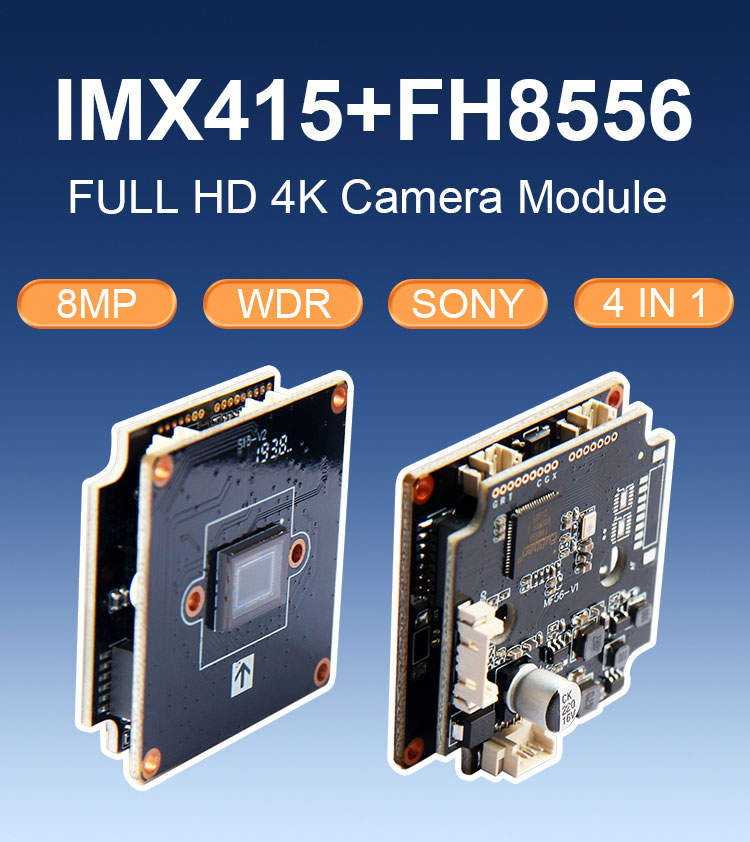

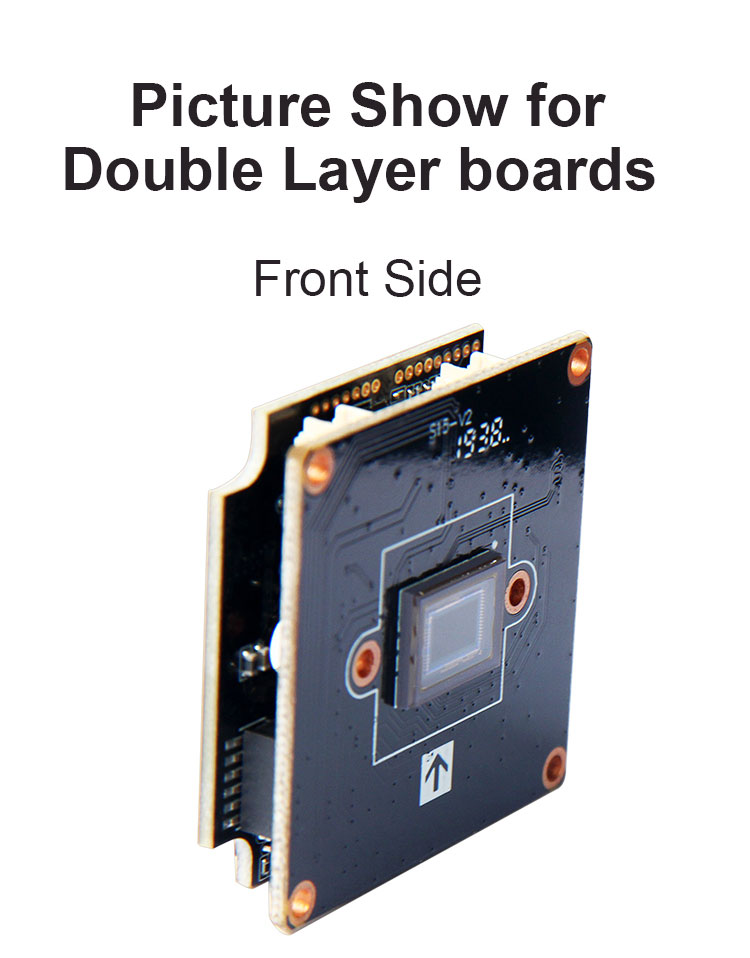

SONY 4K 8MP Double Layer IMX415 CCTV Camera PCB Board
$16.40
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | F5615-V1 | |
Spec. | 8MP 4 in 1 4K camera module | |
Detail Specifications | ||
Sensor/DSP | 1/2.8＂ IMX415+FH8556 | |
System | PAL/NTSC | |
Effective Pixel | 3480(H)x2160(V) | |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR | |
Shutter | AUTO | |
D/N | EXT（Default）/AUTO/COLOR/B/W | |
Synchronously | Internal | |
FPS | 8MP PAL:12.5fps / NTSC:15fps | |
Video output | AHD/TVI/CVI/CVBS | |
OSD Menu | ||
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN | |
BW | ATW/MWB | |
D/N MODE | Infrared/Internal AUTO/COLOR/B&W | |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/WDR | |
Language | ENGLISH/CHN1/ESPANOL/CHN2/RUS/FRANCAIS/POLSKIM/PORTUGUES/Japanese/ITALIANO/ | |
Reset | ||
Common | ||
Operation Temperature | -20℃ to 60℃ | |
Working Humidity | Relative humidity less than 90 % | |
Power | DC12V(±20%) - 95MA | |

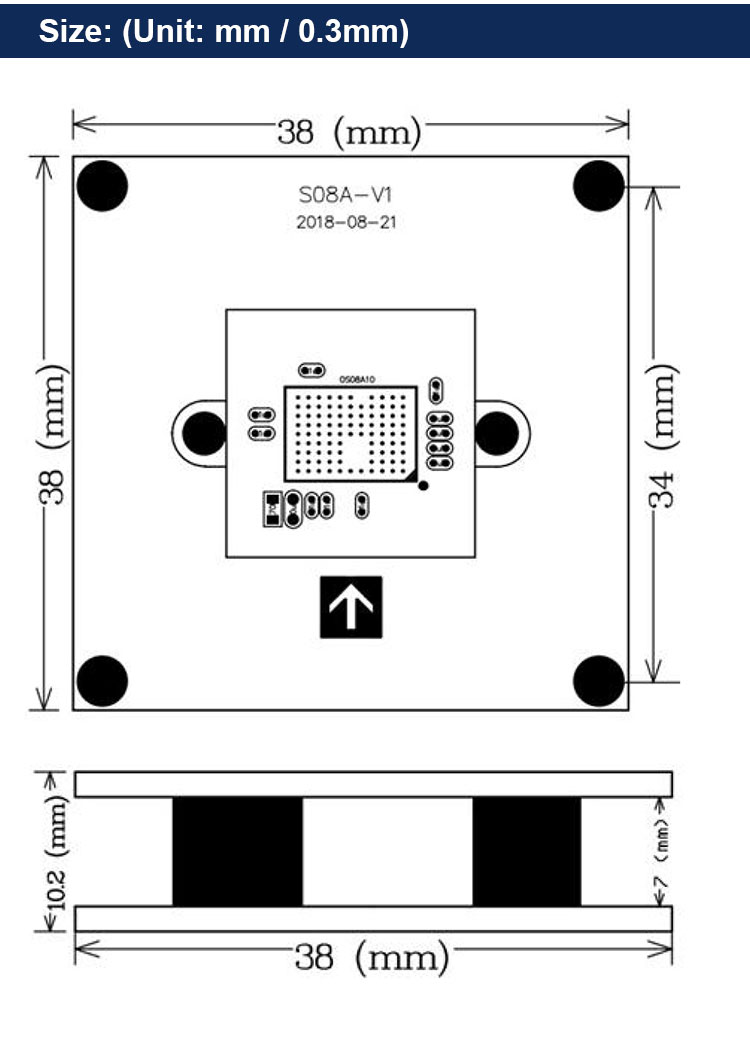

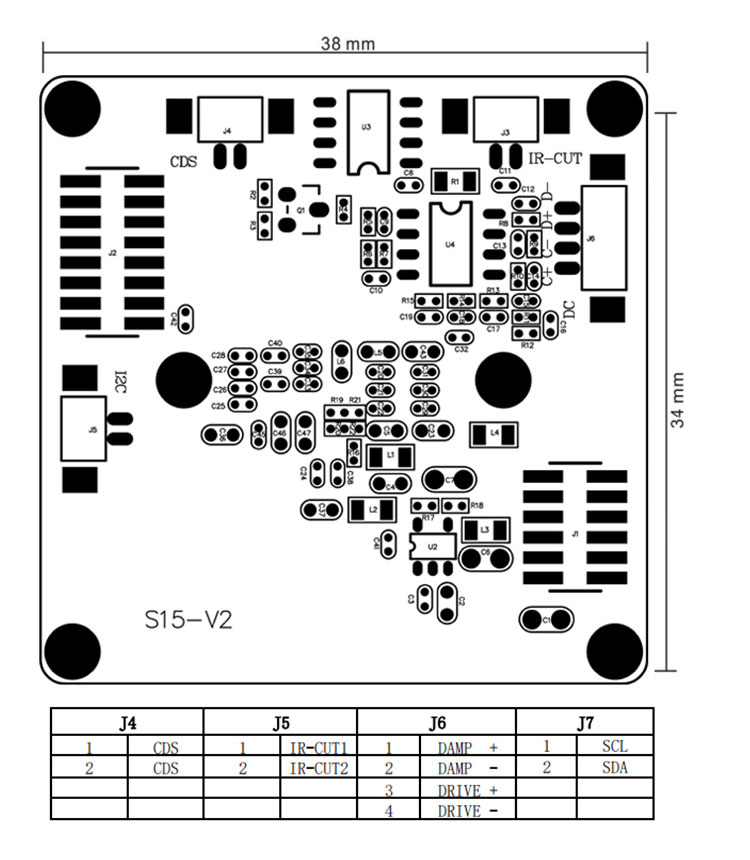

Size | 32*32/38*38（mm） | |
