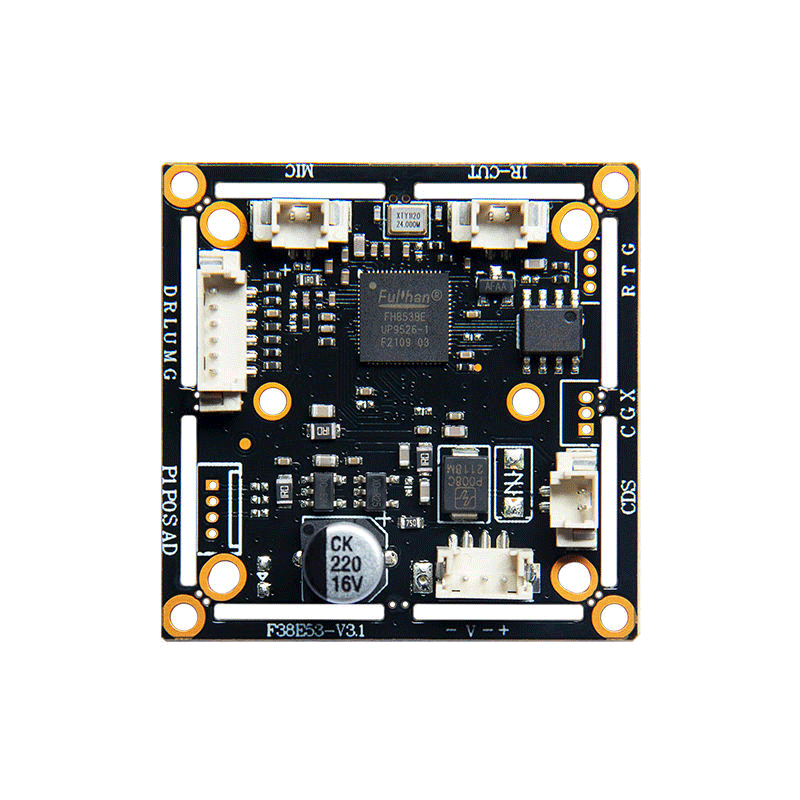

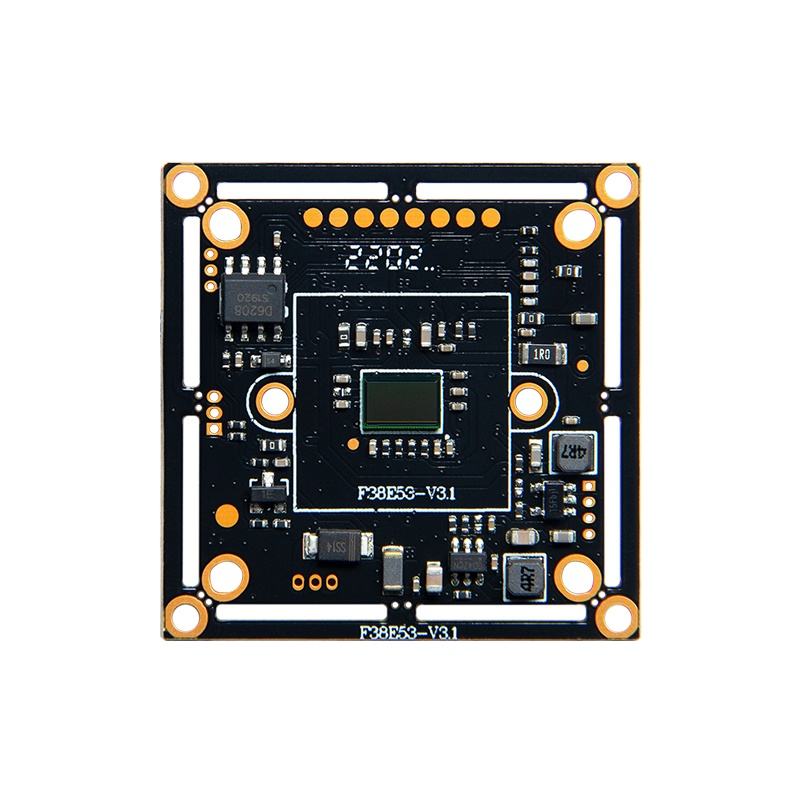

4MP Starlight 0.05Lux Color Vision CCTV Camera PCB Board Security Camera Module
$5.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | F38E53-V3.1 |
Spec. | 4MP 4 in 1 Full HD camera module |
Detail Specifications | |
Sensor/DSP | 1/2.9＂ GC4063+FH8538E |
System | PAL/NTSC |
Effective Pixel | 2560(H)x1440(V) |
Illumination | 0.05Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 4MP@25fps / 4MP@30fps |

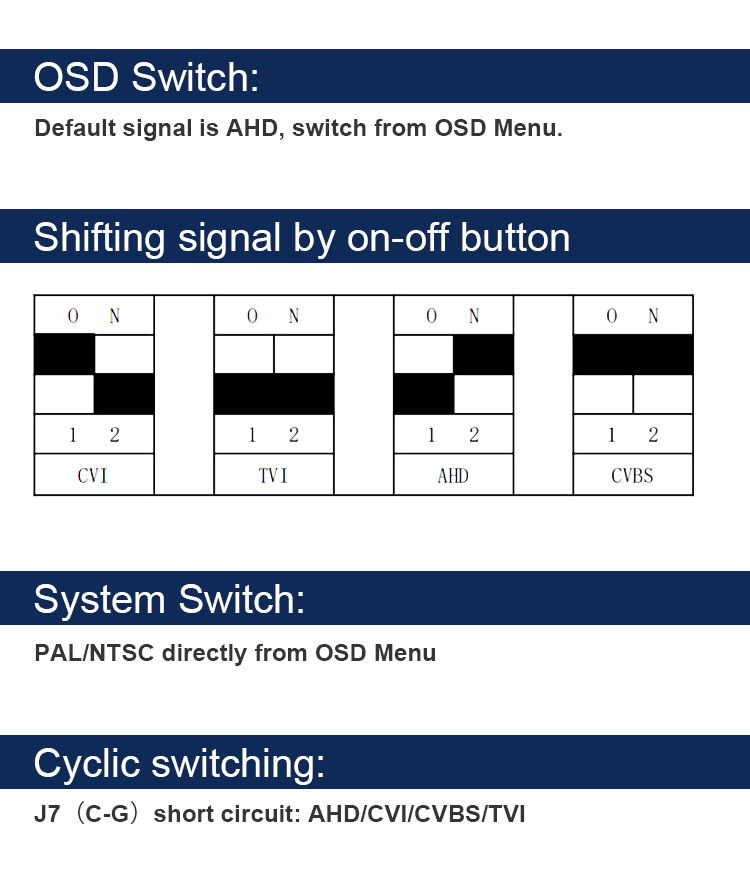

Video output | AHD/TVI/CVI/CVBS switch |
OSD Menu | |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N MODE | Infrared/Internal AUTO/COLOR/B&W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/WDR |
Language | ENGLISH/CHN1/ESPANOL/CHN2/RUS/FRANCAIS/POLSKIM/PORTUGUES/Japanese/ITALIANO/ |
Reset | |
Common | |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 95MA |

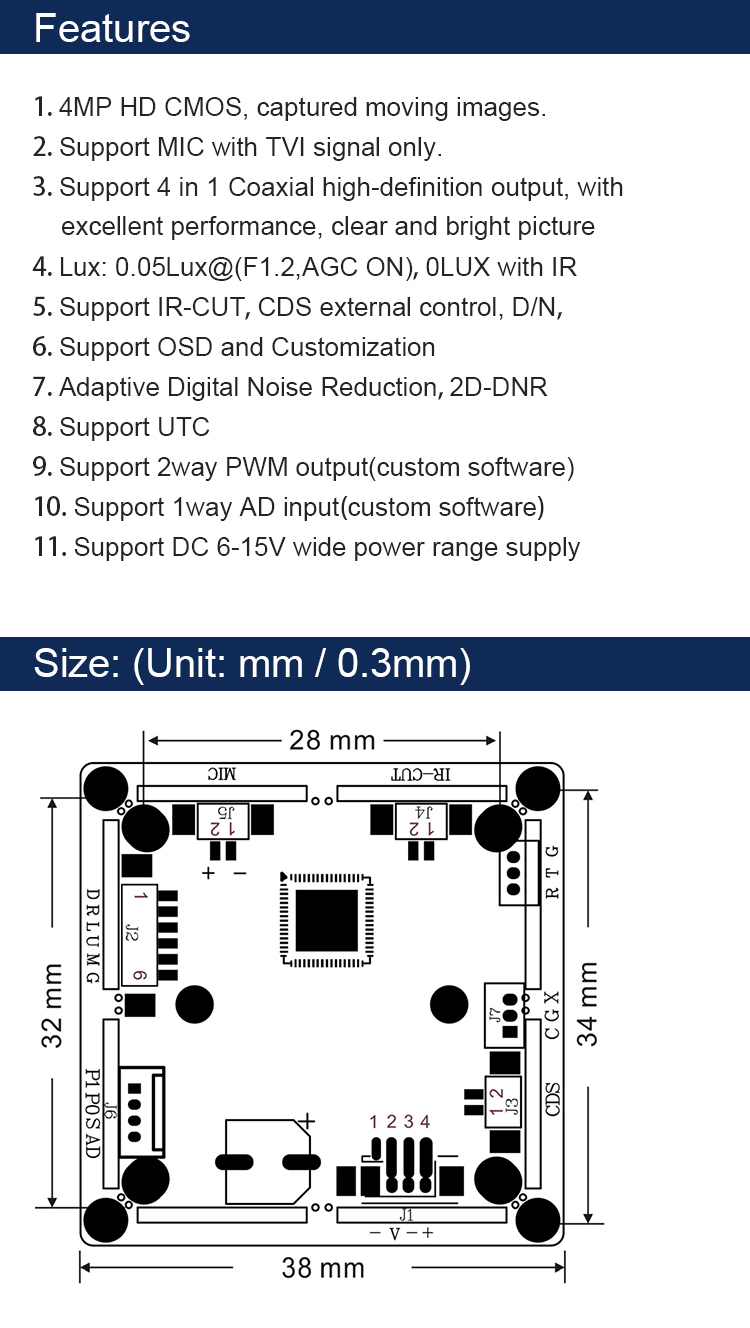

Size | 32*32/38*38（mm） |
