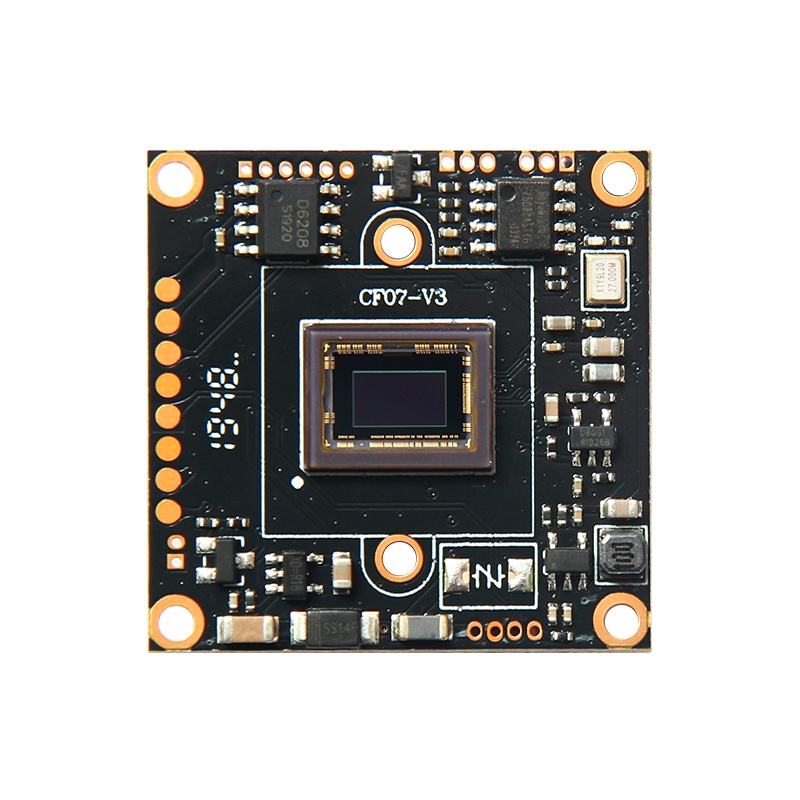

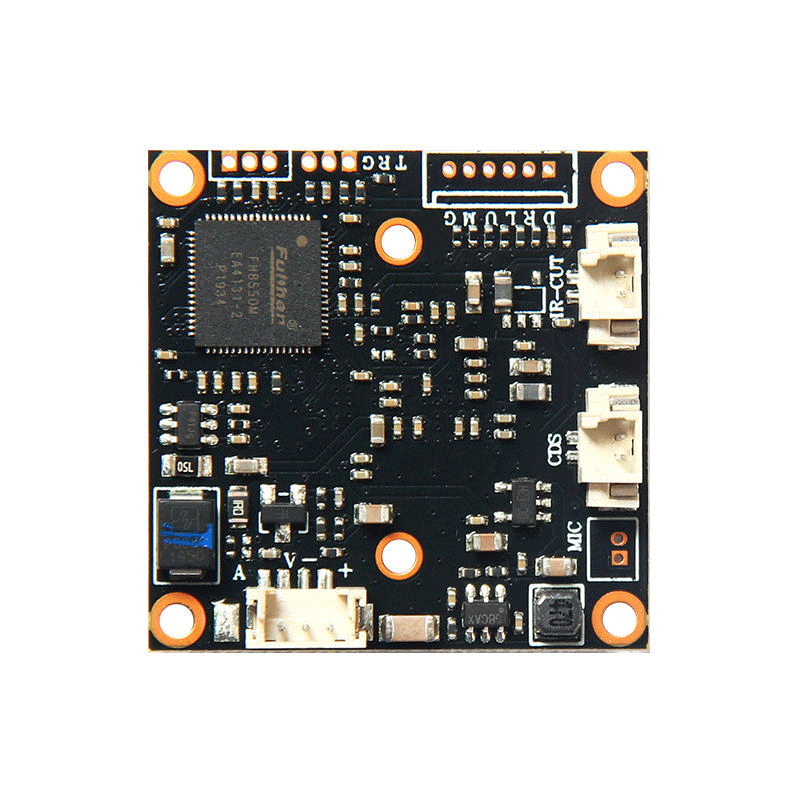

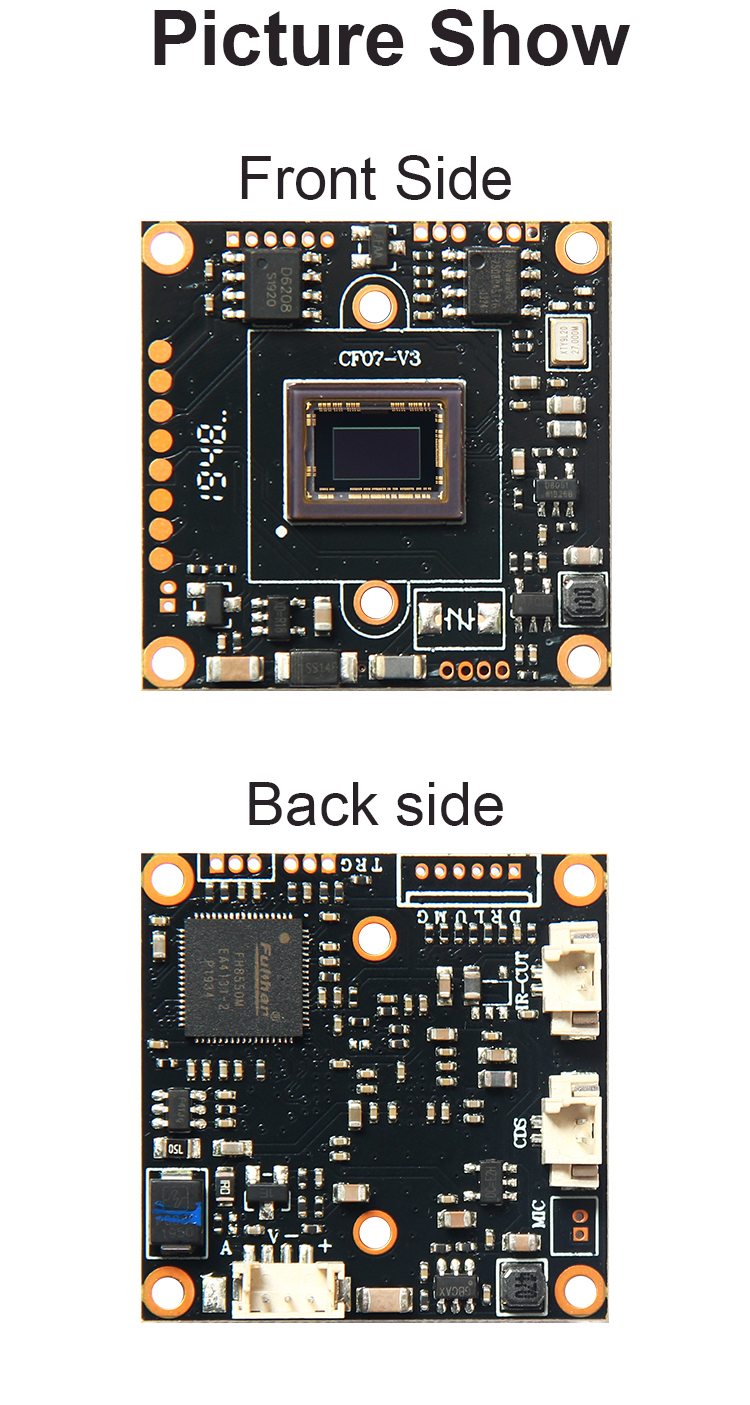

2MP MINI 32*32mm Sony Camera Module 1080P Camera Module WDR With Sony IMX307 Sensor
$9.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model | CF07-V3 |
Spec | 2mp 4 in 1 WDR Coaxial high-definition starlight camera Module |

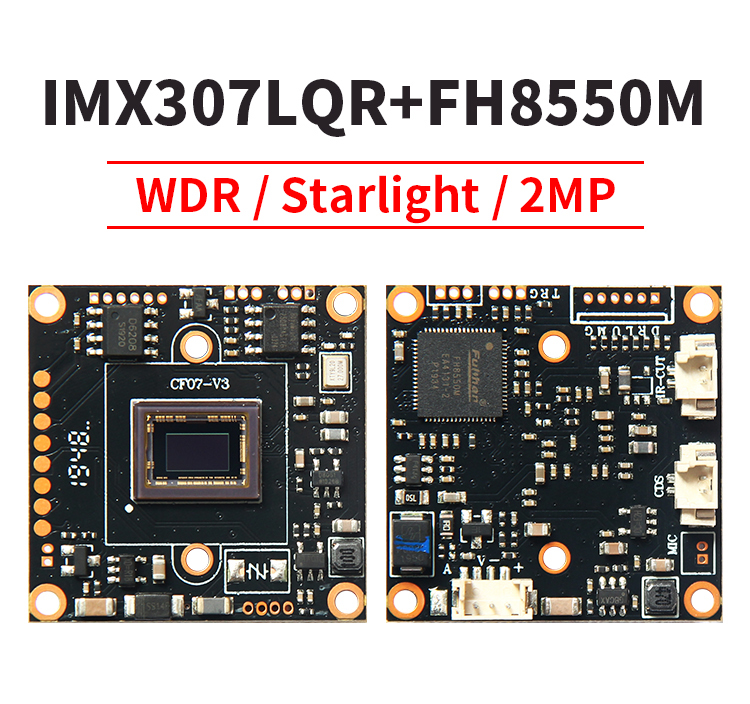

Sensor | 1/2.8＂ IMX307+FH8550M |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.001Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/ B/W |
Synchronously | Internal |
FPS | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI/CVBS (Optional) |
A F | AF MODE/ZOOM/BOOT MODE/TDN AF/ONE KEY FOCUS/LENS INIT/RESET |
Exposure | BLC/Global |
Back-light Mode | OFF/Back-light/HSBLC |
W/B Mode | AWB /Manual |
D/N Mode | Ext/Auto/Color/B&W |
Adjust | Contrast/Sharpness / Saturation /3D-DNR |
Video Setting | Coaxial HD/D-WDR/NTSC&PAL |
Reset | |
Exit | SAVE&END/Reset/Not-save |
Language | CHN1/CHN2/FRA/ITA/SPAN/POL/RUS/POR/ENG |
Working Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity<90 % |
Power | DC12V(±20%) - 90MA |

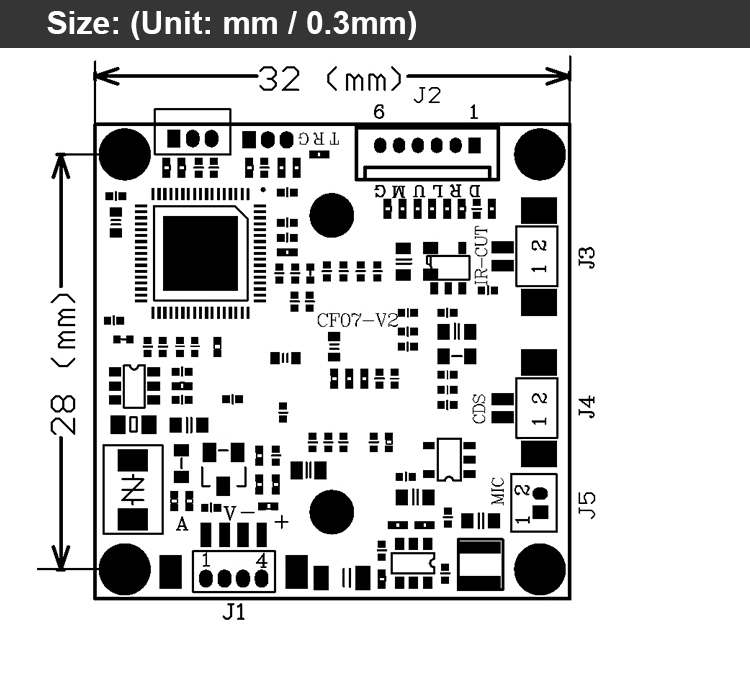

Size | 32*32（mm） |
